| General |
| Comments | - | 5 configurable riding modes. Traction control. Cruise control. Keyless. |
| Year | 2007 | - |
| Colours | - | Sapphire Black, Matte Silver Ice, Baja Orange |

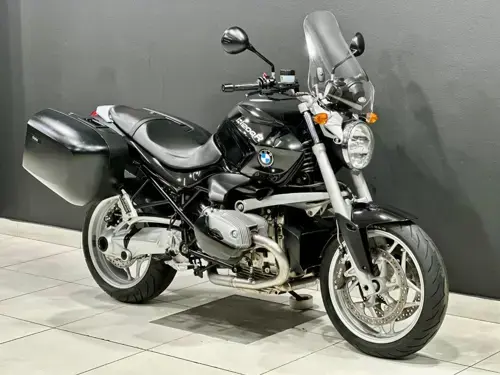

| Make Model | BMW R 1200R | - |
| Dimensions |
| Height (mm) | - | 1089 mm |
| Width (in.) | - | 31.2 inches |
| Width (mm) | - | 792 mm |
| Height (in.) | - | 42.9 inches |
| Length (in.) | 84.4 inches | 80.9 inches |
| Length (mm) | 2,145 mm | 2055 mm |
| Seat Height (in.) | 31.5 inches | 32.7 inches |
| Wheelbase (mm) | 1,495 mm | 1445 mm |
| Seat Height (mm) | 800 mm | 830 mm |
| Wheelbase (in.) | 58.9 inches | 56.9 inches |
| Seat Height | 800 mm / 31.4 in | 830 mm / 32.7 in. |
| Wheelbase | 1495 mm / 59.1 in | 1445 mm / 56.9 in. |
| Height | 1273 mm / 50.1 in (excl. mirrors) | 1089 mm / 42.9 in. |
| Length | 2145 mm / 84.4 in | 2055 mm / 80.9 in. |
| Width | 906 mm / 35.6 in (incl. mirrors) | 792 mm / 31.2 in. |
| Weights & Capacities |
| Wet Weight (lbs.) | - | 436.5 pounds |
| Wet Weight (kg) | - | 198.0 kg |
| Fuel Capacity (gal.) | 4.76 gallons | 4.10 US gallons |
| Oil Capacity (l) | - | 3.80 litres |
| Fuel Capacity (l) | 18.00 litres | 15.50 litres |
| Dry Weight (lbs.) | 436.5 pounds | - |
| Dry Weight (kg) | 198 | - |
| Oil Capacity (Quarts) | - | 4.02 US quarts |
| Dry Weight | 198 kg / 436.5 lbs | - |
| Fuel Capacity | 18 Litres / 4.7 US gal | 15.50 litres / 4.10 US gallons |
| Wet Weight | - | 198.0 kg / 436.5 lbs |
| Performance |
| Top Speed | 219.6 km/h / 136 mph | - |
| Max Power | 80 kW / 109 hp @ 7500 rpm | - |
| Max Torque | 115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm | 124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 9000 Revolutions" |
| Power-to-Weight Ratio | 0.5505 HP/kg | - |
| Standing Start 0-1000 m | 22.6 sec / 213 km/h / 132 mph | - |
| Standing Start ¼ Mile | 11.9 sec / 187.2 km/h / 116.3 mph | - |
| Engine |
| CO2 | - | 149.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel Control | - | Double Overhead Cams/Twin Cam (DOHC) |
| Displacement (ci) | 71.39 cubic inches | 70.78 cubic inches |
| Displacement (cc) | 1170.00 cc | 1160.0 cc |
| Stroke | 4 | - |
| Bore x Stroke (in,) | 4.0 x 2.9 inches | 3.5 x 2.4 inches |
| Bore x Stroke (mm) | 101.0 x 73.0 mm | 90.0 x 60.8 mm |
| Engine Type | Two cylinder boxer | In-line three, four-stroke |
| Displacement | 1170 cc / 71.4 cu in | - |
| Engine Detail | Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder | - |
| Fuel System | Injection. Electronic fuel injection | Injection. Multipoint sequential electronic fuel injection with electronic throttle control |
| Bore x Stroke | 101 x 73 mm | - |
| Compression Ratio | 11.0:1 | 13.2:1 |
| Cooling System | Air/Oil-cooled | - |
| Exhaust | - | Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer |
| Fuel Consumption | 7.2 L/100 km / 13.8 km/l / 32.4 US mpg | 6.43 litres/100 km (15.6 km/l or 36.58 mpg) |
| Fuel Induction | Electronic intake manifold injection BMS-K | - |
| Ignition | Digital engine management | - |
| Starter | Electric | Electric |
| Valve System | - | 4 |
| EV Specifics |
| Battery Capacity | 12 V / 14 Ah, maintenance-free | - |
| Drivetrain |
| Clutch | Single disc dry clutch, hydraulically actuated | Wet. multi-plate, slip |
| Final Drive | Shaft | Chain (final drive) |
| Gear Ratios | 1st 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 0.065 / 5th 0.939 / 6th 0.848 | - |
| Gearbox | 6-speed | 6-speed |
| Primary Drive | - | X-ring chain |
| Transmission / Drive | 6 Speed | - |
| Chassis |
| Wheel Travel - Front (mm) | - | 120 mm |
| Trail (mm) | - | 105 mm |
| Trail (in.) | - | 4.1 inches |
| Wheel Travel - Rear (mm) | - | 120 mm |
| Wheel Travel - Rear (in.) | - | 4.7 inches |
| Wheel Travel - Front (in.) | - | 4.7 inches |
| Frame Type | Tubular steel spaceframe, load-bearing engine | Aluminum twin spar,. bolt-on aluminium rear subframe |
| Suspension - Front | BMW Motorrad Telelever; stanchion diameter 41 mm, central spring strut | Ohlins 43 mm NIX30 upside down forks with adjustable preload, rebound and compression damping |
| Suspension - Rear | Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable | Öhlins TTX36 twin tube monoshock with preload, rebound and compression damping |
| Rake | - | 23.9° |
| Steering Head Angle | 62.9° | - |
| Trail | 119.1 mm / 4.7 in | 105 mm / 4.1 in. |
| Wheel Travel - Front | 120 mm / 4.7 in | 120 mm / 4.7 in. |
| Wheel Travel - Rear | 140 mm / 5.5 in | 120 mm / 4.7 in. |
| Electrical Systems |
| Alternator | Three-phase alternator 720 W | - |
| Instrumentation | - | 5 inch TFT color instruments |
| Lighting system | - | All-LED lighting. with self-cancelling indicators |
| Wheels & Brakes |
| Brakes - Rear Diameter (mm) | 265 mm | - |
| Brakes - Rear Diameter (in.) | 10.4 inches | - |
| Brakes - Front Diameter (mm) | 320 mm | - |
| Brakes - Front Diameter (in.) | 12.6 inches | - |
| Brakes - Front | 2 x 320mm discs, ABS | Double disc. ABS. Floating discs. Brembo. |
| Brakes - Rear | Single 265mm disc, ABS | Single disc. ABS. Two-piston calipers. Brembo. |
| Rims | - | Cast Aluminum. Pirelli Diablo Supercorsa V3 tyres. |
| Rims - Front | 3.50 x 17' | - |
| Rims - Rear | 5.50 x 17 | - |
| Tyres - Front | 120/70-ZR 17 | 120/70-ZR17 |
| Tyres - Rear | 180/55-ZR 17 | - |
| Wheels | Cast aluminium wheels | - |
