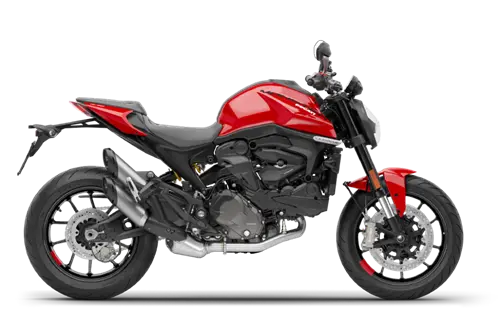

Ducati Monster Specs

2023 • 1 variants

The Ducati Monster is a naked bike produced from 2023 across 1 variant. Peak torque is 93 Nm.

About the Ducati Monster

Ducati introduced the Monster as part of their Naked bike range, with production running from 2021 to 2026. This technical reference page documents the full specification sheet for the Ducati Monster, including engine displacement, power and torque figures, frame and suspension geometry, braking systems, and overall dimensions. Select a model year above to view year-specific technical data. Specifications are compiled from official manufacturer sources.

AdSense - 728Ã90

Ducati Monster by Year

2023 Ducati Monster View specs →

Spec Evolution

How key specs changed across production years.

Specification	2021	2023	2026
Frame Type	Aluminum front frame	Aluminum front frame	Aluminium monocoque, structural engine
Dry Weight	166 kg / 366 lbs	166 kg / 366 lbs	164 kg / 361 lbs ↓
Displacement	937 cc / 57.2 cu in	937 cc / 57.2 cu in	890 cc / 54.3 cu-in ↓
Seat Height	820 mm / 32.3 in 800 mm / 31.5 in - accessory low seat 775 mm / 30.5 in - accessory low seat + low suspension kit	820 mm / 32.3 in 800 mm / 31.5 in - accessory low seat 775 mm / 30.5 in - accessory low seat + low suspension kit	815 mm / 32.1 in ↓
Engine Detail	Four stroke, Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, desmodromic valvetrain	Four stroke, Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, desmodromic valvetrain	Four stroke,90°V-Twin, 4 valves per cylinder, variable intake valve timing ↓
Wheelbase	1474 mm / 58.0 in	1474 mm / 58.0 in	1492 mm / 58.7 in ↑
Brakes - Front	2x 320 mm semi-floating discs, radially mounted Brembo M4.32 monobloc 4-piston calipers, radial master cylinder	2x 320 mm semi-floating discs, radially mounted Brembo M4.32 monobloc 4-piston calipers, radial master cylinder	2 x 320mm discs, Brembo M4.32 four-piston radial calipers,
Brakes - Rear	245 mm disc, Brembo 2-piston floating caliper	245 mm disc, Brembo 2-piston floating caliper	Single 245 mm disc, Brembo 2-piston floating caliper
Suspension - Front	43 mm USD forks	43 mm USD forks	Showa 43mm upside-down forks
Suspension - Rear	Progressive linkage, preload adjustable monoshock, aluminum double-sided swingarm	Progressive linkage, preload adjustable monoshock, aluminum double-sided swingarm	Showa monoshock, preload adjustment
Clutch	Slipper and self-servo wet multiplate clutch, hydraulic control	Slipper and self-servo wet multiplate clutch, hydraulic control	Hydraulically controlled slipper and self-servo wet multiplate clutch, self bleeding master cylinder
Bore x Stroke	94 x 67.5 mm	94 x 67.5 mm	96 x 61.5 mm ↑
Final Drive	Chain, front sprocket z15, rear sprocket z43	Chain, front sprocket z15, rear sprocket z43	Chain 520, front sprocket 16, rear sprocket 42 ↑
Equipment / Features	Ducati Quick Shift, Ducati Power Launch, 4.3" TFT color display, Full LED headlight and lighting system, Dynamic turn indicators, USB power socket	Ducati Quick Shift, Ducati Power Launch, 4.3" TFT color display, Full LED headlight and lighting system, Dynamic turn indicators, USB power socket	Ducati Quick Shift up/down 2.0,, Ducati Power Launch, TFT colour display, Full LED headlight and lighting system, Dynamic turn indicators, USB power socket, Flyscreen, Passenger seat cover, Brembo Stylema® callipers, Termignoni type approved twin muffler, Steering damper, Lithium-ion battery, Front and rear mudguards in carbon fibre ↓
Rims - Front	Light alloy cast, 3.5 x 17	Light alloy cast, 3.5 x 17	Casted aluminium alloy, 3.5 x 17
Rims - Rear	Light alloy cast, 5.5 x 17	Light alloy cast, 5.5 x 17	Casted aluminium alloy, 5.5 x 17
Optional Equipment	Ducati Multimedia System, Heated grips	Ducati Multimedia System, Heated grips	Ducati Multimedia System, Heated grips, cruise control
Compression Ratio	13.1:1	13.1:1	13,1:1
Wet Weight	188 kg / 414 lbs	188 kg / 414 lbs	175 kg / 386 lbs ↓
Gear Ratios	1st 37/15 2nd 30/17 3rd 28/20 4th 26/22 5th 24/23 6th 23/24	1st 37/15 2nd 30/17 3rd 28/20 4th 26/22 5th 24/23 6th 23/24	1st 38/154; 2nd 34/17; 3rd 32/20, 4th 29/22, 5th 24/21, 6th 26/25
Emissions	EURO5	EURO5	Euro 5+
Safety Equipment	Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light	Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light	6-axis Inertial Measurement Unit (6D IMU): cornering ABS; Ducati Traction Control (DTC); Ducati Wheelie Control (DWC); Ducati Quick Shift (DQS) 2.0; Engine Brake Control (EBC).
Tyres - Front	120/70 ZR17 Pirelli Diablo Rosso III	120/70 ZR17 Pirelli Diablo Rosso III	120/70-17 Pirelli Diablo Rosso IV
Tyres - Rear	180/55 ZR17 Pirelli Diablo Rosso III	180/55 ZR17 Pirelli Diablo Rosso III	180/55-17 Pirelli Diablo Rosso IV
Primary Drive	Straight cut gears, ratio1.85:1	Straight cut gears, ratio1.85:1	Straight cut gears, ratio1.84:1 ↓
Rake	24°	24°	23° ↓
Exhaust	Pre-muffler and twin muffler, catalytic converter and 2 lambda probes	Pre-muffler and twin muffler, catalytic converter and 2 lambda probes	2-1-2 system
Transmission / Drive	6-Speed	6-Speed	6-Speed with Ducati Quick Shift up/down 2.0
Trail	93 mm / 3.7 in	93 mm / 3.7 in	87 mm / 3.4 in ↓
Wheel Travel - Rear	140 mm / 5.5 in	140 mm / 5.5 in	145 mm / 5.7 in ↑
Max Torque	93 Nm / 69 lb-ft @ 6500 rpm	93 Nm / 69 lb-ft @ 6500 rpm	91.1 Nm / 67.2 lb-ft @ 7250 rpm ↓
