Key Specifications
Torque
161.4 Nm (16.5 kgf-m or 119.0 ft.lbs) @ 3000 Revolutions"
Weight
330.2 kg / 728.0 lbs
Fuel Capacity
18.90 litres / 4.99 US gallons
Advertisement

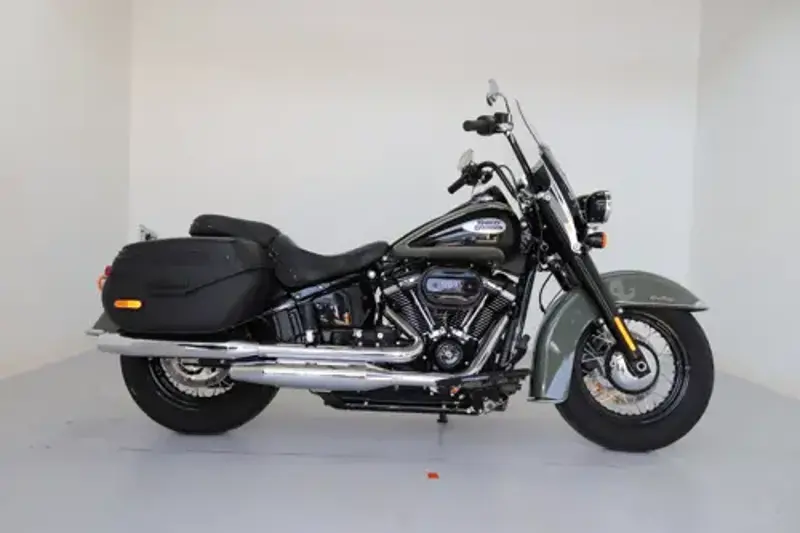

Full 2021 Harley-Davidson Heritage Classic 114 Specifications
Comments
Windscreen
Colours
Vivid Black, Black Jack Metallic, Billiard Teal, Deadwood Green/Vivid Black, Midnight Crimson Red/Stone Washed White Pearl
Storage
Saddle bags
Ground Clearance (mm)
120 mm
Ground Clearance (in.)
4.7 inches
Seat Height
668 mm / 26.3 in.
Wheelbase
1630 mm / 64.2 in.
Length
2415 mm / 95.1 in.
Oil Capacity (Quarts)
4.97 US quarts
Oil Capacity (l)
4.70 litres
Dry Weight
316.2 kg / 697.0 lbs
Fuel Capacity
18.90 litres / 4.99 US gallons
Wet Weight
330.2 kg / 728.0 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
V2, four-stroke
Displacement (ci)
114.00 cubic inches
Displacement (cc)
1868.2 cc
Bore x Stroke (in,)
4.0 x 4.5 inches
Bore x Stroke (mm)
102.0 x 114.3 mm
CO2
116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Engine Detail
Milwaukee-Eight® 114
Fuel System
Injection. Electronic Sequential Port Fuel Injection
Compression Ratio
10.0:1
Exhaust
2-into-2 shorty dual; catalyst in muffler
Fuel Consumption
5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Starter
Electric
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt (final drive)
Gearbox
6-speed
Primary Drive
Primary chain, 34/46 ratio
Suspension - Front
Telescopic fork
Suspension - Rear
Twin shocks
Rake
30.0°
Trail
140 mm / 5.5 in.
Instrumentation
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
Lighting system
High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Brakes - Front
Single disc. ABS. 4-piston fixed
Brakes - Rear
Single disc. ABS. 2-piston floating.
Rims
Gloss Black, Steel Laced
Tyres - Front
130/90-B16
