Key Specifications
Engine
Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Torque
167 Nm / 122 lb-ft @ 3250 rpm
Fuel Capacity
22.7 Litres / US 6.0 gal
Advertisement

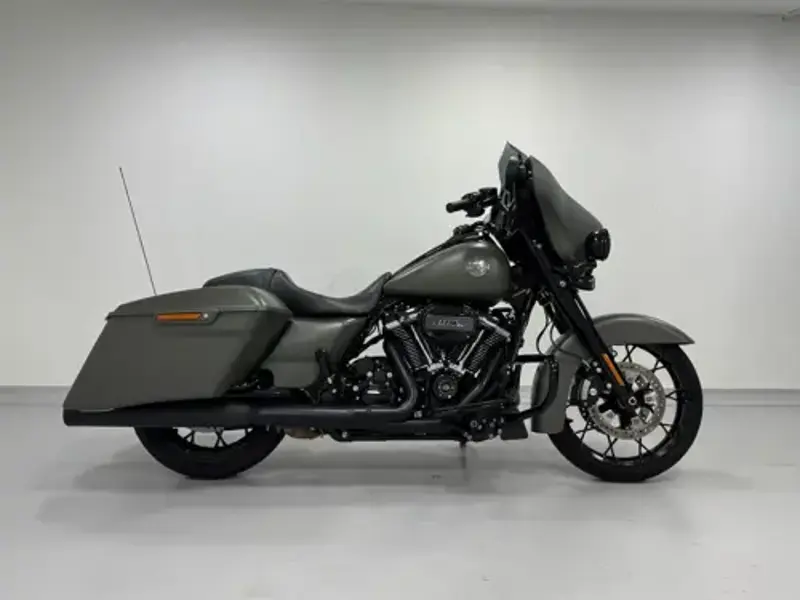

Full 2021 Harley-Davidson Street Glide Special 114 Specifications
Year
2021
Make Model
Harley Davidson Street Glide Special 114
Seat Height
Laden 7 663 mm / 26.1 in Unladen 690 mm / 27.2 in
Wheelbase
1625 mm / 64 in
Ground Clearance
125 mm / 4.9 in
Height
1350 mm / 53.1 in
Length
2450 mm / 96.5 in
Width
960 mm / 37.8 in
Dry Weight
362 kg / 798 lbs
Fuel Capacity
22.7 Litres / US 6.0 gal
Wet Weight
379 kg / 836 lbs
Displacement
1868 cc / 114 cu in
Engine Detail
Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Bore x Stroke
102 x 114 mm
Compression Ratio
10.5:1
Cooling System
Air cooled
Exhaust
Black, 2-1-2 dual exhaust with tapered mufflers
Fuel Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Single-fire, non-wasted, map-controlled spark ignition
Lubrication
Pressurized, dry-sump with oil cooler
Starter
Electric
Clutch
Hydraulically actuated 9 plate wet, Assist & Slip
Final Drive
Belt
Gear Ratios
1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Primary Drive
Chain, 34/46 ratio
Transmission / Drive
6 Speed
Frame Type
Mild steel, square-section backbone with twin downtubes
Suspension - Front
41.3 mm telescopic, cartridge-style damping,
Suspension - Rear
Short, air-adjustable shock,
Fork Angle
29.2°
Rake
26°
Trail
173mm / 6.8 in
Wheel Travel - Front
117 mm / 4.6 in
Wheel Travel - Rear
51 mm / 2.0 in
Brakes - Front
2x 300mm discs 4-piston fixed caliper,Caliper Type 32 mm
Brakes - Rear
Single 300mm discs 2-piston caliper
ABS
Standard
Tyres - Front
130/60B19 61H
Tyres - Rear
1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Wheels - Rear
Black, Talon Cast Aluminum
