Key Specifications
Engine
Evolution®, four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Torque
96 Nm / 9.8 kgf-m / 70.8 ft/lbs./ @ 3500 rpm
Fuel Capacity
7.9 L / 2.1 US gal
Advertisement

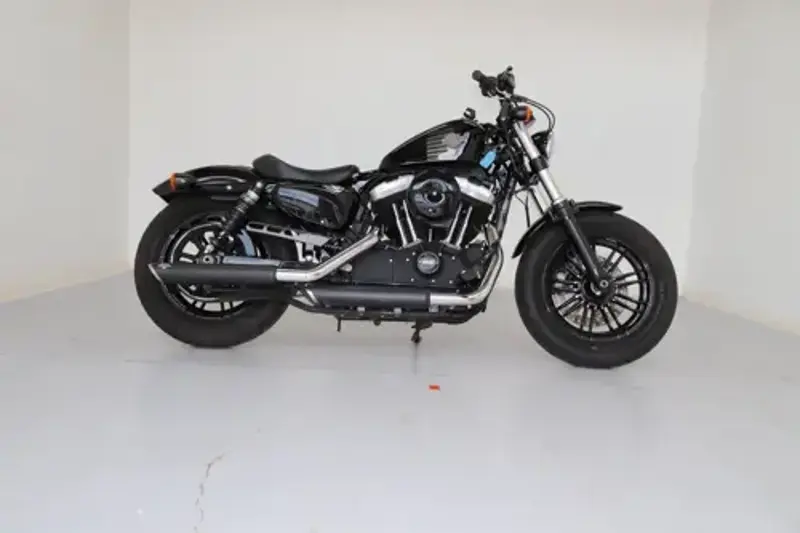

Full 2017 Harley-Davidson XL 1200X Forty-Eight Specifications
Year
2016 - 17
Make Model
Harley Davidson XL 1200X Forty-Eight
Seat Height
Unladen 710 mm / 28.0 in.
Wheelbase
1495 mm / 58.9 in.
Ground Clearance
110 mm / 4.3 in
Length
2210 mm / 87.0 in
Fuel Capacity
7.9 L / 2.1 US gal
Oil Capacity
2.6 L / 0.69 US gal
Wet Weight
252 kg / 556 lbs
Displacement
1202 cc / 73.4 cu in.
Engine Detail
Evolution®, four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Bore x Stroke
88.8 x 96.8 mm
Compression Ratio
10.0:1
Cooling System
Air cooled
Exhaust
Shorty-dual exhaust with blacked out mufflers
Fuel Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Digital CDI
Starter
Electric
Final Drive
Belt
Gear Ratios
1st 9.004 / 2nd 6.432 / 3rd 4.783 / 4th 3.965 / 5th 3.400:1
Primary Drive Ratios
38/57 ratio
Transmission / Drive
5 Speed
Frame Type
Mild steel, tubular frame; circular sections; cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Suspension - Front
Front forks with cartridge dampening technology
Suspension - Rear
Emulsion technology rear shocks with 50 mm range of pre-load adjustability and an under-seat, rear shock suspension adjustment wrench
Lean Angle
27.1°
Rake
29.6°
Trail
132 mm / 5.2 in.
Brakes - Front
Single ∅300mm disc, 2 x ∅38mm piston calipers
Brakes - Rear
Single ∅300mm disc, 2 x ∅38mm piston calipers
Tyres - Front
130/90 B16 73H
Tyres - Rear
150/80 B16 77H
Wheels - Front
Cast aluminium, 9 double spoke, black, machined highlights
Wheels - Rear
Cast aluminium, 9 double spoke, black, machined highlights
