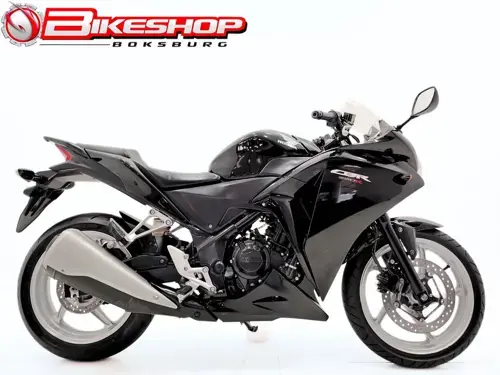

Honda CBR 250R Specs

2012 • 1 variants

The Honda CBR 250R is a sport motorcycle produced from 2012 across 1 variant. It is powered by a four stroke, single cylinder, dohc, 4 valve displacing 249.40 cc. Peak power output is 23.7 hp. Peak torque is 22.9 Nm.

About the Honda CBR 250R

Documented here are the full technical specifications for the Honda CBR 250R, a Sport motorcycle with a production run from 2011 to 2017. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

AdSense - 728Ã90

Honda CBR 250R by Year

2012 Honda CBR 250R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2012	2014	2015	2016	2017
Fuel Control	DOHC	DOHC	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Comments	French brand.	Model ID: CBR250R	Model ID: CBR250R	Model ID: CBR250R	Model ID: CBR250R
CO2	70.8 CO	70.8 CO	70.8 CO2 g/km. (CO2 - Carbon dioxide emission)	70.8 CO2 g/km. (CO2 - Carbon dioxide emission)	70.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Brakes - Rear Diameter (mm)	220 mm	220 mm	220 mm	220 mm	220 mm
Brakes - Rear Diameter (in.)	8.7 inches	8.7 inches	8.7 inches	8.7 inches	8.7 inches
Brakes - Front Diameter (mm)	296 mm	296 mm	296 mm	296 mm	296 mm
Brakes - Front Diameter (in.)	11.7 inches	11.7 inches	11.7 inches	11.7 inches	11.7 inches
Ground Clearance (mm)	127 mm	190 mm ↑	-	-	-
Ground Clearance (in.)	5.0 inches	7.5 inches ↑	-	-	-
Displacement (cc)	249.40 cc	249.60 cc ↑	-	-	-
Displacement (ci)	15.22 cubic inches	15.23 cubic inches	-	-	-
Seat Height	785 mm / 30.5 in	775 mm / 30.5 in. ↓	775 mm / 30.5 in.	775 mm / 30.5 in.	775 mm / 30.5 in.
Frame Type	Diamond; steel twin-spar	Diamond; steel twin-spar	-	Steel	Steel
Dry Weight	310 kg / 683.4 lbs	138 kg / 304.2 lbs ↓	-	-	-
Brakes - Front	Single 296mm disc 2 piston caliper	Single 296mm disc 2 piston caliper	Single disc	Single disc	Single disc
Wheelbase	1370 mm / 53.9 in	1370 mm / 53.9 in	1,369 mm / 53.9 in. ↓	1,369 mm / 53.9 in.	1,369 mm / 53.9 in.
Engine Detail	Four stroke, single cylinder, DOHC, 4 valve per cylinder.	Four stroke, single cylinder, DOHC, 4 valve	-	-	-
Brakes - Rear	Single 220mm disc 1 piston caliper	Single 220mm disc 1 piston caliper	Single disc	Single disc	Single disc
Fuel Capacity	13 Liters / 3.4 gal	13 Liters / 3.4 gal	13.00 litres / 3.43 gallons	13.00 litres / 3.43 gallons	13.00 litres / 3.43 gallons
Suspension - Front	37mm telescopic fork,	37mm fork	37mm fork	37mm fork	37mm fork
Suspension - Rear	Pro-Link Monoshock damper,	Pro-Link single shock with five positions of spring preload adjustability	Pro-Link single shock with five positions of spring preload adjustability	Pro-Link single shock with five positions of spring preload adjustability	Pro-Link single shock with five positions of spring preload adjustability
Fuel System	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body
Colours	Metallic Black, Red/Silver	Red	Black, Red, Pearl White/Blue/Red, Blue/Orange/White/Red	Black, Red, Pearl White/Blue/Red, Blue/Orange/White/Red	Black, Red, Pearl White/Blue/Red, Blue/Orange/White/Red
Clutch	Wet multiplate hydraulic clutch	Wet multiplate hydraulic clutch	Wet multiplate with coil springs	Wet multiplate with coil springs	Wet multiplate with coil springs
Final Drive	Chain	#520 O-ring-sealed chain	Chain	Chain	Chain
Rims	-	Front tyre	-	5-spoke black	5-spoke black
Height	1,150 mm / 45.3 in.	1125 mm / 44.3 in ↑	-	-	-
Length	2035 mm / 80.1 in	2,035 mm / 80.1 in. ↓	2,035 mm / 80.1 in.	2,035 mm / 80.1 in.	2,035 mm / 80.1 in.
Wet Weight	161.9 kg / 357.0 lbs	165.0 kg / 363.8 lbs ↑	165.0 kg / 363.8 lbs	165.0 kg / 363.8 lbs	165.0 kg / 363.8 lbs
Compression Ratio	10.7:1	10.7: 1	10.7:1	10.7:1	10.7:1
Tyres - Front	110/70-MC17	100/80-17 ↓	110/70-17 ↑	110/70-17	110/70-17
Width	720 mm / 28 in	720 mm / 28.3 in.	720 mm / 28.3 in.	720 mm / 28.3 in.	720 mm / 28.3 in.
Tyres - Rear	140/70-MC17	130/70-17 ↓	140/70-17 ↑	140/70-17	140/70-17
Primary Drive	CVT	2.63	-	-	-
Rake	25°	25.0°	25.0°	25.0°	25.0°
Trail	99 mm / 3.9 in.	99 mm / 3.9 in.	99 mm / 3.9 in.	99 mm / 3.9 in.	99 mm / 3.9 in.
Wheel Travel - Front	118 mm / 4.7 in.	130 mm / 5.1 in ↑	118 mm / 4.7 in. ↓	118 mm / 4.7 in.	118 mm / 4.7 in.
Max Power	23.7 hp / 17.7 kW @ 9900 rpm	26 hp / 19.3 kW @ 8500 rpm ↑	-	-	-
Wheel Travel - Rear	103 mm / 4.1 in.	103 mm / 4.1 in.	103 mm / 4.1 in.	103 mm / 4.1 in.	103 mm / 4.1 in.
Ignition	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance
Max Torque	4.00 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 5500 Revolutions	22.9 Nm / 16.8 lb-ft @ 6750 rpm ↑	22.90 Nm (2.3 kgf-m or 16.9 ft.lbs)	22.90 Nm (2.3 kgf-m or 16.9 ft.lbs)	22.90 Nm (2.3 kgf-m or 16.9 ft.lbs)
Power-to-Weight Ratio	0.0472 HP/kg	0.0870 HP/kg ↑	-	-	-
Valve System	4	2 ↓	4 ↑	4	4
