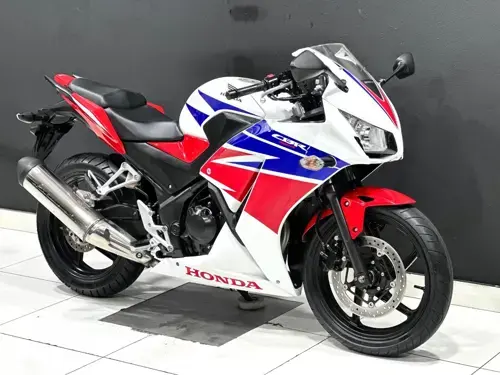

Honda CBR 300R Specs

2014 • 1 variants

The Honda CBR 300R is a sport motorcycle produced from 2014 across 1 variant. It is powered by a four stroke, single cylinder, dohc, 4 valve displacing 286.0 cc. Peak power output is 30.4 hp. Peak torque is 22.9 Nm.

About the Honda CBR 300R

Honda introduced the CBR 300R as part of their Sport range, with production running from 2014 to 2023. This technical reference page documents the full specification sheet for the Honda CBR 300R, including engine displacement, power and torque figures, frame and suspension geometry, braking systems, and overall dimensions. Select a model year above to view year-specific technical data. Specifications are compiled from official manufacturer sources.

AdSense - 728Ã90

Honda CBR 300R by Year

2014 Honda CBR 300R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2014	2015	2017	2019	2021	2022	2023
Fuel Control	DOHC	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Engine Type	Twin, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke	Single cylinder, four-stroke
Displacement (cc)	286.00 cc	-	286.00 cc	286.0 cc	286.0 cc	286.0 cc	286.0 cc
Comments	-	Model id: CBR300R.	Model id: CBR300R.	Model ID: CBR300R	Model ID: CBR300R.	Model ID: CBR300R.	Model ID: CBR300R.
CO2	76.8 CO	76.8 CO2 g/km. (CO2 - Carbon dioxide emission)	76.8 CO2 g/km. (CO2 - Carbon dioxide emission)	76.8 CO2 g/km. (CO2 - Carbon dioxide emission)	76.8 CO2 g/km. (CO2 - Carbon dioxide emission)	76.8 CO2 g/km. (CO2 - Carbon dioxide emission)	76.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Frame Type	Diamond Steel. Swing arm: 573.6mm.	Diamond; steel twin-spar	Diamond; steel twin-spar	Steel tube	Steel tube	Steel tube	Steel tube
Seat Height	785 mm / 30.9 in.	780 mm / 30.7 in ↓	780 mm / 30.7 in	780 mm / 30.7 in	780 mm / 30.7 in.	780 mm / 30.7 in.	780 mm / 30.7 in.
Displacement	-	286 cc / 17.45 cub-in	286 cc / 17.45 cub-in	286 cc / 17.45 cub in.	286 cc / 17.45 cub-in	-	-
Brakes - Front	Single disc. Hydraulic.	Single 296 mm disc 2 piston caliper, ABS	Single disc	Single 296 mm disc 2 piston caliper, ABS	Single disc. Optional ABS	Single disc. Optional ABS	Single disc. Optional ABS
Wheelbase	1,380 mm / 54.3 in.	1380 mm / 54.3 in ↑	1,379 mm / 54.3 in. ↓	1380 mm / 54.3 in ↑	1379 mm / 54.3 in. ↓	1379 mm / 54.3 in.	1379 mm / 54.3 in.
Engine Detail	-	Four stroke, single cylinder, DOHC, 4 valve	Four stroke, single cylinder, DOHC, 4 valve	Four stroke, single cylinder, DOHC, 4 valve	Counterbalancer	Counterbalancer	Counterbalancer
Fuel Capacity	13.00 litres / 3.43 gallons	13 Litres / 3.4 gal	12.87 litres / 3.40 gallons ↓	13 Litres / 3.4 gal ↑	13 Litres / 3.4 gal	12.87 litres / 3.40 US gallons ↓	12.87 litres / 3.40 US gallons
Brakes - Rear	Single disc. Hydraulic.	Single 220 mm disc 1 piston caliper	Single disc	Single disc	Single 220 mm disc 1 piston caliper	Single disc. Optional ABS	Single disc. Optional ABS
Suspension - Front	37mm conventional fork	37 mm telescopic fork	37 mm telescopic fork	37 mm telescopic fork	37 mm telescopic fork	37mm fork	37mm fork
Suspension - Rear	Mono-shock, Pro-link	Monoshock damper, Pro-Link swingarm, 5 position preload adjustability	Monoshock damper, Pro-Link swingarm, 5 position preload adjustability	Pro-Link single shock with five positions of spring preload adjustability	Pro-Link single shock with five positions of spring preload adjustability	Pro-Link single shock with five positions of spring preload adjustability	Pro-Link single shock with five positions of spring preload adjustability
Fuel System	Injection	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body	Injection. PGM-Fi, 38mm throttle body
Colours	White/black/red/blue	Black, Red, Pearl White/Red/Blue, Matte Black Metallic/Yellow	Red/Black/White	Red, Matte Black Metallic	Grand Prix Red, Matte Gray Metallic	Grand Prix Red, Matte Gray Metallic	Grand Prix Red, Matte Gray Metallic
Clutch	Wet multiplate	Wet multiplate hydraulic clutch	Wet multiplate hydraulic clutch	Wet multiplate with coil springs	Wet multiplate hydraulic clutch	Wet multiplate with coil springs	Wet multiplate with coil springs
Final Drive	Chain	#520 O-ring-sealed chain	Chain	#520 O-ring-sealed chain	#520 O-ring-sealed chain	Chain (final drive)	Chain (final drive)
Height	1,127 mm / 44.4 in.	1120 mm / 44.0 in ↑	1120 mm / 44.0 in	1120 mm / 44.0 in	1120 mm / 44.0 in	-	-
Rims	Hollow-section 6-spoke cast aluminium	Multi-spoke cast aluminium	Multi-spoke cast aluminium	Multi-spoke cast aluminium;	Multi-spoke cast aluminium;	-	-
Length	2,030 mm / 79.9 in.	2035 mm / 82.0 in ↑	2035 mm / 82.0 in	2035 mm / 82.0 in	2035 mm / 82.0 in	-	-
Compression Ratio	10.7:1	10.7:1	10.7:1	10.7:1	10.7: 1	10.7:1	10.7:1
Wet Weight	164.0 kg / 361.6 lbs	162 kg / 357 lbs (165 kg / 362 lbs ABS) ↓	162 kg / 357 lbs (165 kg / 362 lbs ABS)	161.9 kg / 357.0 lbs ↓	161.9 kg / 357.0 lbs	160.6 kg / 354.0 lbs ↓	160.6 kg / 354.0 lbs
Emissions	-	-	Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.	Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.	Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.	EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.	EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.
Tyres - Front	110/70-17	110/70-17 radial	110/70-17	110/70-17 radial	110/70-17	110/70-17	110/70-17
Width	710 mm / 27.9 in.	720 mm / 28.3 in ↑	720 mm / 28.3 in	720 mm / 28.3 in	720 mm / 28.3 in	-	-
Tyres - Rear	140/70-17	140/70-17 radial	140/70-17 radial	140/70-17 radial	140/70-17 radial	-	-
Primary Drive	530 O-ring sealed chain	-	-	-	-	#520 Chain; 14T/36T final drive	#520 Chain; 14T/36T final drive
Rake	-	25.3°	25.3°	25.3°	25.3°	25.3°	25.3°
Instrumentation	-	Analogue tachometer, digital odometer, speedometer, fuel gauge, temperature gauge and clock.	Analogue tachometer, digital odometer, speedometer, fuel gauge, temperature gauge and clock.	Analogue tachometer, digital odometer, speedometer, fuel gauge, temperature gauge and clock.	Analogue tachometer, digital odometer, speedometer, fuel gauge, temperature gauge and clock.	-	Digital gauges with analog tachometer
Trail	98 mm / 3.9 in.	98 mm / 3.9 in	98 mm / 3.9 in.	98 mm / 3.9 in.	98 mm / 3.9 in.	98 mm / 3.9 in.	98 mm / 3.9 in.
Wheel Travel - Front	120 mm / 9.7 in.	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	118 mm / 4.7 in. ↓	118 mm / 4.7 in.	118 mm / 4.7 in.
Wheel Travel - Rear	120 mm / 4.7 in.	103 mm / 4.07 in ↓	103 mm / 4.1 in.	103 mm / 4.1 in.	103 mm / 4.1 in.	103 mm / 4.1 in.	103 mm / 4.1 in.
Ignition	Computer-controlled digital transistorised with electronic advance?	Computer-controlled digital transistor with electronic advance	Computer-controlled digital transistor with electronic advance	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance
Max Torque	27.00 Nm (2.8 kgf-m or 19.9 ft.lbs) @ 7250	27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm	27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm	27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm	27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm	22.9 Nm (2.3 kgf-m or 16.9 ft.lbs) ↓	22.9 Nm (2.3 kgf-m or 16.9 ft.lbs)
