Honda CRF125F Specs

2014 - 2023 • 4 variants

The Honda CRF125F is a motocross bike produced from 2014 to 2023 across 4 variants. Engine displacement is 124.9 cc. Peak torque is 10.2 Nm.

About the Honda CRF125F

Documented here are the full technical specifications for the Honda CRF125F, a Cross / motocross motorcycle with a production run from 2014 to 2023. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

AdSense - 728Ã90

Honda CRF125F by Year

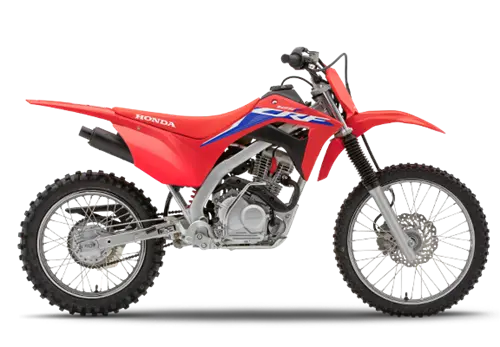

2023 Honda CRF125F View specs →

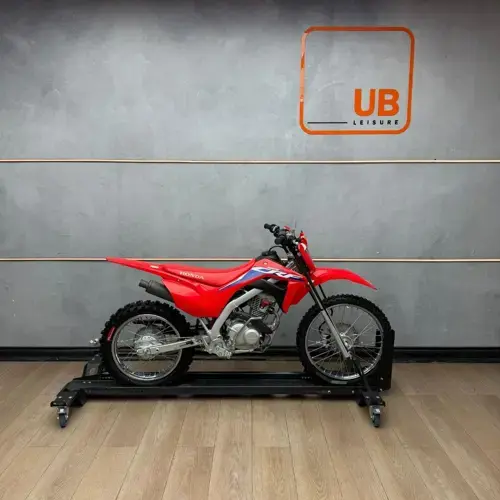

2021 Honda CRF125F View specs →

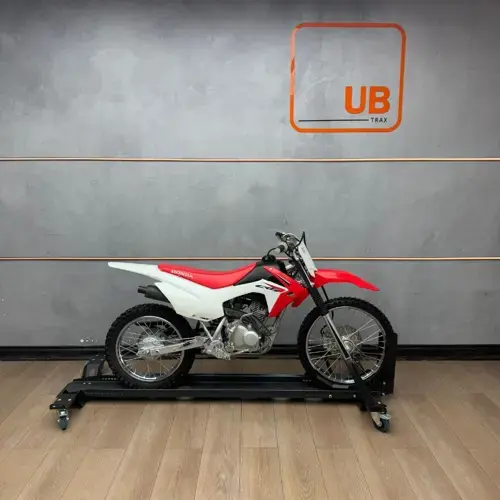

2017 Honda CRF125F View specs →

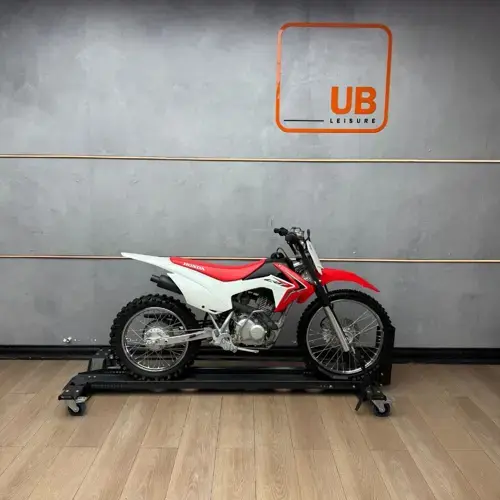

2014 Honda CRF125F View specs →

Spec Evolution

How key specs changed across production years.

Specification	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Ground Clearance (mm)	264 mm	264 mm	219 mm ↓	219 mm	219 mm	219 mm	211 mm ↓	211 mm	211 mm	211 mm
Ground Clearance (in.)	10.4 inches	10.4 inches	8.6 inches ↓	8.6 inches	8.6 inches	8.6 inches	8.3 inches ↓	8.3 inches	8.3 inches	8.3 inches
Fuel Control	SOHC	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)	Single Overhead Cams (SOHC)
Displacement (cc)	124.90 cc	-	-	-	-	124.9 cc	124.9 cc	124.9 cc	124.9 cc	124.9 cc
Comments	Model ID: CRF125FB	Model ID: CRF125F	Model ID: CRF125F	Model ID: CRF125F	Model ID: CRF125F	Model ID: CRF125F	Model ID: CRF125F.	Model ID: CRF125F.	Model ID: CRF125F.	Model ID: CRF125F.
Brakes - Rear Diameter (mm)	125 mm	125 mm	125 mm	125 mm	125 mm	-	-	-	-
Brakes - Rear Diameter (in.)	4.9 inches	4.9 inches	4.9 inches	4.9 inches	4.9 inches	-	-	-	-
Brakes - Front Diameter (mm)	220 mm	220 mm	220 mm	220 mm	220 mm	-	-	-	-
Brakes - Front Diameter (in.)	8.7 inches	8.7 inches	8.7 inches	8.7 inches	8.7 inches	-	-	-	-
Seat Height	785 mm / 30.9 in.	785 mm / 30.9 in.	735 mm / 28.9 in. ↓	735 mm / 28.9 in.	735 mm / 28.9 in.	735 mm / 28.9 in.	739 mm / 29.1 in. ↑	739 mm / 29.1 in.	739 mm / 29.1 in.	739 mm / 29.1 in.
Wheelbase	1,255 mm / 49.4 in.	1,219 mm / 48.0 in. ↓	1,219 mm / 48.0 in.	1,219 mm / 48.0 in.	1,219 mm / 48.0 in.	1254 mm / 49.4 in. ↑	1219 mm / 48.0 in. ↓	1219 mm / 48.0 in.	1219 mm / 48.0 in.	1219 mm / 48.0 in.
Fuel Capacity	4.30 litres / 1.14 gallons	4.30 litres / 1.14 gallons	4.30 litres / 1.14 gallons	4.30 litres / 1.14 gallons	4.30 litres / 1.14 gallons	4.30 litres / 1.14 US gallons	3.79 litres / 1.00 US gallons ↓	3.79 litres / 1.00 US gallons	4.50 litres / 1.19 US gallons ↑	3.79 litres / 1.00 US gallons ↓
Suspension - Front	31mm telescopic fork	31mm telescopic fork	31mm telescopic fork	31mm telescopic fork	31mm telescopic fork	31mm telescopic fork	31mm telescopic fork	31mm telescopic fork	31mm inverted telescopic fork	31mm leading-axle fork
Fuel System	Carburettor. 20mm piston-valve carburetor	Carburettor. 20mm piston-valve carburetor	Carburettor. 20mm piston-valve carburetor	Carburettor. 20mm piston-valve carburetor	Carburettor. 20mm piston-valve carburetor	Carburettor. 20mm piston-valve carburetor	Injection. 22mm throttle bore ↑	Injection. 22mm throttle bore	Injection. 22mm throttle bore	Injection. 22mm throttle bore
Colours	Red	Red/white	Red/white	Red	Red	Extreme Red/Ross White	Red	Red	Red	Red
Final Drive	Chain	Chain	Chain	Chain	Chain	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)
Height	1,171 mm / 46.1 in.	1,171 mm / 46.1 in.	1,010 mm / 39.8 in. ↓	1,010 mm / 39.8 in.	1,010 mm / 39.8 in.	1010 mm / 39.8 in. ↑	1010 mm / 39.8 in.	1010 mm / 39.8 in.	1000 mm / 39.4 in. ↓	1000 mm / 39.4 in.
Length	1,900 mm / 74.8 in.	1,900 mm / 74.8 in.	1,770 mm / 69.7 in. ↓	1,770 mm / 69.7 in.	1,770 mm / 69.7 in.	1770 mm / 69.7 in. ↑	1770 mm / 69.7 in.	1770 mm / 69.7 in.	1770 mm / 69.7 in.	1770 mm / 69.7 in.
Compression Ratio	9.0:1	9.0:1	9.5:1 ↑	9.5:1	9.5:1	9.5:1	9.0:1 ↓	9.0:1	9.0:1	9.0:1
Warranty	Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.	Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.	Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.	Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.	Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.	Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.	Six Months transferable limited warranty	Six Months transferable limited warranty	Six Months transferable limited warranty	Six Months transferable limited warranty
Tyres - Front	70/100-19	70/100-17	70/100-17	70/100-17	70/100-17	70/100-17	70/100-17	70/100-17	70/100-17	70/100-17
Width	770 mm / 30.3 in.	770 mm / 30.3 in.	740 mm / 29.1 in. ↓	740 mm / 29.1 in.	740 mm / 29.1 in.	740 mm / 29.1 in.	740 mm / 29.1 in.	740 mm / 29.1 in.	739 mm / 29.1 in. ↓	739 mm / 29.1 in.
Tyres - Rear	90/100-16	90/100-14	90/100-14	90/100-14	90/100-14	-	-	-	-
Primary Drive	13T/49T	13T/49T	13T/49T	13T/49T	13T/49T	13T/49T	Chain 13T/49T	Chain 13T/49T	Chain 13T/49T	Chain 13T/46T
Rake	27.0°	25.3° ↓	25.3°	25.3°	25.3°	25.3°	27.3° ↑	27.3°	27.3°	27.5° ↑
Trail	94 mm / 3.7 in.	81 mm / 3.2 in. ↓	81 mm / 3.2 in.	81 mm / 3.2 in.	81 mm / 3.2 in.	81 mm / 3.2 in.	81 mm / 3.2 in.	81 mm / 3.2 in.	81 mm / 3.2 in.	81 mm / 3.2 in.
Wheel Travel - Front	275 mm / 10.8 in.	275 mm / 10.8 in.	275 mm / 10.8 in.	275 mm / 10.8 in.	140 mm / 5.5 in. ↓	140 mm / 5.5 in.	132 mm / 5.2 in. ↓	132 mm / 5.2 in.	132 mm / 5.2 in.	150 mm / 5.9 in. ↑
Wheel Travel - Rear	282 mm / 11.1 in.	282 mm / 11.1 in.	282 mm / 11.1 in.	282 mm / 11.1 in.	114 mm / 4.5 in. ↓	114 mm / 4.5 in.	140 mm / 5.5 in. ↑	140 mm / 5.5 in.	140 mm / 5.5 in.	140 mm / 5.5 in.
Ignition	DC-CDI	DC-CDI	Capacitor Discharge	Capacitor Discharge	DC-CDI	DC-CDI	Full Transistorized	Full Transistorized	Full Transistorized	Full Transistorized
Max Torque	14.10 Nm (1.4 kgf-m or 10.4 ft.lbs) @ 11000	14.10 Nm (1.4 kgf-m or 10.4 ft.lbs) @ 11000 Revolutions	10.20 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 Revolutions ↓	10.20 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 Revolutions	10.20 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 Revolutions	10.2 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 Revolutions"	10.2 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 Revolutions"	10.2 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 Revolutions"	10.2 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 Revolutions"	10.2 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 rpm
Starter	Kick	Kick	Kick	Kick	Kick	Kick	Electric	Electric	Electric & kick	Electric & kick
