Key Specifications
Weight
294.8 kg / 650.0 lbs
Fuel Capacity
29.14 litres / 7.70 gallons
Advertisement

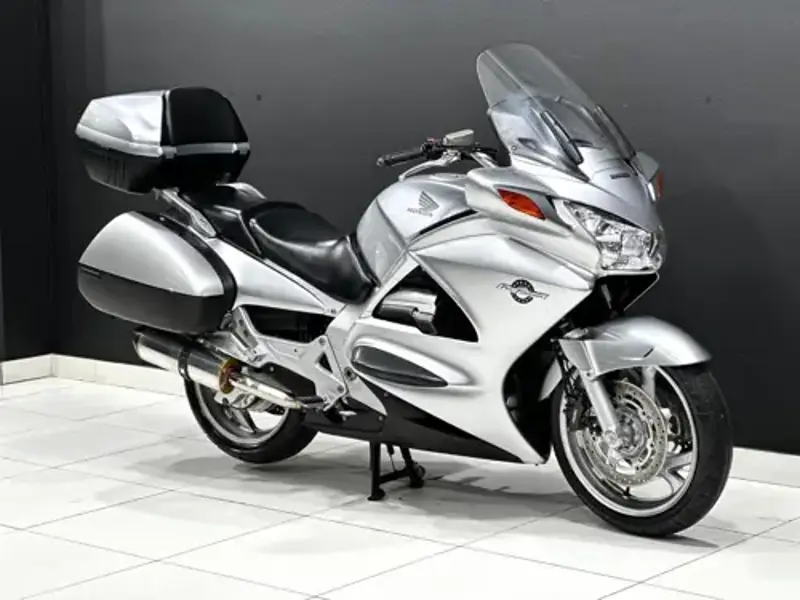

Full 2007 Honda ST1300 Pan-European Specifications
Colours
Light Silver Metallic
Seat Height
790 mm / 31.1 in.
Wheelbase
1,491 mm / 58.7 in.
Dry Weight
294.8 kg / 650.0 lbs
Fuel Capacity
29.14 litres / 7.70 gallons
Bore x Stroke (in,)
3.1 x 2.6 inches
Bore x Stroke (mm)
78.0 x 66.0 mm
Displacement (cc)
1261.00 cc
Displacement (ci)
76.95 cubic inches
Engine Type
V4, four-stroke
Fuel Control
DOHC
Fuel System
Injection. Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Compression Ratio
10.8:1
Ignition
Computer-controlled digital with three-dimensional mapping and electronic advance
Valve System
4
Final Drive
Shaft drive (cardan)
Gearbox
5-speed
Suspension - Front
45mm HMAS cartridge fork
Suspension - Rear
HMAS gas-charged single shock with five-position spring-preload adjustability
Rake
26.0°
Trail
98 mm / 3.9 in.
Wheel Travel - Front
117 mm / 4.6 in.
Wheel Travel - Rear
122 mm / 4.8 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
12.4 inches
Brakes - Rear Diameter (mm)
316 mm
Brakes - Front
Double disc
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR18
Tyres - Rear
170/60-ZR17
