Key Specifications
Engine
Four stroke, parallel twin, DOHC, 4 valves per cylinder
Power
38 kW / 51 hp @ 10000 rpm
Torque
43 Nm / 31.7 lb-ft @ 7500 rpm
Fuel Capacity
14 Litres / 3.7 US gal
Advertisement

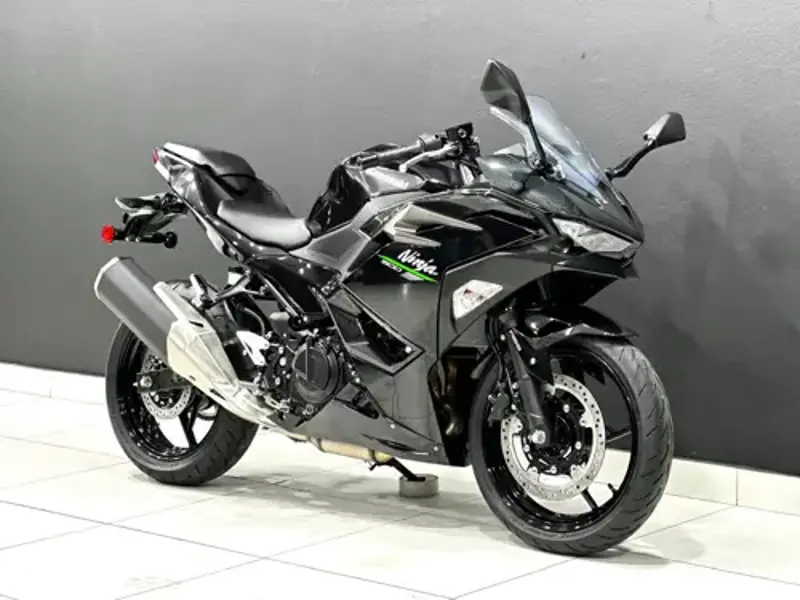

Full 2024 Kawasaki Ninja 500 / SE / KRT Specifications
Year
2024
Make Model
Kawasaki Ninja 500 / SE / KRT
Seat Height
785 mm / 30.9 in
Wheelbase
1374 mm / 54.1 in
Ground Clearance
145 mm / 5.7 in
Height
1120 mm / 44.1 in
Length
1994 mm / 78.5 in
Width
729 mm / 28.7 in
Dry Weight
156 kg / 344 lbs
Fuel Capacity
14 Litres / 3.7 US gal
Wet Weight
170 kg / 375 lbs
Displacement
451 cc /.27.5 cu-in
Engine Detail
Four stroke, parallel twin, DOHC, 4 valves per cylinder
Bore x Stroke
70 x 58.6 mm
Compression Ratio
11.3:1
Cooling System
Liquid cooled
Emissions
EURO5
Fuel Induction
DFI with 32mm x 2 throttle bodies
Ignition
TCBI with electronic advance
Lubrication
Forced lubrication, wet sump
Starter
Electric
Clutch
Wet multi-disc, with assist and slipper function
Final Drive
Sealed chain
Transmission / Drive
6 Speed
Frame Type
Trellis, high-tensile steel
Suspension - Front
41mm Hydraulic telescopic fork
Suspension - Rear
Linkage-assisted, spring-preload adjustable KYB shock
Rake
24.5°
Trail
90 mm / 3.6 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
130 mm / 5.1 in
Brakes - Front
Single 310mm semi-floating disc with 2-piston calipers
Brakes - Rear
Single 220 mm petal disc with single-piston caliper
ABS
Standard
Tyres - Front
110/70 R17
Tyres - Rear
150/60 R17
