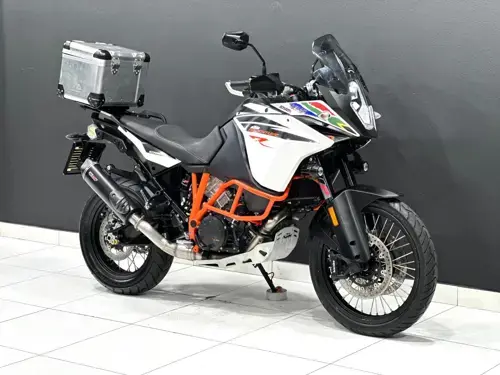

KTM 1090 Adventure Specs
2017 - 2019
• 3 variants
The KTM 1090 Adventure is a sport tourer produced from 2017 to 2019 across 3 variants. It is powered by a 75° v arrangement displacing 1050.00 cc.
About the KTM 1090 Adventure
The KTM 1090 Adventure is a All-Round motorcycle from KTM, produced from 2017 to 2019. This page provides a comprehensive technical reference for the KTM 1090 Adventure, covering all available specification data including engine configuration, displacement, power output, dimensions, weight, and chassis details. Use the year selector above to find specifications for a specific model year. All data is sourced from manufacturer specifications and is intended as a technical reference for riders, mechanics, and enthusiasts.
KTM 1090 Adventure by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2017
|
2018
|
2019
|
|
Displacement (cc)
|
1050.00 cc | 1050.00 cc | 1090.0 cc ↑ |
|
Displacement (ci)
|
64.07 cubic inches | 64.07 cubic inches | 66.51 cubic inches ↑ |
|
Engine Type
|
Twin, four-stroke | Twin, four-stroke | V2, four-stroke |
|
Brakes - Front
|
Double disc. ABS. Four-piston calipers. Radially mounted. Brembo | Double disc. ABS. Four-piston calipers. Radially mounted. Brembo | Double disc. Brembo four-piston radial fixed calliper |
|
Wheelbase
|
1,560 mm / 61.4 in. | 1,560 mm / 61.4 in. | 1560 mm / 61.4 in. ↑ |
|
Brakes - Rear
|
Single disc. ABS. Two-piston calipers. Brembo. | Single disc. ABS. Two-piston calipers. Brembo. | Single disc. Brembo twin-piston fixed calliper, brake disc |
|
Fuel Capacity
|
23.00 litres / 6.08 gallons | 23.00 litres / 6.08 gallons | 23.00 litres / 6.08 US gallons |
|
Suspension - Front
|
WP upside-down ? 43 mm | WP upside-down ? 43 mm | WP upside-down Ø 43 mm |
|
Colours
|
Orange/black | Orange/black | Black/Orange |
|
Clutch
|
PASC slipper clutch, hydraulically actuated | PASC slipper clutch, hydraulically actuated | Slipper clutch |
|
Ignition
|
Keihin EMS with RBW, twin ignition | Keihin EMS with RBW, twin ignition | Digetal |
|
Power-to-Weight Ratio
|
0.6098 HP/kg | 0.6098 HP/kg | 0.6018 HP/kg |
