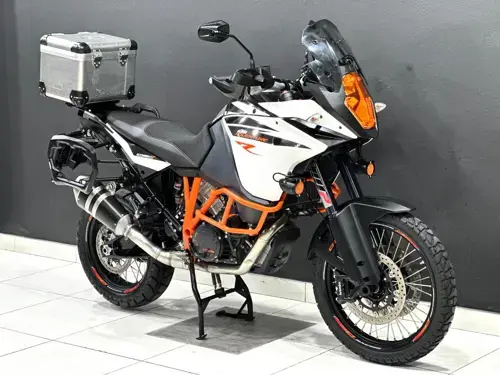

KTM 1090 Adventure R Specs
2017 - 2019
• 2 variants
The KTM 1090 Adventure R is an enduro motorcycle produced from 2017 to 2019 across 2 variants. It is powered by a four stroke, 75°v-twin cylinder, dohc, 4 valves per cylinder. Peak power output is 125 hp. Peak torque is 109 Nm.
About the KTM 1090 Adventure R
KTM introduced the 1090 Adventure R as part of their Enduro / Off-Road range, with production running from 2017 to 2019. This technical reference page documents the full specification sheet for the KTM 1090 Adventure R, including engine displacement, power and torque figures, frame and suspension geometry, braking systems, and overall dimensions. Select a model year above to view year-specific technical data. Specifications are compiled from official manufacturer sources.
KTM 1090 Adventure R by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2017
|
2018
|
2019
|
|
Brakes - Front
|
2x 320mm discs 4 piston calipers | 2 x Brembo 4-piston, radially mounted caliper, brake disc 320mm | 2x 320mm discs 4 piston calipers |
|
Brakes - Rear
|
Single 267mm disc 2 piston caliper | Brembo two-piston fixed caliper, brake disc 267mm | Single 267mm disc 2 piston caliper |
|
Suspension - Front
|
48mm WP Suspension Up Side Down | WP-USD 48mm, 220mm of travel (6.6 N-mm springs) | 48mm WP Suspension Up Side Down |
|
Suspension - Rear
|
WP-PDS Monoshock | WP PDS twin-piston shock, 220mm of travel | WP-PDS Monoshock |
|
Trail
|
119.8 mm / 4.72 in. | 123 mm ↑ | 119.8 mm / 4.72 in. ↓ |
|
Max Torque
|
109 Nm / 80.4 lb.-ft. @ 6500 rpm | 80 lb.-ft. at 6500 rpm ↓ | 109 Nm / 80.4 lb.-ft. @ 6500 rpm ↑ |
