Key Specifications
Engine
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Power
33 kW / 44.3 hp @ 8500 rpm
Torque
39 Nm / 28.7 lb-ft @ 7000 rpm
Fuel Capacity
14 L / 3.7 US gal
Advertisement

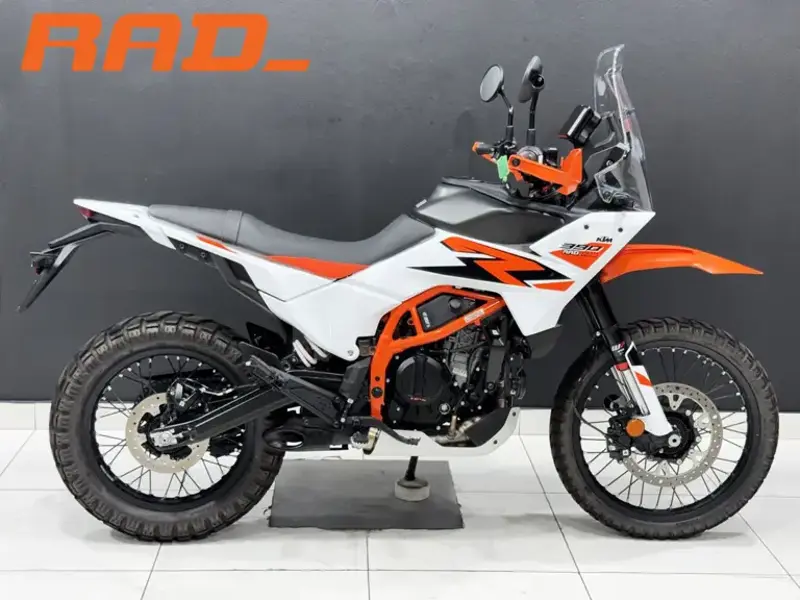

Full 2025 KTM 390 Adventure R Specifications
Year
2025
Make Model
KTM 390 Adventure R
Seat Height
870 mm / 34.3 in
Wheelbase
1481 mm / 58.3 in
Wet Weight (kg)
165
Fuel Capacity
14 L / 3.7 US gal
Wet Weight
165 kg / 364 lbs
Displacement
398.7 cc / 24.3 cu-in
Engine Detail
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Bore x Stroke
89 x 64 mm
Compression Ratio
12.6:1
Cooling System
Liquid Cooled
Emissions
EURO 5+
Engine Management
Bosch EMS with RBW
Fuel Induction
Bosch fuel injection, 46 mm throttle body
Lubrication
Wet sump
Starter
Electric
Clutch
PASC slipper clutch, mechanically operated
Final Drive
Chain 520-X Ring
Primary Drive
86:33
Transmission / Drive
6 Speed
Frame Type
Steel trellis frame, powder coated, with bolt-on subframe
Suspension - Front
43mm WP APEX 43, compression and rebound adjustble, 30 clicks
Suspension - Rear
WP APEX Split Piston, preload with top ring and rebound, 20 clicks
Steering Head Angle
63.1°
Wheel Travel - Front
230 mm / 9.1 in
Wheel Travel - Rear
230 mm / 9.1 in
Brakes - Front
Single
Brakes - Rear
Single 240 mm disc, Bybre floating 1 piston caliper
ABS
Bosch 10.3 Modular with Offroad mode
Tyres - Front
90/90 x R21 M/C 54T M+S
Tyres - Rear
140/80 x R18 M/C 70T M+S
Wheels
Wire spoke, aluminium rims
Wheels - Front
21 x 1.85
Wheels - Rear
18 x 2.5
