Key Specifications
Engine
Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.
Fuel Capacity
20 Litres / 5.2 US gal / 4.4 Imp gal
Advertisement

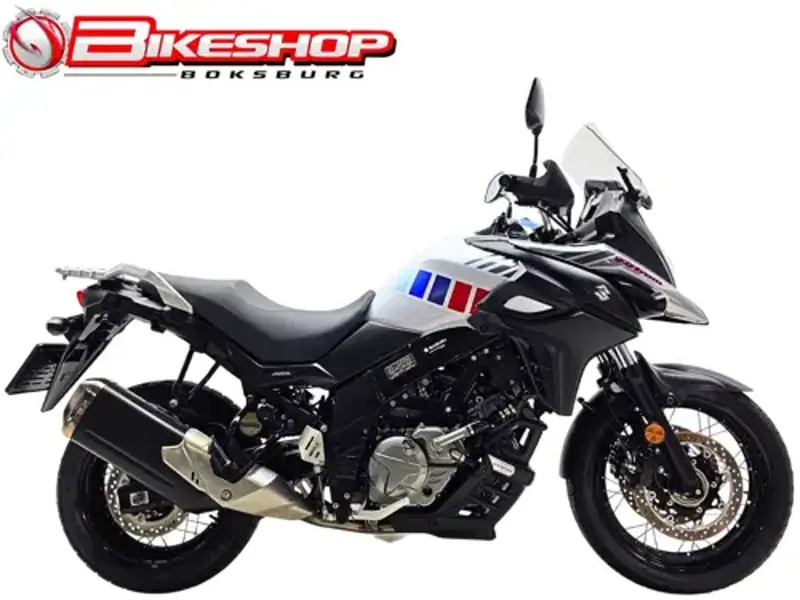

Full 2018 Suzuki DL 650 V-Strom Specifications
Year
2017 - 18
Make Model
Suzuki DL 650 V-Strom
Seat Height
830 mm / 32.7 in
Wheelbase
1560 mm / 61.4 in
Ground Clearance
175 mm / 6.9 in
Height
1405mm / 55.3 in
Length
2275 mm / 89.5 in
Width
910 mm / 35.8 in
Fuel Capacity
20 Litres / 5.2 US gal / 4.4 Imp gal
Oil Capacity
3.0 L (3.2 / 2.6 US / Imp qt)
Wet Weight
216 kg / 476 lbs
Displacement
645 cc / 39.4 cu-in
Engine Detail
Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.
Bore x Stroke
81 x 62.6 mm
Compression Ratio
11.2:1
Cooling System
Liquid cooled
Fuel Induction
Fuel Injection
Ignition
Electronic Ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multiple discs, cable operated
Final Drive
Chain, DID525V8, 118 links
Final Drive Ratio
3.133 (47 / 15)
Primary Drive Ratios
2.088 (71 / 34)
Transmission / Drive
6 Speed
Frame Type
Aluminium, twin spar
Suspension - Front
43mm Telescopic, coil spring, oil damped
Suspension - Rear
Link type, with adjustable rebound and spring preload
Rake
26°
Trail
110 mm / 4.3 in
Wheel Travel - Front
150 mm / 5.9 in
Wheel Travel - Rear
160 mm / 6.3 in
Brakes - Front
2 x 310 mm disc, 2 piston calipers, ABS
Brakes - Rear
Single 260 mm disc, 1 piston caliper, ABS
Tyres - Front
110/80R19M/C 59H
Tyres - Rear
150/70R17M/C 69H
