Key Specifications
Engine
Four stroke, transverse four cylinders, DOHC, 2 valve per cylinder.
Power
53.6 kW / 72 hp @ 8500 rpm
Torque
60 Nm / 6.1 kgf-m / 44.2 lb-ft @ 8250 rpm
Top Speed
180 km/h / 112 mph
Fuel Capacity
18 Litres / 4.8 US gal / 4.0 Imp gal
Advertisement

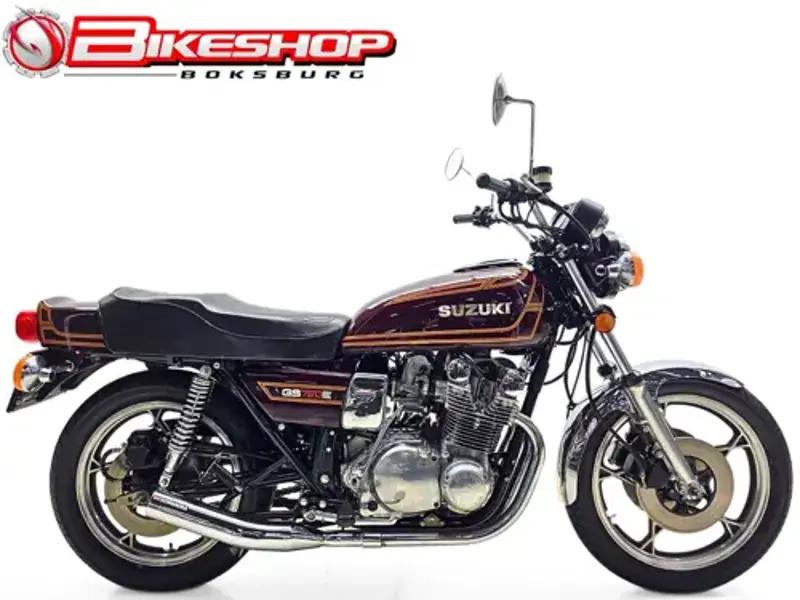

Full 1980 Suzuki GS 750E Specifications
Year
1980
Make Model
Suzuki GS 750E
Wheelbase
1490 mm / 58.7 in
Ground Clearance
150 mm / 5.9 in
Height
1170 mm / 46.1in
Length
2225 mm / 87.6 in
Turning Circle
2.5 m / 8.5 ft
Width
870 mm / 34.3 in
Dry Weight
223 kg / 492 lbs.
Fuel Capacity
18 Litres / 4.8 US gal / 4.0 Imp gal
Displacement
748 cc / 45.6 cu in
Engine Detail
Four stroke, transverse four cylinders, DOHC, 2 valve per cylinder.
Bore x Stroke
65 x 56.4 mm
Compression Ratio
8.7:1
Cooling System
Air cooled
Fuel Consumption
6.4 L/100 km / 15.6 km/l / 36.7 US mpg / 44.1 Imp mpg
Fuel Induction
4 x Mikuni VM26SS carburators
Fuel Reserve
2 Litres / 0.5 US gal / 0.44 Imp gal
Ignition
Battery, coil
Lubrication
Wet sump
Spark Plug
NGK B8ES
Starter
Electric & kick
Battery Capacity
12V 14AH/10 hr.
Clutch
Wet multi-plate
Final Drive
Chain, 630SO 96 link, O-ring .81/2 in. free-play
Final Drive Ratio
2.733 (41/15)
Gear Ratios
1st 2.571 (36/14) / 2nd 1.777 (32/18) / 3rd 1.380(29/21) / 4th 1.125 (27/24) / 5th 0.961 (25/26)
Primary Drive Ratios
2.152 (99/46)
Transmission / Drive
5 Speed
Suspension - Front
35mm Kayaba with anti dive adjustable air pressure.
Suspension - Rear
Dual shocks adjustable preload and spring rebound damping.
Steering Angle
40°
Steering Head Angle
63°
Trail
107 mm / 4.21 in
Brakes - Front
Single 292 mm disc, 1 piston caliper
Brakes - Rear
Single 292 mm disc ,1 piston caliper
Tyres - Front
3.25 H19
Tyres - Rear
4.00 H18
