Key Specifications
Engine
Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder.
Power
109 kW 146 hp @ 5750rpm
Torque
221Nm / 22.5 kgf-m / 163 ft.lbs @ 2750rpm
Fuel Capacity
24 Litres / 6.3 US gal / 5.3 Imp gal
Advertisement

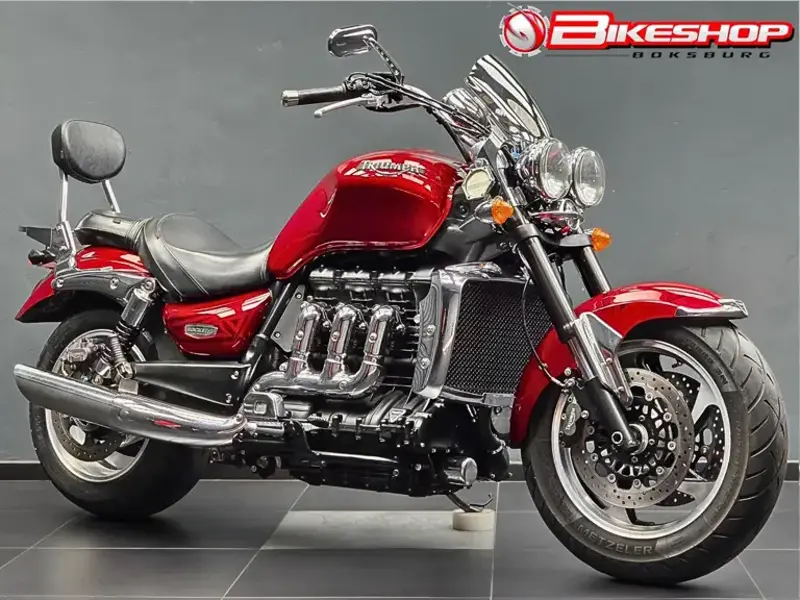

Full 2010 Triumph Rocket III Roadster Specifications
Year
2010
Make Model
Triumph Rocket III Roadster
Seat Height
750 mm / 29.5 in
Wheelbase
1695 mm / 66.7 in
Height
1165 mm / 45.8 in
Length
2500 mm / 98.3 in
Width
970 mm / 38.2 in (Handlebars)
Dry Weight (kg)
320
Wet Weight (kg)
367
Dry Weight
320 kg / 704 lbs
Fuel Capacity
24 Litres / 6.3 US gal / 5.3 Imp gal
Wet Weight
367 kg / 807 lbs
Displacement
2294 cc / 140 cu in
Engine Detail
Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
101.6 x 94.3 mm
Compression Ratio
8.7:1
Cooling System
Liquid cooled
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital inductive type via electronic engine management
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
Shaft
Gear Ratios
1st: 41/14 / 2nd: 37/19 / 3rd: 33/23 / 4th: 29/25 / 5th: 27/28
Transmission / Drive
5 Speed, constant mesh
Frame Type
Tubular steel, twin spine
Suspension - Front
Kayaba 43 mm upside down forks
Suspension - Rear
Kayaba black spring twin shocks with 5 position adjustable preload
Rake
32°
Trail
148 mm / 5.8 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
105 mm / 4.1 in
Brakes - Front
2 x 320 mm Discs, 4 piston calipers
Brakes - Rear
Single 316 mm disc, 2 piston caliper
Tyres - Front
150/80 V17
Tyres - Rear
250/50 V16
Wheels - Front
Alloy 5-spoke, 17 x 3.5in
Wheels - Rear
Alloy 5-spoke, 16 x 7.5in
