Key Specifications
Engine
Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Power
99 kW / 133 hp @ 9400 rpm
Torque
111 Nm / 11.3 kgf-m / 82 ft.lbs @ 7750rpm
Top Speed
253.8 km/h/ 157.7 mph
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Advertisement

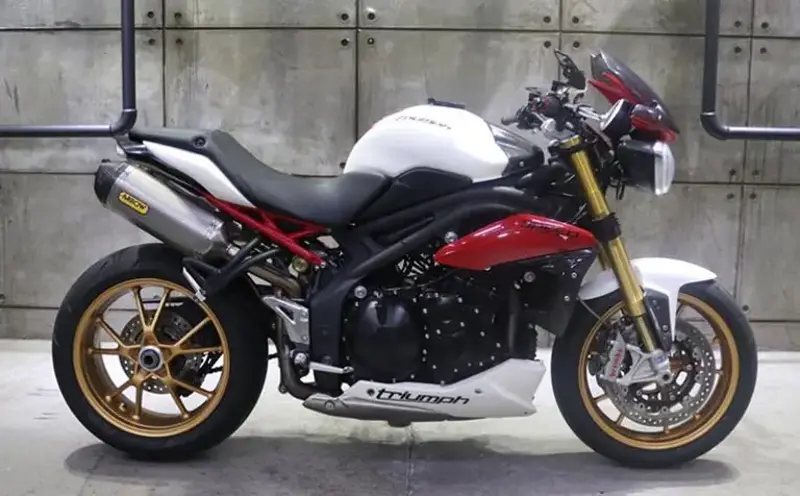

Full 2014 Triumph Speed Triple R Specifications
Year
2014
Make Model
Triumph Speed Triple R
Seat Height
825 mm / 32.5 in
Wheelbase
1435 mm / 56.5in
Height
without mirrors 1110mm / 43.7in
Length
2100 mm / 82.6in
Width
(handlebars) 795 mm / 31.3in
Wet Weight (kg)
212
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Wet Weight
212 kg / 466 lbs
Displacement
1050 cc / 64.1 cub in
Engine Detail
Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Bore x Stroke
79 x 71.4 mm
Compression Ratio
12.0:1
Cooling System
Liquid-cooled
Engine Oil Specification
10W/40 Synthetic
Exhaust
Stainless Steel 3 into 1 into 2, twin high level stainless steel silencers
Fuel Consumption
5.95 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg
Fuel Induction
Multipoint sequential electronic fuel injection with SAI
Ignition
Digital°inductive type via electronic engine management system
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
X ring chain
Transmission / Drive
6 Speed
Frame Type
Aluminium beam twin-spar
Suspension - Front
Öhlins 43 mm NIX30 upside down forks with adjustable rebound and compression damping,
Suspension - Rear
Öhlins TTX36 twin tube monoshock with rebound and compression damping
Rake
22.8°
Trail
90.9 mm / 3.6 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
130 mm / 5.1 in
Brakes - Front
2 x 320 mm Discs, 4 piston radial monoblock calipers, Brembo, switchable ABS
Brakes - Rear
Single 255 mm disc, 2 piston caliper, Nissen, switchable ABS
Tyres - Front
120/70 ZR 17
Tyres - Rear
190/55 ZR 17
Wheels - Front
Forged aluminium alloy 5 spoke, 17 x 3.5 in
Wheels - Rear
Forged aluminium alloy 5 spoke, 17 x 6.0 in
