Key Specifications
Engine
Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder
Power
121 hp / 90 kW @ 11,700rpm
Torque
56.8 lb-ft / 77 Nm @ 10,800 rpm
Weight
165.5 kg / 365 lbs
Fuel Capacity
17.4 Litres / 4.6 US gal / 3.8 Imp gal
Advertisement

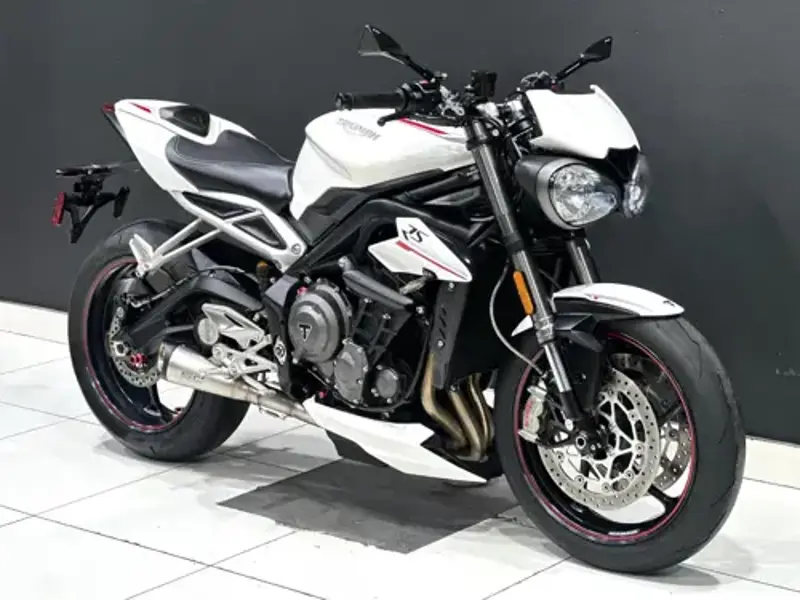

Full 2019 Triumph Street Triple 765RS Specifications
Year
2019
Make Model
Triumph Street Triple 765RS
Seat Height
825 mm / 32.4 in
Wheelbase
1410 mm / 55.5 in
Height
1085 mm / 42.7 in (without mirrors)
Length
2065 mm / 81.2 in
Dry Weight
165.5 kg / 365 lbs
Fuel Capacity
17.4 Litres / 4.6 US gal / 3.8 Imp gal
Displacement
765 cc / 46.6 cu-in
Engine Detail
Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder
Bore x Stroke
78 x 53.4 mm
Compression Ratio
12.65:1
Cooling System
Liquid-cooled
Exhaust
Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Fuel Induction
Multipoint sequential electronic fuel injection with SAI. Electronic throttle control
Ignition
Digital - inductive type
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate, slip and assist clutch
Final Drive
O ring chain
Transmission / Drive
6 Speed, close ratio
Frame Type
Front Aluminium beam twin spar. Rear 2 piece high pressure die cast
Suspension - Front
Showa 41 mm upside down big piston forks (BPF). Adjustable compression damping, rebound damping and preload.
Suspension - Rear
Öhlins STX40 piggyback reservoir monoshock. Adjustable spring preload (lock-rings), compression damping and rebound damping
Rake
23.9°
Trail
100 mm / 3.9 in
Wheel Travel - Front
115 mm / 4.5 in
Wheel Travel - Rear
131 mm / 5.1 in
Brakes - Front
2 x 310 mm floating discs, Brembo M50 4-piston radial monobloc calipers
Brakes - Rear
Single 220 mm fixed disc, Brembo single piston sliding calliper
Tyres - Front
120/70 ZR17 Pirelli Diablo Supercorsa SP
Tyres - Rear
180/55 ZR17 Pirelli Diablo Supercorsa SP
Wheels - Front
3.5 x 17 in cast
Wheels - Rear
5.5 x 17 in cast
