Key Specifications
Engine
Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Power
148 hp / 110.4 kW @ 9,000 rpm
Torque
130 Nm / 96 lb-ft @ 7,000 rpm
Weight
GT: 240kg / 529 lbs - GT Pro: 245kg / 540lbs
Fuel Capacity
20 Litres / 5.3 US gal
Advertisement

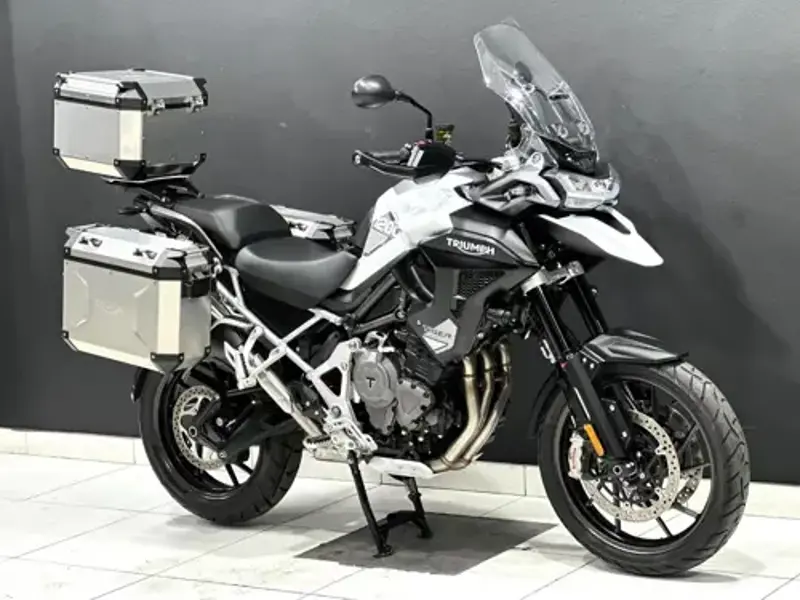

Full 2022 Triumph Tiger 1200GT / GT Pro Specifications
Seat Height
850 - 870 mm / 33.4 - 34.2 in (adjustable)
Wheelbase
1560 mm / 61.4 in
Height
1436 - 1497 mm / 56.5 - 58.9 in (adjustable screen)
Length
2245 mm / 88.3 in
Width
849 mm / 33.4 in (with handlebars)
Fuel Capacity
20 Litres / 5.3 US gal
Wet Weight
GT: 240kg / 529 lbs - GT Pro: 245kg / 540lbs
Displacement
1160 cc / 70.7 cub-in
Engine Detail
Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
90 x 60.7 mm
Compression Ratio
13.2:1
Cooling System
Liquid-cooled
Emissions
Euro 5
Exhaust
Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer
Fuel Induction
Multipoint sequential electronic fuel injection with electronic throttle control
Ignition
Digital
Starter
Electric
Clutch
Hydraulic, wet, multi-plate, slip & assist
Final Drive
Shaft
Transmission / Drive
6 Speed
Frame Type
Tubular steel frame, with forged aluminium outriggers. Fabricated, bolt-on aluminium rear subframe
Suspension - Front
Showa 49mm USD forks with semi-active damping
Suspension - Rear
Showa monoshock with semi-active damping and automatic electronic preload adjustment
Rake
24.1°
Swingarm
Twin sided "Tri-Link" aluminium swingarm with twin aluminium torque arms
Trail
120 mm / 4.7 in
Wheel Travel - Front
200 mm / 7.8 in
Wheel Travel - Rear
200 mm / 7.8 in
Instrumentation
Full-colour 7" TFT instrument pack with My Triumph Connectivity System
Brakes - Front
2 x 320 mm floating discs, Brembo M4.30 Stylema monoblock radial calipers, Magura HC1 span adjustable radial master cylinder with separate reservoir
Brakes - Rear
Single 282 mm disc, Brembo single piston caliper, rear master cylinder with remote reservoir
ABS
OC-ABS
Tyres - Front
Metzeler Tourance 120/70R19 (M/C 60V TL)
Tyres - Rear
Metzeler Tourance 150/70R18 (M/C 70V TL)
Wheels
Cast aluminium
Wheels - Front
19 x 3.0
Wheels - Rear
18 x 4.25
