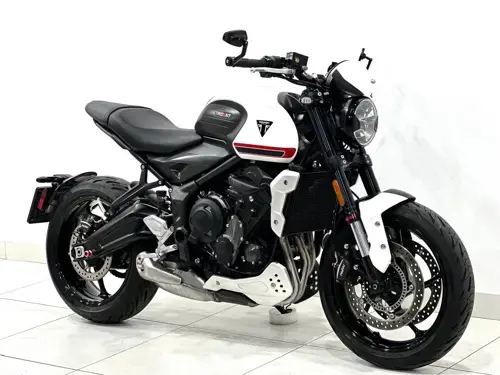

Triumph Trident 660 Specs
2021
• 1 variants
The Triumph Trident 660 is a sport motorcycle produced from 2021 across 1 variant. It is powered by a four stroke, transverse three cylinder, dohc, 4 valves per cylinder. Peak power output is 54 hp. Peak torque is 64 Nm.
About the Triumph Trident 660
Documented here are the full technical specifications for the Triumph Trident 660, a Sport motorcycle with a production run from 2021 to 2025. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.
Triumph Trident 660 by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2021
|
2025
|
|
Seat Height
|
805 mm / 31.7 in | 810 mm / 31.9 in ↑ |
|
Engine Detail
|
Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder | Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder |
|
Brakes - Front
|
2x 310mm discs Nissin 2-piston calipers | 2 x 310mm discs, 2-piston sliding calipers OCABS |
|
Wheelbase
|
1401 mm / 55.2 in | 1402 mm / 55.2 in ↑ |
|
Brakes - Rear
|
Single 255mm disc Nissin single-piston sliding caliper | Single 255mm disc Nissin single-piston sliding caliper OCABS |
|
Suspension - Rear
|
Showa monoshock RSU, with preload adjustment | Showa monoshock RSU, with preload adjustment |
|
Height
|
1089 mm / 42.9 in (excl Mirrors) | 1088 mm / 42.8 in (excl Mirrors) ↓ |
|
Length
|
2020 mm / 79.5 in | 2024 mm / 79.75 in ↑ |
|
Compression Ratio
|
11.1:1 | 11.95:1 ↑ |
|
Wet Weight
|
189 kg / 417 lbs | 195 kg / 430 lbs ↑ |
|
Emissions
|
Euro-5 | Euro 5+ ↑ |
|
Width
|
795 mm / 31.3 in (incl Handlebars) | 815 mm / 32.1 in (incl Handlebars) ↑ |
|
Rake
|
24.6° | 24.6° |
|
Transmission / Drive
|
6 Speed | 6 Speed Triumph Shift Assist |
|
Trail
|
107.3 mm / 4.2 in | 107.3 mm / 4.2 in |
|
Max Power
|
80 hp / 60 kW @ 10250 rpm | 81 hp / 59.6 kW @ 10250 rpm ↑ |
|
Wheel Travel - Rear
|
134 mm / 5.3 in | 130 mm / 5.1 in ↓ |
|
Max Torque
|
64 Nm / 47 lb-ft @ 6250 rpm | 64 Nm / 47 lb-ft @ 6250 rpm |
