Yamaha MT-09 Specs

2018 - 2019 • 2 variants

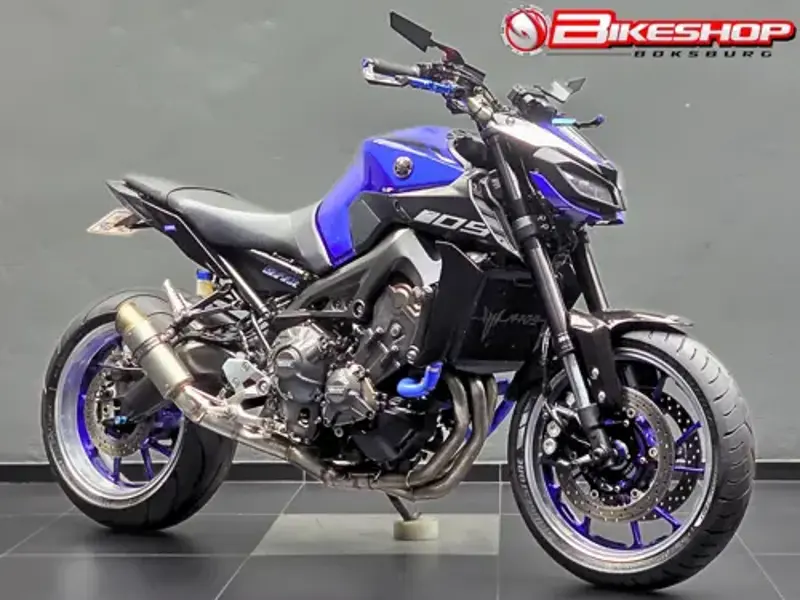

The Yamaha MT-09 is a naked bike produced from 2018 to 2019 across 2 variants. It is powered by a four stroke, transverse triple cylinder, dohc, 4 valve per cylinder. Peak power output is 115 hp. Peak torque is 87.5 Nm.

About the Yamaha MT-09

Documented here are the full technical specifications for the Yamaha MT-09, a Naked bike motorcycle with a production run from 2018 to 2024. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

AdSense - 728Ã90

Yamaha MT-09 by Year

2019 Yamaha MT-09 View specs →

2018 Yamaha MT-09 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2018	2019	2020	2021	2024
Frame Type	Diamond frame	Diamond frame	Diamond frame	Diamond frame	Controlled-fill die-cast aluminum with sub frame
Displacement	847 cc / 51.6 cu-in	847 cc / 51.6 cu-in	847 cc / 51.6 cu-in	889 cc / 54.2 cu-in ↑	889 cc / 54.2 cu-in
Seat Height	815 mm / 32.1 in	815 mm / 32.1 in	815 mm / 32.1 in	825.5 mm / 32.5 in ↑	825.5 mm / 32.5 in
Engine Detail	Four stroke, transverse triple cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse triple cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse triple cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder
Wheelbase	1440 mm / 56.7 in	1440 mm / 56.7 in	1440 mm / 56.7 in	1430 mm / 56.3 in ↓	1430 mm / 56.3 in
Brakes - Front	2x 298mm discs	2x 298mm discs	2x 298mm discs	2x 298mm hydraulic discs, 4-piston calipers	2x 298mm hydraulic discs, 4-piston calipers
Brakes - Rear	Single 245mm disc	Single 245mm disc	Single 245mm disc	Single 245mm hydraulic disc, single piston caliper	Single 245mm hydraulic disc, single piston caliper
Suspension - Front	Telescopic fork	Telescopic fork	Telescopic fork	41mm inverted fork, adjustable preload, compression and rebound	41mm KYB inverted fork, adjustable preload, compression and rebound
Suspension - Rear	Swingarm (link suspension)	Swingarm (link suspension)	Swingarm (link suspension)	Single shock, adjustable preload and rebound damping	Linkage, fully adjustable horizontal shock
Clutch	Wet multi-plate	Wet multi-plate	Wet multi-plate	Multiplate assist and slipper clutch	Multiplate assist and slipper clutch
Bore x Stroke	78 x 59.1 mm	78 x 59.1 mm	78 x 59.1 mm	78 x 62.1 mm	78 x 62.1 mm
Final Drive	O"-ring chain	O"-ring chain	O"-ring chain	O-ring chain	O-ring chain
Height	1135 mm ./ 44.7 in	1135 mm / 44.7 in	1135 mm ./ 44.7 in	1191 mm / 46.9 in ↑	1145 mm / 45.1 in ↓
Length	2075 mm / 81.7 in	2075 mm / 81.7 in	2075 mm / 81.7 in	1191 mm / 46.9 in ↓	1145 mm / 45.1 in ↓
Wet Weight	188 kg / 414 lbs - ABS 191 kg / 421 lbs	188 kg / 414 lbs - ABS 191 kg / 421 lbs	188 kg / 414 lbs - ABS 191 kg / 421 lbs	189 kg / 417 lbs ↑	193 kg / 425 lbs ↑
Tyres - Front	120/70 ZR17 M/C (58W) (Tubeless)	120/70 ZR17 M/C (58W) (Tubeless)	120/70 ZR17 M/C (58W) (Tubeless)	120/70 ZR17 M/C	120/70 ZR17 M/C
Width	815 mm / 32.1 in	815 mm / 32.1 in	815 mm / 32.1 in	795 mm / 31.3 in ↓	820 mm / 32.3 in ↑
Tyres - Rear	180/55 ZR17 M/C (73W) (Tubeless)	180/55 ZR17 M/C (73W) (Tubeless)	180/55 ZR17 M/C (73W) (Tubeless)	180/55 ZR17 M/C	180/55 ZR17 M/C
Rake	25°	25°	25°	25°	24.4° ↓
Transmission / Drive	6 Speed	6 Speed	Constant Mesh	6 Speed	6 Speed
Fuel Induction	Electronic Fuel Injection	Electronic Fuel Injection	Electronic Fuel Injection	Fuel injection with YCC-T	Fuel injection with YCC-T
Trail	103 mm / 4.0 in	103 mm / 4.0 in	103 mm / 4.0 in	109 mm / 4.3 in ↑	108 mm / 4.3 in ↓
Max Power	84.6 kW / 115 hp @ 10,000 rpm	84.6 kW / 115 hp @ 10,000 rpm	84.6 kW / 115 hp @ 10,000 rpm	117.4 hp / 119PS / 87.5 kW @ 10000 rpm ↑	117.4 hp / 119PS / 87.5 kW @ 10000 rpm
Wheel Travel - Front	137 mm / 5.3 in	137 mm / 5.3 in	137 mm / 5.3 in	130 mm / 5.1 in ↓	130 mm / 5.1 in
Wheel Travel - Rear	130 mm / 5.1 in	130 mm / 5.1 in	130 mm / 5.1 in	122 mm / 4.8 in ↓	117 mm / 4.6 in ↓
Ignition	Transistorized coil ignition	Transistorized coil ignition	Transistorized coil ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition
Max Torque	87.5 Nm / 8.9 kgf-m @ 8,500 rpm	87.5 Nm / 8.9 kgf-m @ 8,500 rpm	87.5 Nm / 8.9 kgf-m @ 8,500 rpm	93 Nm / 68.6lb-ft @ 7000 rpm ↑	93 Nm / 68.6lb-ft @ 7000 rpm
