Key Specifications
Engine
Four stroke, single cylinder, SOHC, 2 valves per cylinder.
Power
31.5 hp / 23.5 kW @ 6500 rpm
Torque
36.3 Nm / 26.8 lb-ft @ 5500 rpm
Top Speed
95 mph / 152.8 km/h
Weight
173 kg / 381.4 lbs
Fuel Capacity
12 Litres / 3.1 US gal
Advertisement

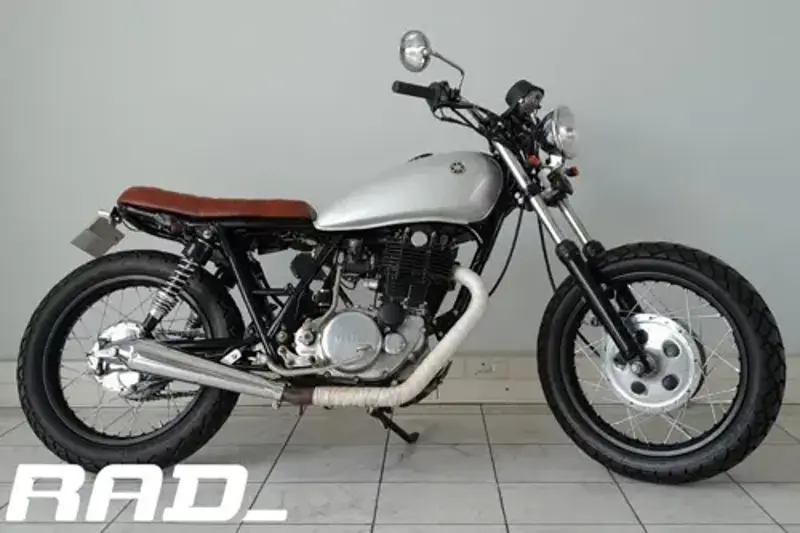

Full 1987 Yamaha SR 500 Specifications
Year
1984 - 87
Make Model
Yamaha SR 500
Seat Height
810 mm / 32 in
Wheelbase
1405 mm / 55.3 in
Height
1155 mm / 45.5 in
Width
845 mm / 33.3 in
Dry Weight
158 kg / 348 lbs
Fuel Capacity
12 Litres / 3.1 US gal
Oil Capacity
2.4 Litres
Wet Weight
173 kg / 381.4 lbs
Displacement
499 cc / 30.4 cu-in
Engine Detail
Four stroke, single cylinder, SOHC, 2 valves per cylinder.
Bore x Stroke
87 х 84 mm
Compression Ratio
9.0:1
Cooling System
Air cooled
Fuel Consumption
63 mpg
Fuel Induction
34mm Mikuni VM34SS carburetor
Ignition
CDI
Starter
Kick
Final Drive
Chain
Transmission / Drive
5 Speed
Frame Type
Half-duplex cradle
Suspension - Front
35mm telescopic forks
Suspension - Rear
Dual shock, 5-way adjustable spring preload.
Rake
27.5°
Trail
117 mm / 4.6 in
Wheel Travel - Front
150 mm / 5.9 in
Wheel Travel - Rear
105 mm / 4.1 in
Brakes - Front
Single 200mm disc
Brakes - Rear
150mm drum
Tyres - Front
3.50 S18
Tyres - Rear
4.00 S18
