| General |
| Comments | Model ID: XR650L | - |
| Year | 2013 - 14 | 2025 |
| Colours | Red | - |

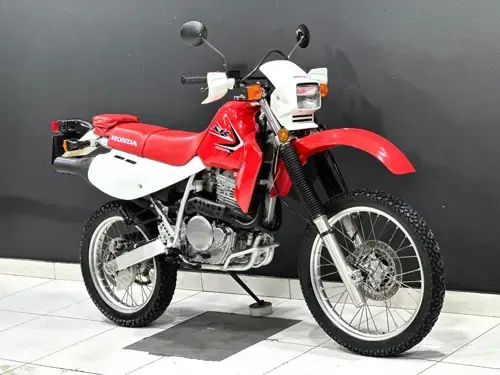

| Make Model | Honda XR 650L | KTM 790 Adventure |
| Warranty | One year. Unlimited milage. Transferable. | - |
| Dimensions |
| Wheelbase (mm) | 1,455 mm | - |
| Wheelbase (in.) | 57.3 inches | - |
| Seat Height (mm) | 940 mm | - |
| Length (mm) | 2,300 mm | - |
| Seat Height (in.) | 37.0 inches | - |
| Ground Clearance (in.) | 13.0 inches | - |
| Ground Clearance (mm) | 330 mm | - |
| Height (in.) | 57.7 inches | - |
| Height (mm) | 1,465 mm | - |
| Length (in.) | 90.6 inches | - |
| Seat Height | 940 mm / 37 in | 840 mm - 860 mm / 33.0 in - 33.8 in |
| Wheelbase | 1455 mm / 57.3 in | 1509 mm ± 15 mm / 59.4 ± 0.6 in |
| Ground Clearance | 330 mm / 13.0 in | 233 mm / 9.2 in |
| Height | 1,465 mm / 57.7 in. | - |
| Length | 2,300 mm / 90.6 in. | - |
| Weights & Capacities |
| Wet Weight (kg) | 156.9 kg | 203 |
| Wet Weight (lbs.) | 346.0 pounds | - |
| Dry Weight (kg) | 244.2 | - |
| Dry Weight (lbs.) | 538.4 pounds | - |
| Fuel Capacity (gal.) | 2.80 gallons | - |
| Fuel Capacity (l) | 10.60 litres | - |
| Dry Weight | 147 kg / 324 lbs | - |
| Fuel Capacity | 10.60 litres / 2.80 gallons | 20 Litres / 5.3 US gal |
| Oil Capacity | 1.9 Litres | - |
| Wet Weight | 156.9 kg / 346.0 lbs | 203 kg / 447 lbs |
| Performance |
| Max Power | 43.6 hp / 32.1 kW @ 6000 rpm | 95hp / 70.8 kW |
| Max Torque | 51.9 Nm / 5.3 kgf-m / 38.2 lb-ft @ 5000 rpm | 87 Nm / 64.1 lb-ft |
| Power-to-Weight Ratio | 0.3789 HP/kg | - |
| Engine |
| Fuel Reserve (l) | 4.00 litres | - |
| Fuel Reserve (gal.) | 1.06 gallons | - |
| Fuel Control | SOHC | - |
| Engine Type | Single cylinder, four-stroke | - |
| Bore x Stroke (mm) | 100.0 x 82.0 mm | - |
| Displacement (cc) | 644.00 cc | - |
| CO2 | 104.9 CO2 g/km. (CO2 - Carbon dioxide emission) | - |
| Bore x Stroke (in,) | 3.9 x 3.2 inches | - |
| Displacement (ci) | 39.30 cubic inches | - |
| Displacement | 644 cc / 39.35 cu-in | 799 cc / 48.7 cu-in |
| Engine Detail | Four stroke, single cylinder SOHC, 4 valve | Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder |
| Fuel System | Carburettor. 42.5mm diaphragm-type CV carburetor | - |
| Bore x Stroke | 100 x 82.6 mm | 88 mm x 65.7 mm |
| Compression Ratio | 8.3:1 | 12.5:1 |
| Cooling System | Air cooled | Liquid cooled |
| Emissions | Meets current CARB and EPA standards. California version differs slightly due to emissions equipment. | Euro 5 |
| Engine Lubrication | Dry sump | - |
| Engine Management | - | Bosch EMS with RBW |
| Exhaust | - | Stainless steel primary and secondary silencer |
| Fuel Consumption | 4.52 litres/100 km (22.1 km/l or 52.04 mpg) | - |
| Fuel Induction | 40 mm Diaphragm-type CV carburetor | DKK Dell'Orto, 46 mm Throttle Body |
| Fuel Reserve | 4.00 litres / 1.06 gallons | - |
| Ignition | Solid-state CD with electronic advance | - |
| Lubrication | Dry sump | Forced oil lubrication with 2 oil pumps |
| Starter | Electric | Electric |
| Valve System | 4 | - |
| Drivetrain |
| Clutch | Heavy duty multi-plate clutch | PASC (Power Assisted Slipper Clutch) antihopping clutch, mechanically operated |
| Final Drive | Chain | Chain 520 X-Ring |
| Gear Ratios | 1st 2.66 2nd 1.64 3rd 1.25 4th 1.00 5th .84 | - |
| Gearbox | 5-speed | - |
| Primary Drive | #520 O-ring-sealed chain; 15T/45T | 45:16 |
| Transmission / Drive | 5 Speed | 6 Speed |
| Chassis |
| Trail (mm) | 102 mm | - |
| Trail (in.) | 4.0 inches | - |
| Wheel Travel - Front (mm) | 295 mm | - |
| Wheel Travel - Front (in.) | 11.6 inches | - |
| Wheel Travel - Rear (mm) | 279 mm | - |
| Wheel Travel - Rear (in.) | 11.0 inches | - |
| Frame Type | - | Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated |
| Suspension - Front | 43 mm Showa forks, 16-way adjustable preload | WP APEX 43 |
| Suspension - Rear | Pro-link Kayaba fully adjustable | WP APEX - Monoshock |
| Rake | 27.0° | - |
| Steering Head Angle | - | 64.1° |
| Trail | 102 mm / 4.0 in | - |
| Wheel Travel - Front | 294 mm / 11.6 in | 200 mm / 7.9 in |
| Wheel Travel - Rear | 280 mm / 11 in | 200 mm / 7.9 in |
| Wheels & Brakes |
| Brakes - Rear Diameter (mm) | 256 mm | - |
| Brakes - Rear Diameter (in.) | 10.1 inches | - |
| Brakes - Front Diameter (mm) | 296 mm | - |
| Brakes - Front Diameter (in.) | 11.7 inches | - |
| Brakes - Front | Single 240 mm disc 2 piston caliper | 2x 320mm discs, 2x radially mounted 4 piston caliper |
| Brakes - Rear | Single 240 mm disc 1 piston caliper | Single 260mm disc, 2 piston floating caliper |
| ABS | - | Bosch 9.3 MP (incl. Cornering-ABS and off-road mode, disengageable) |
| Rims | Hollow-section triple-spoke cast aluminium | - |
| Tyres - Front | 80/100-21 | 90/90-21 |
| Tyres - Rear | 110/100-18 | 150/70-18 |
| Wheels | - | Spoked wheels with aluminium tubeless rims |
| Wheels - Front | - | 2.50 x 21 |
| Wheels - Rear | - | 4.50 x 18 |
