Key Specifications
Engine
Single cylinder, four-stroke
Power
43.6 hp / 32.1 kW @ 6000 rpm
Torque
51.9 Nm / 5.3 kgf-m / 38.2 lb-ft @ 5000 rpm
Fuel Capacity
10.60 litres / 2.80 gallons
Advertisement

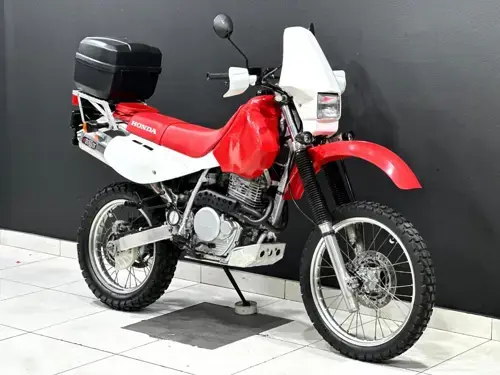

Full 2014 Honda XR 650L Specifications
Comments
Model ID: XR650L
Comments
Model ID: XR650L
Year
2013 - 14
Colours
Red
Colours
Red
Make Model
Honda XR 650L
Warranty
One year. Unlimited milage. Transferable.
Warranty
One year. Unlimited milage. Transferable.
Ground Clearance (mm)
330 mm
Ground Clearance (in.)
13.0 inches
Ground Clearance (mm)
330 mm
Ground Clearance (in.)
13.0 inches
Seat Height
940 mm / 37.0 in.
Seat Height
940 mm / 37 in
Wheelbase
1,455 mm / 57.3 in.
Wheelbase
1455 mm / 57.3 in
Ground Clearance
330 mm / 13.0 in
Height
1,465 mm / 57.7 in.
Length
2,300 mm / 90.6 in.
Dry Weight
147 kg / 324 lbs
Fuel Capacity
10.60 litres / 2.80 gallons
Fuel Capacity
10.6 Litres / 2.8 US gal
Oil Capacity
1.9 Litres
Wet Weight
156.9 kg / 346.0 lbs
Wet Weight
158 kg / 348 lbs
Fuel Control
SOHC
Fuel Control
Single Overhead Cams (SOHC)
Engine Type
Single cylinder, four-stroke
Engine Type
Single cylinder, four-stroke
CO2
104.9 CO
Bore x Stroke (in,)
3.9 x 3.2 inches
Bore x Stroke (mm)
100.0 x 82.0 mm
CO2
104.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement
644 cc / 39.35 cu-in
Engine Detail
Four stroke, single cylinder SOHC, 4 valve
Fuel System
Carburettor. 42.5mm diaphragm-type CV carburetor
Fuel System
Carburettor. 42.5mm diaphragm-type CV carburetor
Bore x Stroke
100 x 82.6 mm
Compression Ratio
8.3:1
Compression Ratio
8.3:1
Cooling System
Air cooled
Emissions
Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Emissions
Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Engine Lubrication
Dry sump
Engine Lubrication
Dry sump
Fuel Consumption
4.52 litres/100 km (22.1 km/l or 52.04 mpg)
Fuel Consumption
4.52 litres/100 km (22.1 km/l or 52.04 mpg)
Fuel Induction
40 mm Diaphragm-type CV carburetor
Fuel Reserve
4.00 litres / 1.06 gallons
Ignition
Solid-state CDI
Ignition
Solid-state CD with electronic advance
Lubrication
Dry sump
Starter
Electric
Valve System
4
Clutch
Heavy duty multi-plate clutch
Final Drive
#520 O-ring-sealed chain; 15T/45T
Final Drive
Chain
Gear Ratios
1st 2.66 2nd 1.64 3rd 1.25 4th 1.00 5th .84
Gearbox
5-speed
Gearbox
5-speed
Primary Drive
#520 O-ring-sealed chain; 15T/45T
Primary Drive
#520 O-ring-sealed chain; 15T/45T
Transmission / Drive
5 Speed
Suspension - Front
43 mm Showa forks, 16-way adjustable preload
Suspension - Front
43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability
Suspension - Rear
Pro-link Showa® single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability
Suspension - Rear
Pro-link Kayaba fully adjustable
Rake
27.0°
Rake
27°
Trail
102 mm / 4.0 in
Trail
102 mm / 4.0 in.
Wheel Travel - Front
294 mm / 11.6 in
Wheel Travel - Front
295 mm / 11.6 in.
Wheel Travel - Rear
280 mm / 11 in
Wheel Travel - Rear
279 mm / 11.0 in.
Brakes - Rear Diameter (mm)
256 mm
Brakes - Rear Diameter (in.)
10.1 inches
Brakes - Front Diameter (mm)
296 mm
Brakes - Front Diameter (in.)
11.7 inches
Brakes - Front
Double disc. Two-piston calipers.
Brakes - Front
Single 240 mm disc 2 piston caliper
Brakes - Rear
Single disc
Brakes - Rear
Single 240 mm disc 1 piston caliper
Rims
Hollow-section triple-spoke cast aluminium
Tyres - Front
3.00-21
Tyres - Front
80/100-21
Tyres - Rear
4.60-18
Tyres - Rear
110/100-18
