Key Specifications
Engine
Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Power
217 hp / 159.6 kW @ 13200 rpm
Torque
122 Nm / 90 lb-ft @ 11000 rpm [115 Nm at 10,500 rpm]
Fuel Capacity
18.5 Litres / 4.9 US gal
Advertisement

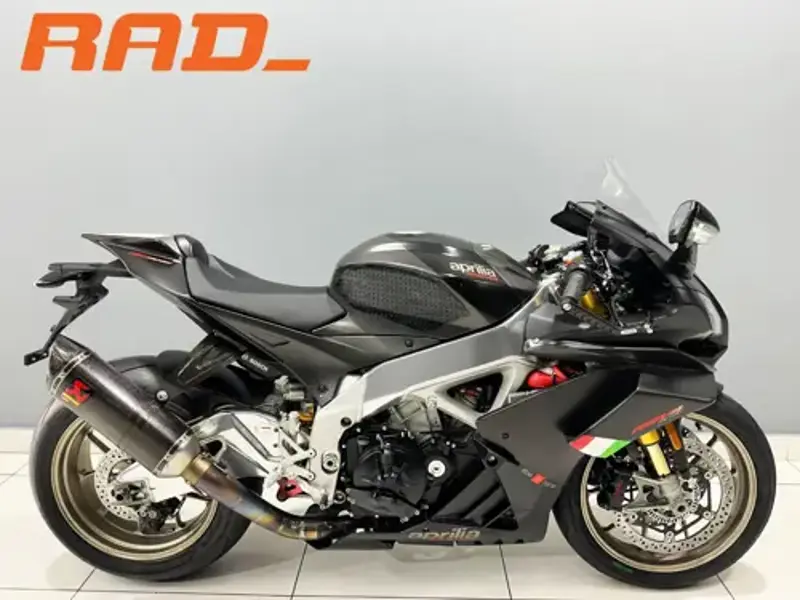

Full 2019 Aprilia RSV-4 Factory Specifications
Year
2019
Make Model
Aprilia RSV-4 Factory
Seat Height
853 mm / 33.5 in
Wheelbase
1441.6 mm / 56.7 in
Ground Clearance
130 mm / 5.1 in
Length
2055 mm / 80.9 in
Width
735 mm / 28.9 in (at the handlebar)
Dry Weight
182 kg / 401 lbs
Fuel Capacity
18.5 Litres / 4.9 US gal
Wet Weight
204 kg / 450 lbs
Displacement
1077 cc / 85.7 cu-in
Engine Detail
Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Bore x Stroke
81 x 52.3 mm
Compression Ratio
13.6:1
Cooling System
Liquid cooled
Emissions
Euro 4
Exhaust
4 into 2 into 1 layout, two lambda probes, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter
Fuel Induction
Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: Track, Sport, Race
Fuel Reserve
4 Liters / 1.1 US gal
Ignition
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and °stick-coil"-type coils
Lubrication
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Starter
Electric
Clutch
Multi-disc oil bath with mechanical slipper system
Final Drive
Chain
Transmission / Drive
6 Speed gearbox cassette type
Frame Type
Aluminium dual beam chassis with pressed and cast sheet elements Available adjustments: headstock position and rake; engine height; swingarm pin height. Smart EC 2.0 electronically managed Öhlins steering damper
Suspension - Front
Smart EC 2.0 electronically managed Öhlins NIX fork. 43 mm stanchions, with TIN surface treatment. [Sachs fork with 43 mm stanchions]; Aluminium radial calliper mounting bracket. Adjustable spring pre-load and hydraulic compression and rebound damping.
Suspension - Rear
Double braced aluminium swingarm; mixed low thickness and sheet casting technology. Öhlins TTX monoshock with Smart EC 2.0 electronically managed piggy-back, fully adjustable in: spring pre-load, wheelbase and hydraulic compression and rebound damping.
Steering Angle
24.5°
Trail
103 mm / 4.0 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
130 mm / 5.1 in
Traction control
APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), cruise control (ACC) and speed limiter (APT), all of which can be configured and deactivated independently
Alternator
Flywheel mounted 450 W alternator with rare earth magnets
Brakes - Front
2 x 330-mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo StylemaØ [M50] monobloc radial callipers with 4 30 mm opposing pistons. Sintered pads. Radial pump and metal braided brake hose
Brakes - Rear
Single220 mm diameter disc; Brembo calliper with two 32 mm separate pistons. Sintered pads. Pump with integrated tank and metal braided hose Bosch 9.1 MP ABS with cornering function, adjustable to 3 maps equipped with RLM (Rear wheel Lift-up Mitigation) (can be disabled).
Tyres
Radial tubeless
Tyres - Front
120/70 ZR17
Tyres - Rear
200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17)
Wheels
Aprilia in aluminium alloy wheels with 3 split spoke design
Wheels - Front
3.5 x 17
Wheels - Rear
6.0 x 17
