Key Specifications
Torque
86.0 Nm (8.8 kgf-m or 63.4 ft.lbs) @ 6250 Revolutions">RPM
Fuel Capacity
23.00 litres
Advertisement

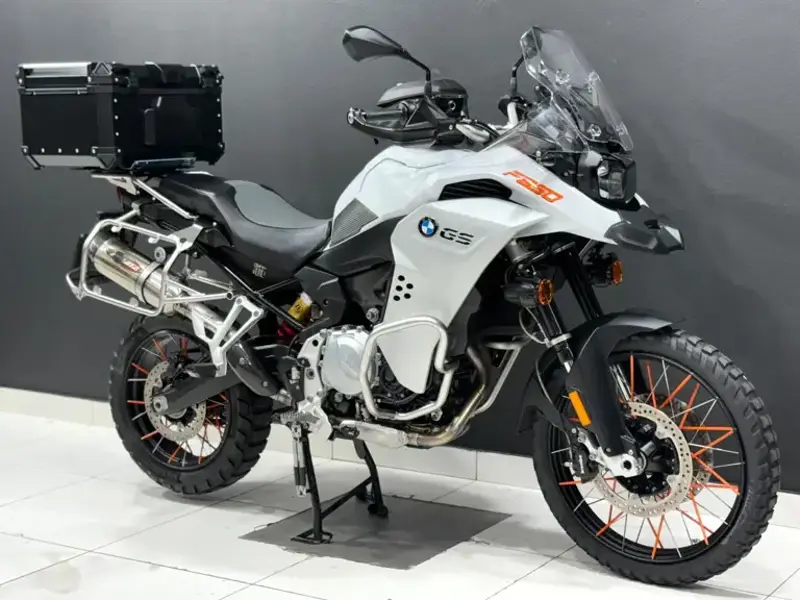

Full 2023 BMW F 850GS Adventure Specifications
Comments
Adjustable windshield. Selectable Ride Modes (Rain, Road). Automatic Stability Control.
Colours
Light white, Triple Black, Kalamata Metallic Matt
Warranty
Up to 3-years or 36,000 miles
Width (mm)
939 mm
Width (in.)
37.0 inches
Wheelbase (mm)
1593 mm
Wheelbase (in.)
62.7 inches
Storage
Luggage rack
Seat Heigth -Alternate (mm)
890 mm
Seat Heigth -Alternate (in.)
35.0 inches
Seat Height (mm)
875 mm
Seat Height (in.)
34.4 inches
Length (mm)
2300 mm
Length (in.)
90.6 inches
Height (mm)
1437 mm
Height (in.)
56.6 inches
Wet Weight (lbs.)
537.9 pounds
Wet Weight (kg)
244.0 kg
Oil Capacity (Quarts)
3.17 US quarts
Oil Capacity (l)
3.00 litres
Fuel Capacity (l)
23.00 litres
Fuel Capacity (gal.)
6.08 US gallons
Fuel Reserve (l)
3.50 litres
Fuel Reserve (gal.)
0.92 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Twin, four-stroke
Displacement (ci)
52.05 cubic inches
Displacement (cc)
853.0 cc
CO2
95.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
84.0 x 77.0 mm
Bore x Stroke (in,)
3.3 x 3.0 inches
Fuel System
Injection
Compression Ratio
12.7:1
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-4
Engine Lubrication
Dry sump
Fuel Consumption
4.10 litres/100 km (24.4 km/l or 57.37 mpg)
Idle Speed
1250 RPM
Spark Plug
NGK LMAR8J-9E
Starter
Electric
Valve System
4
Clutch
Multiple-disc clutch in oil bath, mechanically operated
Final Drive
Chain (final drive)
Gearbox
6-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Fork Tube Size (in.)
1.7 inches
Fork Tube Size (mm)
43 mm
Trail (in.)
4.9 inches
Trail (mm)
124 mm
Wheel Travel - Front (in.)
9.1 inches
Wheel Travel - Front (mm)
230 mm
Wheel Travel - Rear (in.)
8.5 inches
Wheel Travel - Rear (mm)
215 mm
Frame Type
Tubular steel space, load bearing engine
Suspension - Front
Upside-down telescopic fork, Ø 43 mm
Suspension - Rear
Cast aluminium dual swing arm, central WAD spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable
Rake
28.0°
Lighting system
LED headlamps
Brakes - Front
Double disc. Switchable ABS. Floating discs. Two-piston calipers.
Brakes - Rear
Single disc. Switchable ABS. Floating disc. Single-piston caliper.
Brake Fluid Type
DOT 4
Rims
Wire spoke wheels
Tyre Pressure - Front
32 PSI (2.2 Bar or 220 kPa)
Tyre Pressure - Rear
36 PSI (2.5 Bar or 250 kPa)
Tyres - Front
90/90-21
