Full Specifications
General
Year
2020
Make Model

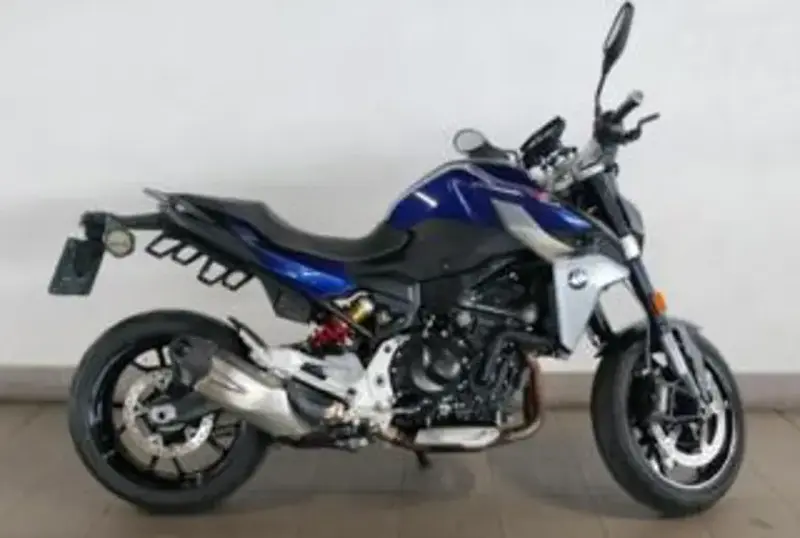

BMW F 900R
Dimensions
Seat Height
815 mm / 32.0 in (OE suspension lowering kit: 770 mm, OE low seat: 790 mm, OA high seat: 835 mm, OA comfort seat: 840 mm, OE extra high seat: 865 mm)
Wheelbase
1518 mm / 59.7 in
Height
1130 mm / 44.4 om
Length
2140 mm / 84.2 in
Width
815 mm / 32.0 in
Weights & Capacities
Fuel Capacity
13 Litres / 3.4 US gal
Wet Weight
211 kg / 465 lbs
Performance
Max Power
78 kW / 105 hp @ 8500 rpm
Max Torque
92 Nm / 67 .8 lb-ft @ 6500 rpm
Engine
Displacement
895 cc / 54.6 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
86 x 77 mm
Compression Ratio
13.1:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-5
Fuel Induction
Electronic injection
Ignition
Electronic
Starter
Electric
EV Specifics
Battery Capacity
12 V / 12 Ah, maintenance-free
Drivetrain
Clutch
Multiple-disc wet clutch (anti hopping), mechanically operated
Final Drive
Endless O-ring chain with shock damping in rear wheel hub
Transmission / Drive
Constant mesh 6-speed gearbox integrated in crankcase
Chassis
Frame Type
Bridge-type frame, steel shell construction
Suspension - Front
43mm Upside-down telescopic fork
Suspension - Rear
Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable
Steering Head Angle
60,5°
Trail
114.3 mm / 4.5 in
Wheel Travel - Front
135 mm / 5.3 in
Wheel Travel - Rear
142 mm / 5.5 in
Electrical Systems
Alternator
permanent magnetic alternator 416 W (nominal power)
Wheels & Brakes
Brakes - Front
2X 320mm floating discs, 4-piston radial brake calipers
Brakes - Rear
Single 265mm discs, single-piston floating caliper
ABS
BMW Motorrad ABS
Tyres - Front
120/70 ZR 17
Tyres - Rear
180/55 ZR 17
Wheels
Cast aluminium wheels
Wheels - Front
3.50 x 17
Wheels - Rear
5.50 x 17
