Full Specifications
General
Year
2022
Make Model

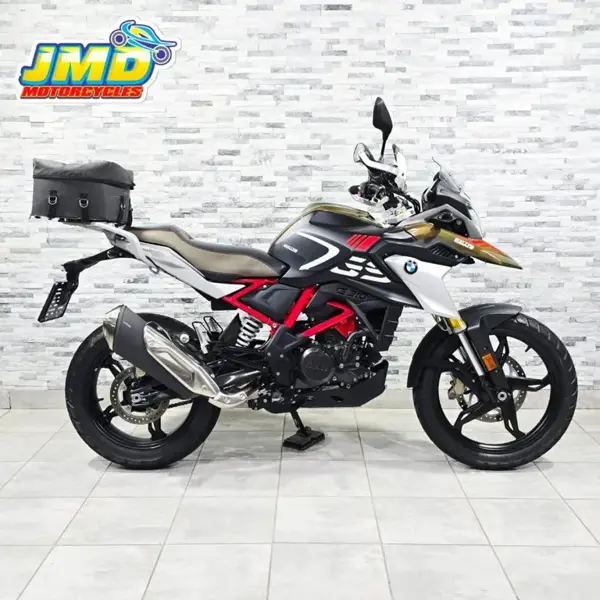

BMW G 310GS
Dimensions
Seat Height
835 mm / 32.9 in 820 mm / 32.2 in Low Seat 850 mm / 33.5 in Comfort Seat
Wheelbase
1420 mm / 55.9 in
Height
1230 mm / 48.2 in (excl. mirrors)
Length
2075 mm / 81.7 in
Width
878 mm / 34.6 in (incl. mirrors)
Weights & Capacities
Fuel Capacity
11 Litres / 2.9 US gal
Wet Weight
175 kg / 385.8 lbs
Performance
Max Power
25 kW / 34 hp @ at 9500
Max Torque
28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Engine
Displacement
313 cc / 19.1 cu-in
Engine Detail
Four stroke, rRearward-canted single-cylinder, DOHC, 4 valves
Bore x Stroke
80 x 62.1 mm
Compression Ratio
10.9:1
Cooling System
Liquid cooled
Emissions
Euro 5
Exhaust
Single, closed-loop 3-way catalytic converter
Fuel Induction
EFI with front-intake 42mm throttle body
Ignition
Electronic
Lubrication
Wet sump
Starter
Electric
EV Specifics
Battery Capacity
12 V / 8 Ah, Maintenance free
Drivetrain
Clutch
Wet multi-disc with assist-and-slipper function
Final Drive
Z-ring chain
Transmission / Drive
6-speed
Chassis
Frame Type
Tubular steel frame with bolted rear frame
Suspension - Front
41mm Upside-down fork, non-adjustable
Suspension - Rear
Linkage-free spring-preload adjustable shock
Rake
26.7°
Steering Head Angle
63.3°
Trail
98 mm / 3.86 in
Wheel Travel - Front
180 mm / 7.1 in
Wheel Travel - Rear
180 mm / 7.1 in
Electrical Systems
Alternator
308 W
Wheels & Brakes
Brakes - Front
Single 300mm disc, 4-piston fixed caliper, radially bolted
Brakes - Rear
Single 240mm disc, single-piston floating caliper
ABS
BMW Motorrad ABS
Tyres - Front
110/80 - R19
Tyres - Rear
150/70 - R17
Wheels - Front
Cast aluminium, 5-spoke, 2.50 x 19
Wheels - Rear
Cast aluminium, 5-spoke, 4.0 x 17
