Key Specifications
Engine
Single cylinder, four-stroke
Power
37 kW / 50 hp @ 6500 rpm
Torque
44.00 Nm (4.5 kgf-m or 32.5 ft.lbs) @ 5000 Revolutions
Top Speed
169.0 km/h / 105.0 mph
Fuel Capacity
14.00 litres / 3.70 gallons
Advertisement

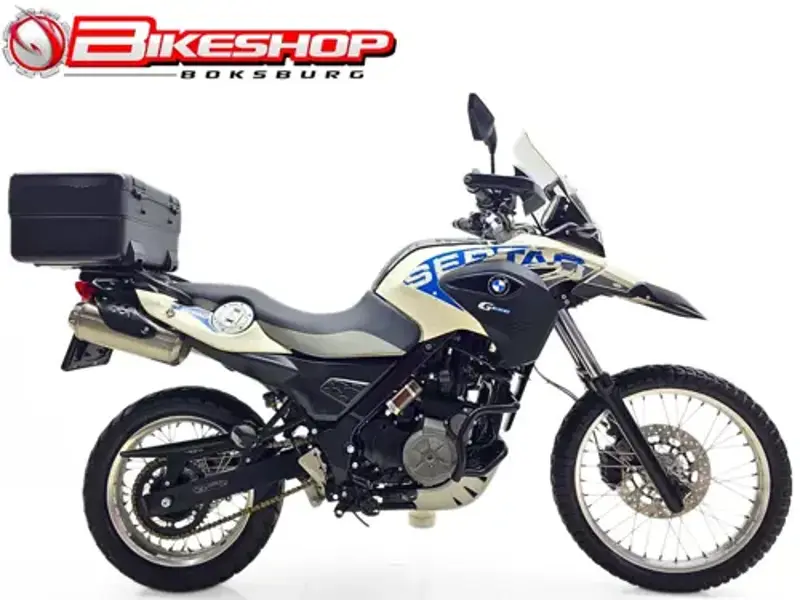

Full 2015 BMW G 650GS Sertao Specifications
Comments
High windscreen. Heated grips.
Comments
High windscreen. Heated grips.
Year
2014 - 15
Colours
Blue/white
Colours
Blue/white
Make Model
BMW G 650GS Sertao
Storage
Luggage rack
Storage
Luggage rack
Seat Height
861 mm / 33.9 in.
Seat Height
860 mm to 900 mm / 33.9 in. to 35.4 in.
Wheelbase
1,483 mm / 58.4 in.
Wheelbase
1484 mm / 58.4 in.
Height
1,440 mm / 56.7 in.
Height
1440 mm / 56.7 in.(excl. mirrors)
Length
2,185 mm / 86.0 in.
Length
2185 mm / 86 in.
Width
919 mm / 36.2 in.
Width
920 mm / 36.2 in. (incl. mirrors)
Dry Weight
176.9 kg / 390.0 lbs
Dry Weight
177 kg / 390 lbs
Fuel Capacity
14.00 litres / 3.70 gallons
Fuel Capacity
14 Litres / 3.7 US gal
Wet Weight
192.8 kg / 425.0 lbs
Wet Weight
191 kg / 421 lbs
Bore x Stroke (in,)
3.9 x 3.3 inches
Bore x Stroke (mm)
100.0 x 83.0 mm
CO2
73.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
652.00 cc
Displacement (ci)
39.79 cubic inches
Engine Type
Single cylinder, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Single cylinder, four-stroke
CO2
73.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement
652 cc / 39.8 cub. in.
Engine Detail
Four stroke, single cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection / BMW engine management, twin-spark ignition
Fuel System
Injection. Electronic intake pipe injection / BMW engine management, twin-spark ignition
Bore x Stroke
100 x 83mm
Compression Ratio
11.5:1
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-3
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-3
Engine Lubrication
Dry sump
Engine Lubrication
Dry sump
Fuel Consumption
3.18 litres/100 km (31.4 km/l or 73.97 mpg)
Fuel Consumption
3.18 litres/100 km (31.4 km/l or 73.97 mpg)
Fuel Induction
Fuel induction
Fuel Reserve
3.79 litres / 1.00 gallons
Fuel Reserve
3.79 litres / 1.00 gallons
Ignition
Capacitor Discharge Ignition system
Starter
Electric
Starter
Electric
Valve System
4
Valve System
4
Clutch
Multiple-disc clutch in oil bath, mechanically operated
Clutch
Multiple-disc clutch in oil bath, mechanically operated
Final Drive
Chain
Final Drive
Chain
Gearbox
5-speed
Gearbox
5-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Transmission / Drive
5 Speed
Frame Type
Bridge-type steel section frame with bolted-on rear section
Frame Type
Bridge-type steel section frame with bolted-on rear section
Suspension - Front
41mm telescopic fork with stabilizer bridge
Suspension - Front
ABS. Telescopic fork, 41 mm, fork stabilizer
Suspension - Rear
Spring setting and rebound stage damping continuously adjustable,
Suspension - Rear
ABS. Box-section steel dual swing arm, central spring strut operated by lever system, spring preload hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Rake
28.1°
Rake
28.1°
Steering Head Angle
61.9°
Trail
122 mm / 4.8 in.
Trail
123 mm / 4.8 in
Wheel Travel - Front
210 mm / 8.3 in
Wheel Travel - Front
211 mm / 8.3 in.
Wheel Travel - Rear
210 mm / 8.3 in
Wheel Travel - Rear
211 mm / 8.3 in.
Brakes - Front Diameter (in.)
11.8 inches
Brakes - Front Diameter (mm)
300 mm
Brakes - Rear Diameter (in.)
9.4 inches
Brakes - Rear Diameter (mm)
240 mm
Brakes - Front Diameter (in.)
11.8 inches
Brakes - Front Diameter (mm)
300 mm
Brakes - Rear Diameter (in.)
9.4 inches
Brakes - Rear Diameter (mm)
240 mm
Brakes - Front
Single 300mm disc, 2 piston caliper
Brakes - Front
Single disc. Floating discs. Two-piston calipers. Switchable ABS.
Brakes - Rear
Single 240mm disc, 1 piston caliper
Brakes - Rear
Single disc. Floating disc. Single-piston caliper. Switchable ABS.
ABS
BMW Motorrad ABS (can be switched off)
Rims
Wire spoke wheels
Rims
Wire spoke wheels
Rims - Front
1.60 x 21"
Tyres - Front
90/90 S21
Tyres - Front
90/90-21
Tyres - Rear
130/80-17
Tyres - Rear
130/80-17
Wheels
Wire spoke wheels
Wheels - Rear
3.00 x 17"
