Comments
|
“Rain”, “Road”, “Dynamic”, “Race”“ and “Race Pro 1-3” riding modes. Dynamic Traction Control. Cruise control. Heated grips. | “Rain”, “Road”, “Dynamic”, “Race”“ and “Race Pro 1-3” riding modes. Dynamic Traction Control. Cruise control. Heated grips. Windshield. | - |
|
Dry Weight
|
170 kg / 375 lbs 169.6 kg / 374 lbs - M Competition Package without battery | - | 171 kg / 377 lbs |
|
Frame Type
|
Bridge-type frame, cast aluminium, load-bearing engine | Bridge-type, cast aluminum, load-bearing engine | Bridge-type frame, cast aluminium, load-bearing engine |
|
Brakes - Front
|
2x 320mm discs, M Brake 4-piston fixed caliper | Double disc. ABS. Floating discs. Four-piston calipers. | M 2x 320mm discs, M Brake 4-piston fixed caliper |
|
Wheelbase
|
1457 mm / 57.4 in. | 1457 mm / 57.4 in. | 1457 mm / 57.3 |
|
Engine Detail
|
Four stroke, transverse four cylinder, DOHC, 4 titanium valves per cylinder and BMW ShiftCam | Titanium valves | Four stroke, transverse four cylinder, DOHC, 4 titanium valves per cylinder and BMW ShiftCam |
|
Brakes - Rear
|
Single 220 mm disk, 2-piston fixed caliper | Single disc. ABS. Floating disc. Two-piston fixed caliper. | M single 220 mm disk, 2-piston fixed caliper |
|
Fuel Capacity
|
16.5 Litres / 4.4 US gal | 16.50 litres / 4.36 US gallons | 16.5 Litres / 4.4 US gal |
|
Suspension - Front
|
Upside-down telescopic fork with a diameter of 45 mm, adjustable compression and rebound stage, adjustable preload | Upside-down telescopic fork, diameter 45 mm, spring preload, rebound and compression stages adjustable | 45mm Upside-down telescopic fork, spring preload, rebound and compression stages adjustable |
|
Suspension - Rear
|
Aluminium swing arm, compression and rebound damping adjustable, adjustable preload | Aluminum swing arm, full floater pro, compression and rebound damping adjustable, adjustable spring preload | Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable spring preload |
|
Top Speed
|
306.0 km/h / 190.1 mph | 304.2 km/h / 189.0 mph ↓ | - |
|
Fuel System
|
Injection. Electronic fuel injection with ride-by-wire throttle system, variable intake, and knock sensor | Injection. Electronic injection, variable intake pipe | - |
|
Colours
|
White/light blue/dark blue/red. | White/light blue/dark blue/red, Black storm/light blue/dark blue/red, | - |
|
Clutch
|
Multiplate clutch in oil bath, slipper clutch | Multiplate clutch in oil bath, slipper clutch | Multiplate clutch in oil bath, anti-hopping clutch |
|

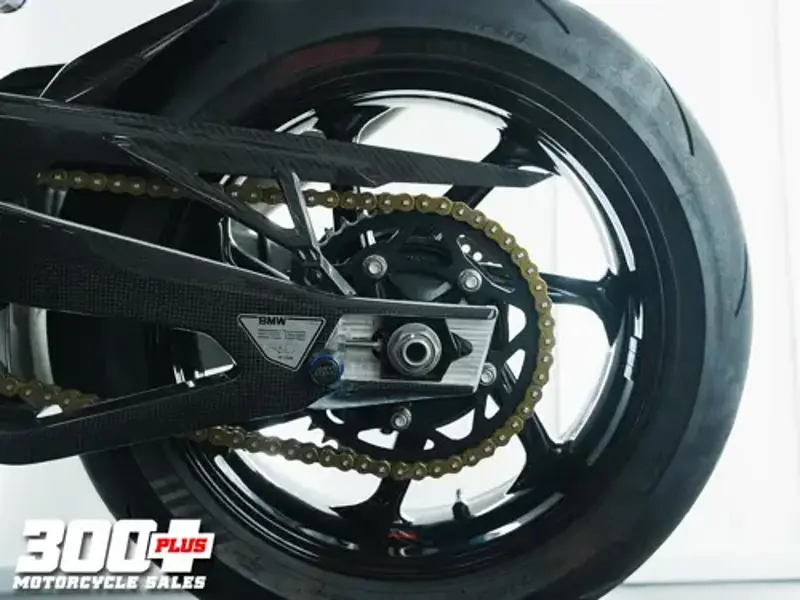

Final Drive
|
Chain (final drive) | Chain (final drive) | Chain 525 17/46 |
|
Height
|
1151 mm / 45.3 in. | 1224 mm / 48.2 in. ↑ | 1228 mm / 43.3 in ↑ |
|
Length
|
2073 mm / 81.6 in. | 2085 mm / 82.1 in. ↑ | 2085 mm / 82.1 in |
|
Wet Weight
|
192 kg / 423 lbs | 193.0 kg / 425.5 lbs ↑ | 194 kg / 427.7 lbs ↑ |
|
Compression Ratio
|
13.5:1 | 13.5:1 | 14.5:1 ↑ |
|
Cooling System
|
Water/oil cooled | - | Air/Water/Oil cooled |
|
Emissions
|
Euro 5. Controlled three-way catalytic converter | Euro 5. Controlled three-way catalytic converter | Closed-loop 3-way catalytic converters, EU-5 ↓ |
|
Tyres - Front
|
120/70-ZR17 | 120/70-ZR17 | 120/70 ZR17 |
|
Width
|
848 mm / 33.4 in. | 899 mm / 35.4 in. ↑ | 899 mm / 35.3 in |
|
Rake
|
23.6° | 23.8° ↑ | 24° ↑ |
|
Lighting system
|
Low-beam headlight LED twin circular headlights in free-form technology. High-beam headlight LED free-form surface/modular system. | LED-Headlight, Taillight and Turn Signals | - |
|
Transmission / Drive
|
Constant-mesh 6-speed gearbox with straight cut gears | - | Claw-shifted 6-speed gearbox with straight cut gears |
|
Trail
|
100 mm / 3.9 in | 101 mm / 4.0 in. ↑ | 865 mm / 32.7 in ↑ |
|
Wheel Travel - Front
|
120 mm / 4.7 in | 120 mm / 4.7 in. | 120 mm / 4.7 in |
|
Max Power
|
156 kW / 212 hp @ 14500 rpm | - | 160 kW / 214 hp @ 14500 rpm |
|
Wheel Travel - Rear
|
117 mm / 4.6 in | 118 mm / 4.6 in. ↑ | 118 mm / 4.6 in |
|
Max Torque
|
113 Nm / 83 lb-ft @ 11000 rpm | 113.0 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 11000 Revolutions" | 113 Nm / 83 lb-ft @ 11000 rpm |
|
Starter
|
Electric, 0.8 kW | Electric | Electric, 0.8 kW |
