Key Specifications
Engine
In-line four, four-stroke
Torque
113.0 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 11000 Revolutions"
Top Speed
304.2 km/h / 189.0 mph
Weight
193.0 kg / 425.5 lbs
Fuel Capacity
16.50 litres / 4.36 US gallons
Advertisement

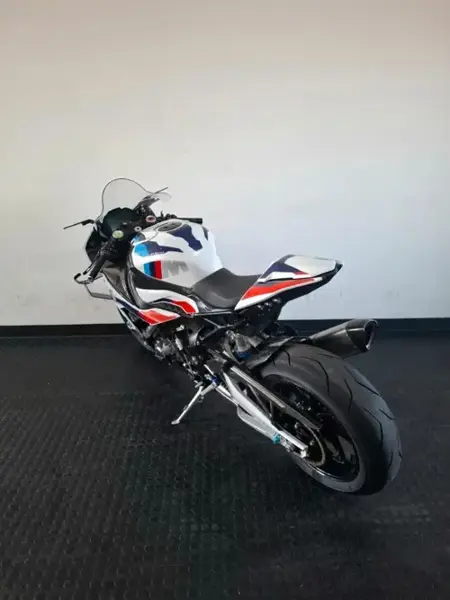

Full 2023 BMW M 1000RR Specifications
Comments
“Rain”, “Road”, “Dynamic”, “Race”“ and “Race Pro 1-3” riding modes. Dynamic Traction Control. Cruise control. Heated grips. Windshield.
Colours
White/light blue/dark blue/red, Black storm/light blue/dark blue/red,
Seat Height
832 mm / 32.8 in.
Wheelbase
1457 mm / 57.4 in.
Height
1224 mm / 48.2 in.
Length
2085 mm / 82.1 in.
Width
899 mm / 35.4 in.
Oil Capacity (Quarts)
4.23 US quarts
Oil Capacity (l)
4.00 litres
Fuel Capacity
16.50 litres / 4.36 US gallons
Coolant Capacity
2.00 litres (0.53 US gallons)
Wet Weight
193.0 kg / 425.5 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
60.96 cubic inches
Displacement (cc)
999.0 cc
CO2
150.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Engine Detail
Titanium valves
Fuel System
Injection. Electronic injection, variable intake pipe
Compression Ratio
13.5:1
Emissions
Euro 5. Controlled three-way catalytic converter
Engine Lubrication
Wet sump
Fuel Consumption
6.50 litres/100 km (15.4 km/l or 36.19 mpg)
Fuel Reserve
4.00 litres / 1.06 US gallons
Idle Speed
1270 +/- 50 RPM
Starter
Electric
Valve System
4
Chain Size
525
Clutch
Multiplate clutch in oil bath, slipper clutch
Final Drive
Chain (final drive)
Gearbox
6-speed
Sprocket
17/46 (front/rear)
Fork Tube Size (in.)
1.8 inches
Fork Tube Size (mm)
45 mm
Frame Type
Bridge-type, cast aluminum, load-bearing engine
Suspension - Front
Upside-down telescopic fork, diameter 45 mm, spring preload, rebound and compression stages adjustable
Suspension - Rear
Aluminum swing arm, full floater pro, compression and rebound damping adjustable, adjustable spring preload
Rake
23.8°
Seat
Optional passenger seat, passenger cover and rear footrests
Trail
101 mm / 4.0 in.
Wheel Travel - Front
120 mm / 4.7 in.
Wheel Travel - Rear
118 mm / 4.6 in.
Instrumentation
6.5-inch TFT display.
Lighting system
LED-Headlight, Taillight and Turn Signals
Brakes - Front
Double disc. ABS. Floating discs. Four-piston calipers.
Brakes - Rear
Single disc. ABS. Floating disc. Two-piston fixed caliper.
Brake Fluid Type
DOT 4
Rims
Carbon wheels
Tyre Pressure - Front
36 PSI (2.5 Bar or 250 kPa)
Tyre Pressure - Rear
42 PSI (2.9 Bar or 290 kPa)
Tyres - Front
120/70-ZR17
