Key Specifications
Engine
Four stroke, two cylinder horizontally opposed Boxer, 2 valves per cylinder
Power
51 kW / 70 hp / @ 7000 rpm
Torque
76 Nm / 7.75 kgf-m / 56 ft-lb @ 6000 rpm
Top Speed
196 km/h / 121.5 mph
Fuel Capacity
24 Litres / 6.3 US gal
Advertisement

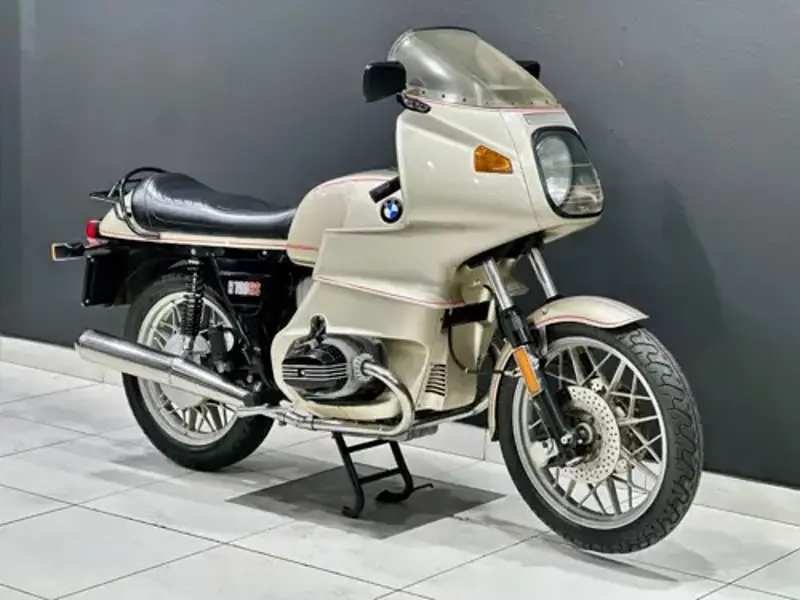

Full 1985 BMW R 100RS Specifications
Year
1984 - 85
Make Model
BMW R 100RS
Seat Height
820 mm / 32.3 in
Wheelbase
1465 mm / 57.67 in
Ground Clearance
165 mm / 6.49 in
Height
1300 mm / 51.8 in
Length
2130 mm / 83.8 in
Width
746 mm / 29.37 in
Fuel Capacity
24 Litres / 6.3 US gal
Wet Weight
230 kg / 506 lbs
Displacement
980 cc / 59.8 cub in.
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, 2 valves per cylinder
Bore x Stroke
94 x 70.6 mm
Compression Ratio
9.5:1
Cooling System
Air cooled
Fuel Consumption
4.8 L/100 km / 20.8 km/l / 49 US mpg
Fuel Induction
2 x Constant depression carburettors, Bing 94/40/105 - 94/40/106
Ignition
Battery ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Dry single plate, with diaphragm spring
Final Drive
Shaft
Final Drive Gear Ratio (Bevel/Crown Teeth)
11/32 teeth or 10/32 teeth
Gear Ratios
1st 3.38 / 2nd 2.43 / 3rd 1.93 / 4th 1.67 / 5th 1.50
Gear Ratios
1st 4.40 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50:1
Transmission / Drive
5 Speed
Frame Type
Double sown tubs, dual cradle
Suspension - Front
Telescopic fork with hydraulic shock absorber.
Suspension - Rear
Long swinging arm with adjustable strut.
Wheel Travel - Front
200 mm / 7.8 in
Wheel Travel - Rear
125 mm / 4.9 in
Alternator
Bosch 12V/240 W
Brakes - Front
2 x ∅260mm discs, 2 piston calipers
Brakes - Rear
Simplex ∅200 mm drum
Tyres - Front
3.25 - H19
Tyres - Rear
4.00 - H18
Wheel Ratio - Rear
1:2.91 or 1:3.00
Wheels - Front
2.15 - B19
Wheels - Rear
2.50 - B18
