Key Specifications
Engine
Two cylinder boxer
Power
70 kW / 95 hp @ 7250 rpm
Torque
98 Nm / 10.0 kgf-m / 72.3 ft-lb / @ 5500 rpm
Top Speed
197.0 km/h / 122.4 mph
Weight
238 kg / 524.7 lbs
Fuel Capacity
20.00 litres / 5.28 gallons
Advertisement

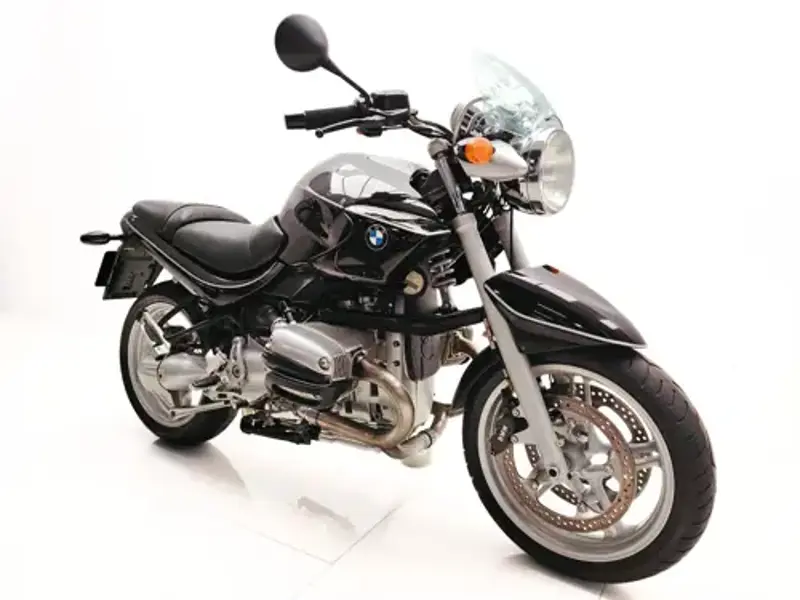

Full 2002 BMW R 1150R Specifications
Year
2001 - 02
Make Model
BMW R 1150R
Seat Heigth -Alternate (mm)
800 mm
Seat Heigth -Alternate (in.)
31.5 inches
Seat Height
800 mm / 31.5 in.
Seat Height
800 mm / 31.5 in (Low seat 770 mm / 30.3 in)
Wheelbase
1487 mm / 59.4 in
Height
1220 mm / 48.0 in
Length
2170 mm / 85.4 in
Width
940 mm / 37.0 in
Dry Weight
238 kg / 524.7 lbs
Dry Weight
218 kg / 480 lbs
Fuel Capacity
20.00 litres / 5.28 gallons
Fuel Capacity
20.4 Liters / 5.3 gal
Wet Weight
238 kg / 524.7 lbs
Stroke
4
Engine Type
Two cylinder boxer
Displacement (ci)
68.95 cubic inches
Displacement (cc)
1130.00 cc
Bore x Stroke (mm)
70.0 x 101.0 mm
Bore x Stroke (in,)
2.8 x 4.0 inches
Stroke
4
Engine Type
Two cylinder boxer
Displacement
1130 cc / 69 cu in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Fuel System
Injection
Bore x Stroke
101 x 70.5 mm
Compression Ratio
10.3:1
Cooling System
Air/Oil cooled
Fuel Consumption
5.56 L/100 km / 18.0 km/l / 42.3 US mpg
Fuel Induction
Bosch Motronic MA 2.4 Fuel injection
Fuel Reserve
4.00 litres / 1.06 gallons
Ignition
Electronic ignition MA 2.2 Bosch Motronic
Lubrication
Wet sump
Starter
Electric
Valve System
4
Valve System
4
Clutch
Dry, single plate, hydraulic operated
Final Drive
Shaft
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Transmission / Drive
6 Speed
Frame Type
Three section composite frame consisting of front & rear section, load bearing engine
Suspension - Front
Telelever with central spring strut & linear-rate coil spring. Twin-tube gas-filled shock
Suspension - Rear
Patented BMW Paralever swingarm & shaft drive, single tube gas filled shock, variable rebound setting
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Front
135 mm / 5.3 in.
Wheel Travel - Rear
135 mm / 5.3 in
Wheel Travel - Rear
120 mm / 4.7 in.
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Rear Diameter (mm)
276 mm
Brakes - Front
2 x 320 mm discs, 4 piston calipers
Brakes - Rear
Single 276 mm disc, 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Front
120/70-ZR17
Tyres - Rear
170/60 ZR17
Tyres - Rear
170/60-ZR17
