Full Specifications
General
Year
2011
Year
2011
Make Model

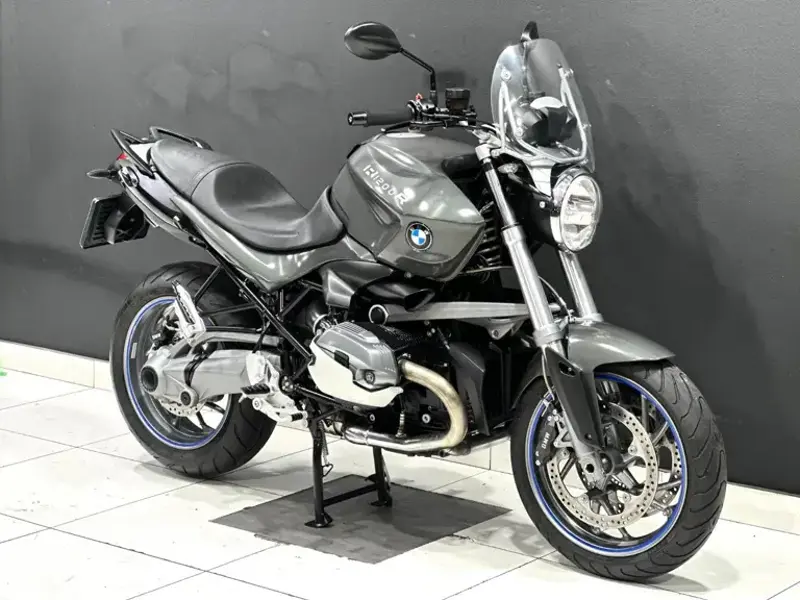

BMW R 1200R
Make Model
BMW R 1200R
Dimensions
Seat Height
800mm / 31.5 in (Standard, OE, OA, sport seat) 830mm / 32.7 in (OE, OA, comfort seat, high) / 760mm / 29.9 in (OE, OA, seat, low) / 750mm / 29.5 in (OE, low slung)
Seat Height
800mm / 31.5" (Standard, OE, OA, sport seat) 830mm / 32.7" (OE, OA, comfort seat, high) / 760mm / 29.9" (OE, OA, seat, low) / 750mm / 29.5" (OE, low slung)
Wheelbase
1495 mm / 59.1 in
Wheelbase
1495 mm / 59.1 in
Height
1273 mm / 50.1 in (excl. mirrors)
Height
1273 mm / 50.1 in (excl. mirrors)
Length
2145 mm / 84.4 in
Length
1273 mm / 50.1 in (excl. mirrors)
Width
906 mm / 35.6 in (incl. mirrors)
Width
906 mm / 35.6 in (incl. mirrors)
Weights & Capacities
Dry Weight
198 kg / 436.5 lbs
Dry Weight
198 kg / 436.5 lbs
Fuel Capacity
18 Litres / 4.7 US gal
Fuel Capacity
18 Litres / 4.7 gal
Wet Weight
223 kg / 492 lbs
Wet Weight
223 kg / 492 lbs
Performance
Top Speed
220 km/h / 137 mph
Top Speed
220 km/h / 137 mph
Acceleration (0-100 km/h)
3.4 sec
Acceleration (0-100 km/h)
3.4 sec
Acceleration (60-100 / 100-140 / 140-180 km/h)
3.9 sec / 4.0 sec / 5.0 sec
Acceleration (60-100 / 100-140 / 140-180 km/h)
3.9 sec / 4.0 sec / 5.0 sec
Acceleration (60-140 km/h)
7.9 sec
Acceleration (60-140 km/h)
7,9 sec
Max Power
81 kW / 110 hp @ 7750 rpm
Max Power
81 kW / 110 hp @ 7750 rpm
Max Torque
120 Nm / 12.2 kgf-m / 88 lb-ft @ 6000 rpm
Max Torque
120 Nm / 12.2 kgf-m / 88 lb-ft @ 6000 rpm
Standing Start 0-140 km/h
6.4 sec
Standing Start 0-140 km/h
6.4 sec
Standing Start 0-200 km/h
15.0 sec
Standing Start 0-200 km/h
15,0 sec
Engine
Displacement
1170 cc / 71.4 cu in
Displacement
1170 cc / 71.4 cu in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder
Bore x Stroke
101 x 73 mm
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Compression Ratio
11.0:1
Cooling System
Air/Oil-cooled
Cooling System
Air/Oil-cooled
Fuel Consumption
5.2 L/100 km / 19.2 km/l / 45.2 mpg
Fuel Consumption
5.2 L/100 km / 19.2 km/l / 45.2 US mpg
Fuel Induction
Electronic intake manifold injection BMS-K
Fuel Induction
Electronic intake manifold injection BMS-K
Ignition
Digital engine management
Ignition
Digital engine management
Starter
Electric
Starter
Electric
EV Specifics
Battery Capacity
12 V / 14 Ah, maintenance-free
Battery Capacity
12 V / 14 Ah, maintenance-free
Drivetrain
Clutch
Single disc dry clutch, hydraulically actuated
Clutch
Single disc dry clutch, hydraulically actuated
Final Drive
Shaft
Final Drive
Shaft
Gear Ratios
1st 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 0.065 / 5th 0.939 / 6th 0.848
Gear Ratios
1st 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 0.065 / 5th 0.939 / 6th 0.848
Transmission / Drive
6 Speed
Transmission / Drive
6 Speed
Chassis
Frame Type
Tubular steel spaceframe, load-bearing engine
Frame Type
Tubular steel spaceframe, load-bearing engine
Suspension - Front
BMW Motorrad Telelever; stanchion diameter 41 mm, central spring strut
Suspension - Front
BMW Motorrad Telelever; stanchion diameter 41 mm, central spring strut
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Steering Head Angle
62.9°
Steering Head Angle
62.9°
Trail
119.1 mm / 4.7 in
Trail
119.1 mm / 4.7 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
140 mm / 5.5 in
Wheel Travel - Rear
140 mm / 5.5 in
Electrical Systems
Alternator
Three-phase alternator 720 W
Alternator
Three-phase alternator 720 W
Wheels & Brakes
Brakes - Front
2 x 320mm Discs, ABS
Brakes - Front
2 x 320mm Discs, ABS
Brakes - Rear
Single 265mm disc, ABS
Brakes - Rear
Single 265mm disc, ABS
Rims - Front
3.50 x 17
Rims - Rear
5.50 x 17
Tyres - Front
120/70-ZR 17
Tyres - Front
120/70-ZR 17
Tyres - Rear
180/55-ZR 17
Tyres - Rear
180/55-ZR 17
Wheels
Cast aluminium wheels
Wheels
Cast aluminium wheels
Wheels - Front
3.50 x 17''
Wheels - Rear
5.50 x 17''
