Full Specifications
General
Year
201
Make Model

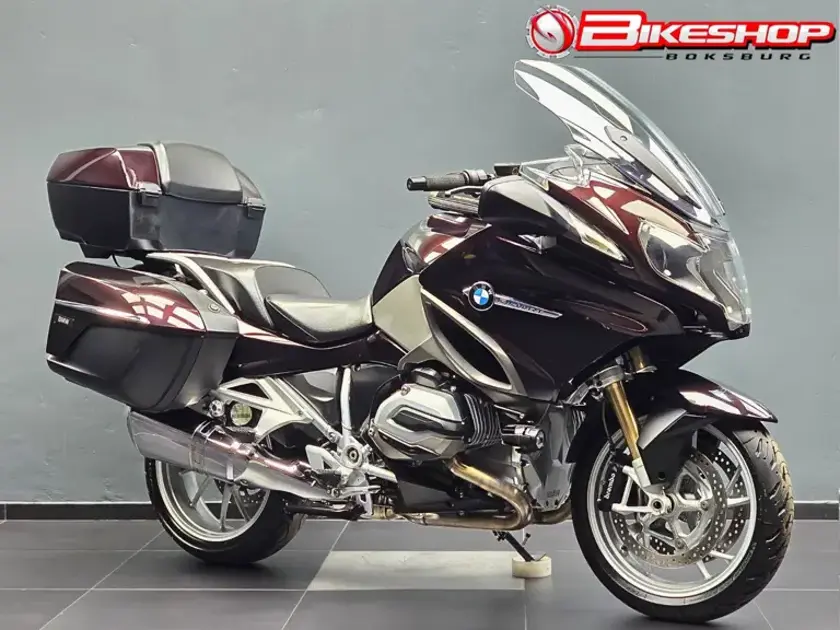

BMW R 1200RT LC
Dimensions
Seat Height
805 mm / 31.5 in - 825 mm / 32.5 in Variable seat heights available between 760mm / 29.9 in and 850mm / 33.5 in
Wheelbase
1485 mm / 58.5 in
Height
1416 mm / 55.7 in
Length
2222 mm / 87.5 in
Width
983 mm / 38.7 in
Weights & Capacities
Fuel Capacity
25 Litres / 6.6 US gal
Wet Weight
274 kg / 604 lbs
Performance
Max Power
92 kW / 125 hp @ 7750 rpm
Max Torque
125 Nm / 92 lb-ft @ 6500 rpm
Engine
Displacement
1170 cc / 71.4 cu-in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer with balancer shaft, DOHC, 4 valves per cylinder
Bore x Stroke
101 x 73 mm
Compression Ratio
12.5:1
Cooling System
Air/Liquid cooled
Emissions
Euro 3
Exhaust management
Fully-controlled three-way catalytic converter
Fuel Induction
Electronic fuel injection with ride-by-wire throttle system, 52mm throttle valve Emission control Closed-loop 3-way catalytic converter
Fuel Reserve
4 Litres / 1 US gal
Ignition
Digital engine management
Lubrication
Wet sump
Starter
Electric
EV Specifics
Battery Capacity
12 V / 16 Ah, maintenance-free
Drivetrain
Clutch
Multi-plate wet clutch, hydraulically operated
Final Drive
Shaft
Gear Ratios
1st 2.438 / 2nd 1.714 / 3rd 1.296 / 4th 1.059 / 5th 0.943 / 6th 0.848:1
Primary Drive Ratios
1.65
Transmission / Drive
6 Speed, constant-mesh gearbox with helical cut gears
Chassis
Frame Type
Continuous tubular steel bridge-type frame
Suspension - Front
BMW Telelever, 37 mm central spring strut
Suspension - Rear
Cast aluminum single-sided swing arm with BMW EVO Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) via handwheel, rebound damping adjustable via handwheel
Steering Head Angle
63.6°
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
136 mm / 5.4 in
Electrical Systems
Alternator
Three-phase 540 W generator
Wheels & Brakes
Brakes - Front
2 x 320mm Discs, 4 piston callipers
Brakes - Rear
Single 276mm disc, 2 piston floating caliper
ABS
BMW Motorrad Integral ABS (part-integral)
Rims - Front
3.50 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheel Caster
116 mm / 4.6 in
Wheels
Cast aluminium wheels
