Full Specifications
General
Year
2011
Make Model

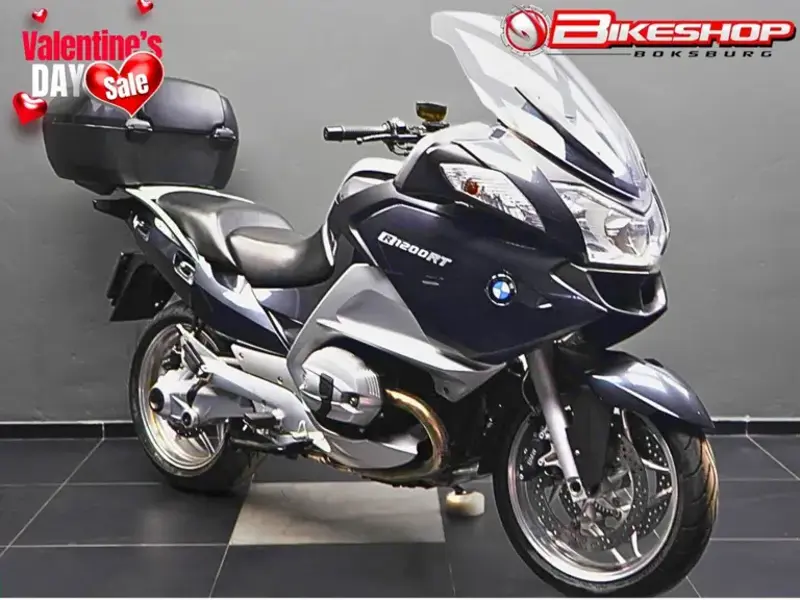

BMW R 1200RT
Dimensions
Seat Height
820 mm - 840 mm / 32.2 in - 33.0 in 780 mm - 800 mm / 30.7 - 31.4 in (special equipment low seat bench)
Wheelbase
1485 mm / 58.4 in
Ground Clearance
155 mm / 6.1 in
Length
2230 mm / 79.9 in
Width
905 mm / 35.6 in (incl. mirrors) 980 mm / 38.5 in (incl. panniers)
Weights & Capacities
Dry Weight
229 kg / 485.0 lbs
Fuel Capacity
27 Liters / 7.1 US gal
Wet Weight
259 kg / 570.9 lbs
Performance
Top Speed
210 km/h / 130.5 mph
Acceleration (60-140 km/h)
9.8 sec
Max Power
81kW / 110 hp @ 7500 rpm
Max Torque
115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm
Standing Start 0-100 km
3.7 sec
Standing Start ¼ Mile
12.2 sec
Engine
Displacement
1170 cc / 71.4 cu in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Cooling System
Air/Oil cooled
Fuel Consumption
5.3 L/100 km / 19.0 km/l / 44.7 US mpg
Fuel Induction
BMW engine management, BMS-K
Fuel Reserve
4 Litres / 1.0 US gal
Ignition
Digital engine management
Starter
Electric
EV Specifics
Battery Capacity
12 V / 14 Ah, maintenance-free
Drivetrain
Clutch
Single dry plate clutch, hydraulically
Final Drive
System Enclosed driveshaft with two universal joints
Final Drive Ratio
2.62:1
Gear Ratios
1st 2.28 / 2nd 1.58 / 3rd 1.26 / 4th 1.03 / 5th 0.90 / 6th 0.81:1
Transmission / Drive
6 Speed
Chassis
Frame Type
Three-section frame consisting of front and rear section, load bearing engine-gearbox unit
Suspension - Front
BMW Motorrad Telelever, stanchion diameter 35mm, central spring strut, rebound damping electronically adjustable with standard ESA
Suspension - Rear
Die-cast aluminium single-sided swinging arm with BMW Motorrad EVO-Paralever, spring preload hydraulically adjustable to continuously variable levels by means of electronically adjustable ESA, rebound damping with standard ESA
Steering Head Angle
63.8°
Trail
116 mm / 4.5 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
135 mm / 5.3 in
Electrical Systems
Alternator
Three-phase alternator 720 W
Wheels & Brakes
Brakes - Front
2 x 320mm Discs, 4 piston callipers
Brakes - Rear
Single 265mm disc, 2 piston caliper
Rims - Front
3.50 x 17
Rims - Rear
5.50 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/60 ZR17
Wheels
Cast aluminium
