Full Specifications
General
Year
2016
Make Model

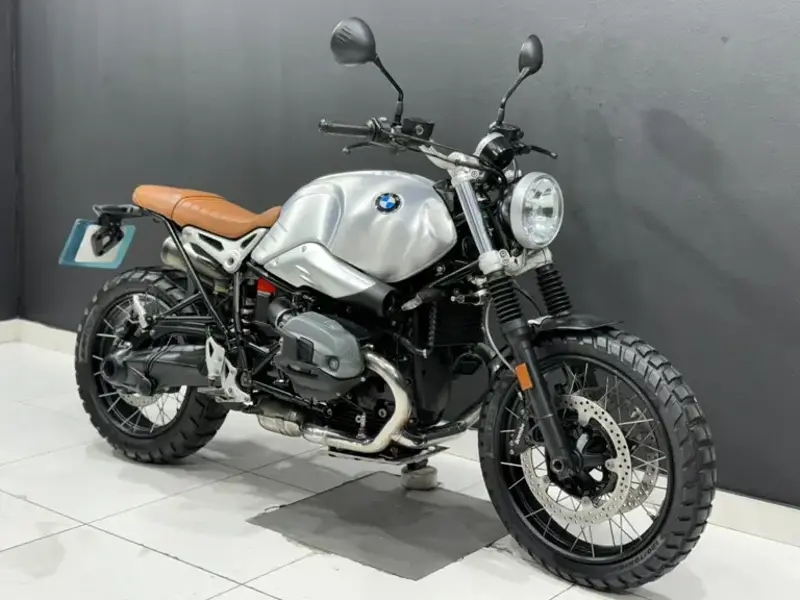

BMW R nine T Scrambler
Weights & Capacities
Fuel Capacity
17 L / 4.5 US gal
Wet Weight
220 kg / 485 lbs
Performance
Max Power
82 kW / 110 hp @ 7750 rpm
Max Torque
115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm
Engine
Displacement
1170 mm / 71.4 cu in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, central balancer shaft, Euro4 compliant
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Cooling System
Air/Oil cooled
Exhaust
Twin exhaust, high, vertically paired mufflers
Fuel Induction
Electronic intake pipe injection
Lubrication
Wet sump
Starter
Electric
Drivetrain
Clutch
Single dry plate clutch, hydraulically operated
Final Drive
Shaft
Transmission / Drive
Constant mesh 6-speed
Chassis
Frame Type
Modular frame with replaceable rear sub-frame
Suspension - Front
Right-way-up 43mm forks with gaiters
Suspension - Rear
Paralever single-sided swinging arm
Wheel Travel - Front
125 mm / 4.9"
Wheel Travel - Rear
125 mm / 4.9"
Wheels & Brakes
Brakes - Front
Dual 320 mm discs, 4 piston calipers
Brakes - Rear
Single 265 mm disc, 2 piston floating caliper
Tyres - Front
120/70-19
Tyres - Rear
170/60-17
Wheels - Front
Cast or cross-spoked
Wheels - Rear
Cast or cross-spoked
