Full Specifications
General
Year
2016 - 17
Make Model

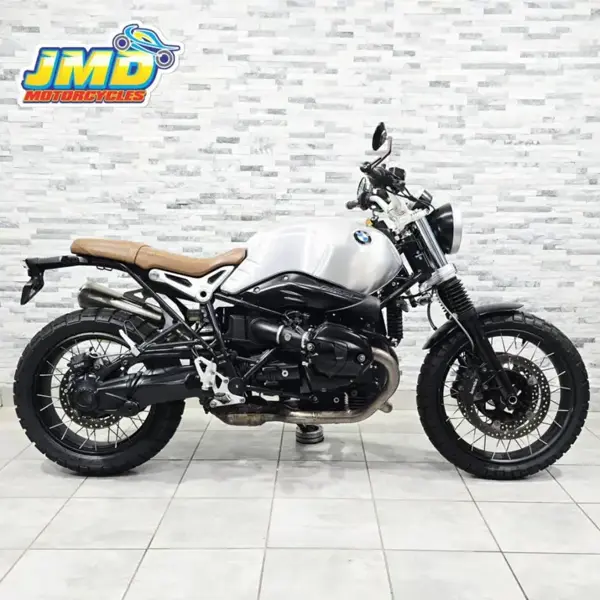

BMW R nineT
Dimensions
Seat Height
784.8 mm / 30.9 in Standard
Wheelbase
1470 mm / 58.1 in
Height
1265 mm / 59.8 in (excl. mirrors)
Length
2220 mm / 87.4 in
Seat Height (Inner Leg Curve)
1760.2 mm / 69.3 in Standard
Width
890 mm / 35.0 in (incl. mirrors)
Weights & Capacities
Fuel Capacity
18
Maximum Load / GVWR
430 kg / 948 lbs
Performance
Max Power
81 kW / 110 hp @ 7550 rpm
Max Torque
119 Nm / 12.1 kgf-m / 88 lb-ft @ 6000 rpm
Engine
Displacement
1170 cc / 71.4 cub in.
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Cooling System
Air/Oil cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-3
Fuel Reserve
3 Litres / 0.8 gal
Lubrication
Wet sump
Starter
Electric
EV Specifics
Battery Capacity
12 V / 14 Ah, maintenance-free
Drivetrain
Clutch
Single dry plate clutch, hydraulically operated
Final Drive
Shaft
Transmission / Drive
Constant mesh 6-speed
Chassis
Frame Type
Four-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use
Suspension - Front
Upside-Down telescopic fork with 46 mm diameter
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Steering Head Angle
64.5 °
Trail
102.5 mm / 4.04 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Wheels & Brakes
Brakes - Front
2 x ∅320mm floating brake discs, 4 piston radial calipers
Brakes - Rear
Single ∅265mm disc, 2 piston floating caliper
ABS
BMW Motorrad ABS
Tyres - Front
120/70 - ZR17
Tyres - Rear
180/55 - ZR17
Wheels - Front
3.50 x 17
Wheels - Rear
5.50 x 17
