Key Specifications
Engine
Four stroke, 90°°L°twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Power
98.5 kW / 134 hp @ 10000rpm
Torque
96 Nm / 9.8 kgf-m / 70.8 lb-ft / @ 8250rpm
Top Speed
257.8 km/h / 160.2 mph
Weight
168 kg / 370.4 lbs
Fuel Capacity
16 Litres / 4.2 US gal / 3.5 Imp gal
Advertisement

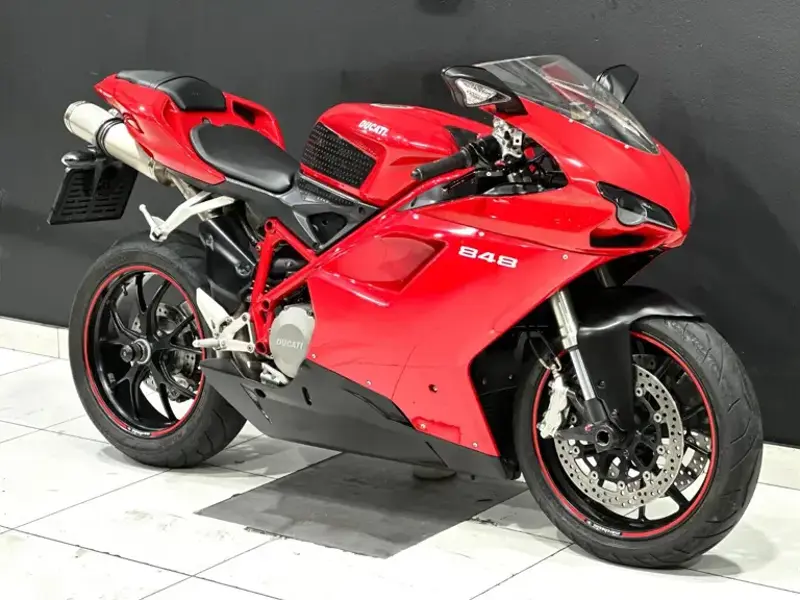

Full 2008 Ducati 848 Specifications
Year
2008
Make Model
Ducati 848
Seat Height
830 mm / 32.6 in
Wheelbase
1430 mm / 56.3 in
Height
1090 mm / 42.9 in
Length
2095 mm / 82.2 in
Dry Weight
168 kg / 370.4 lbs
Fuel Capacity
16 Litres / 4.2 US gal / 3.5 Imp gal
Displacement
848 cc / 51.7 cu in
Engine Detail
Four stroke, 90°°L°twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Bore x Stroke
94 x 61.2 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Engine Oil Specification
Semi-Synthetic, 10W/40
Exhaust
Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers.
Fuel Consumption
5.3 L/100 km / 18.9 km/l / 44.5 US mpg / 53.4 Imp mpg
Fuel Induction
Marelli electronic fuel injection, elliptical throttle bodies
Ignition
Digital CDI
Lubrication
Wet sump
Spark Plug
Champion, RA59GC
Starter
Electric
Clutch
Wet multiplate with hydraulic control
Final Drive
Chain
Gear Ratios
1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 23/24
Primary Drive
Straight cut gears, ratio 1.84:1
Transmission / Drive
6 Speed
Frame Type
Tubular steel trellis frame in ALS 450
Suspension - Front
Showa 43mm fully adjustable upside-down fork
Suspension - Rear
Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm.
Rake
24.5°
Trail
103 mm / 4.05 in
Wheel Travel - Front
127 mm / 5.0 in
Wheel Travel - Rear
130 mm / 5.1 in
Brakes - Front
2 x 320mm Disc, Brembo 4 piston calipers
Brakes - Rear
Single 245 mm disc, Brembo 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/50 ZR17
