Key Specifications
Engine
Four stroke, Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder,
Power
82.4 kW / 112 hp @ 9250 rpm
Torque
89.4 Nm / 9.1 kgf-m / 65.8 lb-ft @ 7750 rpm
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Advertisement

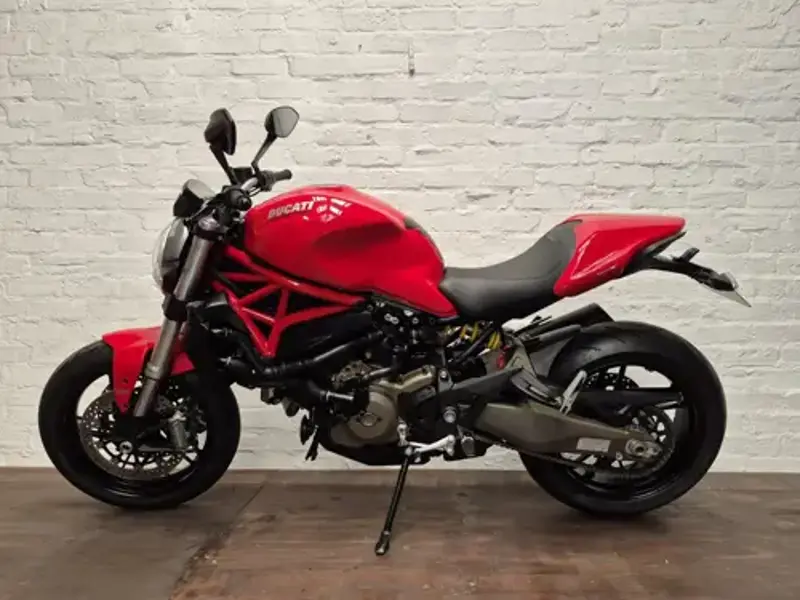

Full 2015 Ducati Monster 821 Specifications
Year
2014 - 15
Make Model
Ducati Monster 821
Seat Height
785 mm - 810 mm / 30.9 in - 31.9 in
Wheelbase
1480 mm / 58.3 in
Dry Weight
179.5kg / 395.7 lbs
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Wet Weight
205.5kg / 453 lbs
Displacement
821 cc / 50.1 cu-in
Engine Detail
Four stroke, Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder,
Bore x Stroke
88 x 67.5 mm
Compression Ratio
12.8:1
Cooling System
Liquid cooled
Exhaust
Stainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes
Fuel Induction
Electronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Ignition
Marelli electronic
Starter
Electric
Clutch
APTC multi-disc wet clutch with control cable
Final Drive
Chain, Front sprocket 15; Rear sprocket 46
Gear Ratios
1st 37/15 2nd 30/17 3rd 28/20 4th 26/22 5th 24/23 6th 23/24
Primary Drive
Straight cut gears, ratio 1.85:1
Transmission / Drive
6 Speed
Frame Type
Tubular steel Trellis frame attached to the cylinders head
Suspension - Front
Kayaba 43mm upside-down fork
Suspension - Rear
Progressive linkage with adjustable monoshock. Aluminum double-sided swingarm
Rake
24.3°
Trail
93.2mm / 3.7in
Wheel Travel - Front
130 mm / 5.1 in
Wheel Travel - Rear
140 mm / 5.5 in
Brakes - Front
2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, axial pump with ABS as standard
Brakes - Rear
Single 245mm disc, 2-piston floating calliper with ABS as standard equipment
Tyres - Front
120/70 ZR 17 Pirelli Diablo Rosso II
Tyres - Rear
180/60 ZR17 Pirelli Diablo Rosso II
Wheels - Front
10-spoke in light alloy, 3.50" x 17"
Wheels - Rear
10-spoke in light alloy, 5.50" x 17"
