Full Specifications
General
Year
2021
Make Model

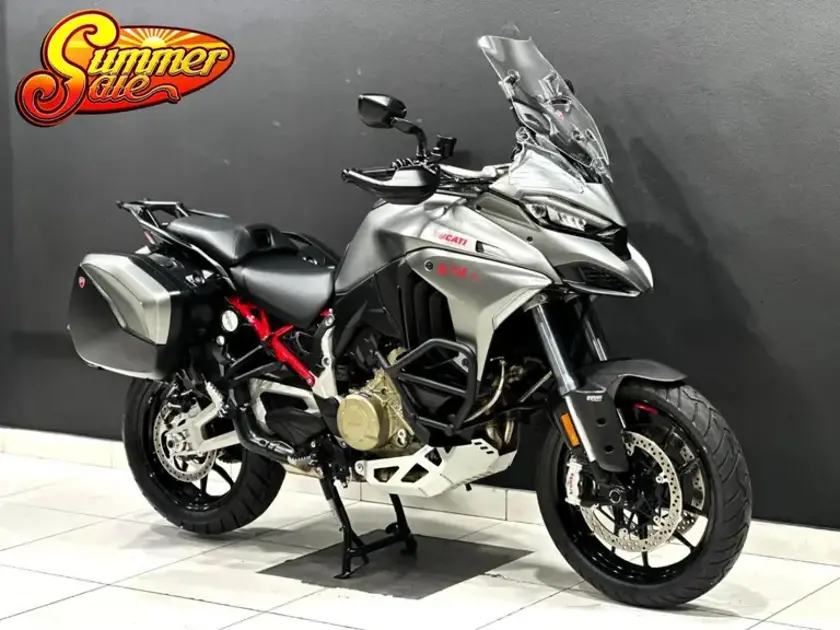

Multistrada V4S
Dimensions
Seat Height
840 mm - 860 mm / 33.1 in - 33.9 in - Adjustable
Wheelbase
1567 mm / 61.7 in
Ground Clearance
220 mm / 8.6 in
Weights & Capacities
Dry Weight
218 kg / 481 lbs
Fuel Capacity
22 Litres / 5.8 US gal
Wet Weight
243 kg / 536 lbs
Performance
Max Power
170 hp / 125 kW @ 10500 rpm
Max Torque
125 Nm / 92 lb-ft @ 8750 rpm
Engine
Displacement
1158 cc / 71 cu-in
Engine Detail
Four stroke, 90° Granturismo V 4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order
Bore x Stroke
83 x 53.5 mm
Compression Ratio
14.0:1
Cooling System
Liquid cooled
Emissions
Euro 5
Exhaust
Stainless steel muffler, double catalytic converter and 4 lambda probes
Fuel Induction
Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Starter
Electric
Drivetrain
Clutch
Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Final Drive
Chain, front sprocket z16, rear sprocket z42
Gear Ratios
1st 40/13, 2nd 36/16, 3rd 34/19, 4th 31/21, 5th 23/29, 6th 25/27
Primary Drive
Straight cut gears, ratio 1.8:1
Transmission / Drive
6-speed gearbox with Ducati Quick Shift (DQS) Up & Down System
Chassis
Frame Type
Aluminum monocoque frame
Suspension - Front
50 mm fully adjustable USD fork, electronic compression and rebound damping adjustment with Ducati Skyhook Suspension
Suspension - Rear
Fully adjustable monoshock, electronic adjustment with Ducati Skyhook Suspension, aluminum double-sided swingarm
Rake
24.5°
Trail
102.5 mm / 4.0 in
Wheel Travel - Front
170 mm / 6.7 in
Wheel Travel - Rear
180 mm / 7.1 in
Electronics
Equipment / Features
Ducati Skyhook Suspension, Ducati Quick Shift, Cruise control, Hands-free, Backlit handlebar switches, 6.5 in TFT color display with Ducati Connect and full-map navigation system, Full LED headlight
Safety Equipment
Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control
Electrical Systems
Instrumentation
6.5 in TFT color display with Ducati Connect and full-map navigation system
Wheels & Brakes
Brakes - Front
2x 330mm semi-floating discs, radially mounted Brembo M50 Stylema monobloc 4-piston 2-pad calipers, radial master cylinder
Brakes - Rear
Single 265mm disc, Brembo 2-piston floating caliper
ABS
Standard Cornering ABS
Rims - Front
3 x 19 in
Rims - Rear
4.5 x 17 in
Tyres - Front
120/70 ZR 19 Pirelli Scorpion Trail II
Tyres - Rear
170/60 ZR 17 Pirelli Scorpion Trail II
Wheels
Light alloy cast (Spoked optional)
