Full Specifications
General
Year
2021
Make Model

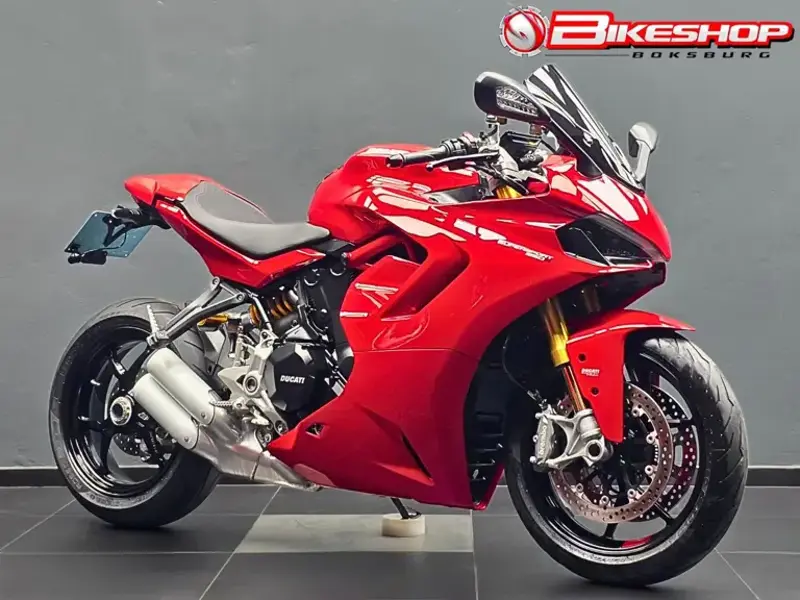

Ducati Supersport 950 S
Dimensions
Seat Height
810 mm / 31.9 in
Wheelbase
1478 mm / 58.3 in
Weights & Capacities
Dry Weight
184 kg / 405 lbs
Fuel Capacity
16 Litres / 4.2 US gal
Wet Weight
210 kg / 463 lbs
Performance
Max Power
81 kW / 110 hp @ 9000 rpm
Max Torque
93 Nm / 69 ft-lb @ 6500 rpm
Engine
Displacement
937 cc / 57.2 cu-in
Engine Detail
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic
Bore x Stroke
94 x 67.5 mm
Compression Ratio
12.6:1
Cooling System
Liquid cooled
Emissions
Euro 5
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Fuel Induction
Electronic fuel injection system, 53 mm throttle bodies with full Ride-by-Wire
Ignition
Electronic
Starter
Electric
Drivetrain
Clutch
Wet multiplate clutch, slipper and self-servo with hydraulic control. Self bleeding master cylinder
Final Drive
Chain, front sprocket 15, rear sprocket 43
Gear Ratios
1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22, 5th 24/23, 6th 23/24
Primary Drive
Straight cut gears; ratio 1.84:1
Transmission / Drive
6-Speed with Ducati Quick Shift (DQS) up/down EVO
Chassis
Frame Type
Tubular steel Trellis frame attached to the cylinders head
Suspension - Front
Fully adjustable 48 mm USD Öhlins fork with TiN treatment
Suspension - Rear
Progressive linkage with fully adjustable Öhlins monoshock. Aluminum single-sided swingarm.
Rake
24°
Trail
91 mm / 3.6 in
Wheel Travel - Front
130 mm / 5.1 in
Wheel Travel - Rear
144 mm / 5.7 in
Electronics
Equipment / Features
Power Modes, Day Time Running Light (DRL), Full-TFT color display, Adjustable windscreen, Öhlins suspension, Ducati Quick Shift (DQS) up/down EVO, Passenger seat cowl.
Optional Equipment
Anti-theft system, Heated grips, Ducati Multimedia System (DMS).
Safety Equipment
Riding Modes, ABS Bosch Cornering, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO.
Electrical Systems
Instrumentation
Full-TFT color display
Wheels & Brakes
Brakes - Front
2 x 320 mm Semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-piston, radial pump with Bosch Cornering ABS. Self bleeding master cylinder
Brakes - Rear
245 mm disc, 2-piston caliper, Bosch Cornering ABS
Tyres - Front
120/70 ZR17 Pirelli Diablo Rosso III
Tyres - Rear
180/55 ZR17 Pirelli Diablo Rosso III
Wheels
Y shaped, 3-spoke in light alloy
Wheels - Front
3.50 x 17
Wheels - Rear
5.50 x 17
