Key Specifications
Engine
Four stroke, V-Twin, Twin Cam 103° with integrated oil cooler
Torque
134 Nm / 98.8 ft-lb @ 3000 rpm
Weight
304.0 kg / 670 lbs
Fuel Capacity
17 8 Litres / 4.7 US gal
Advertisement

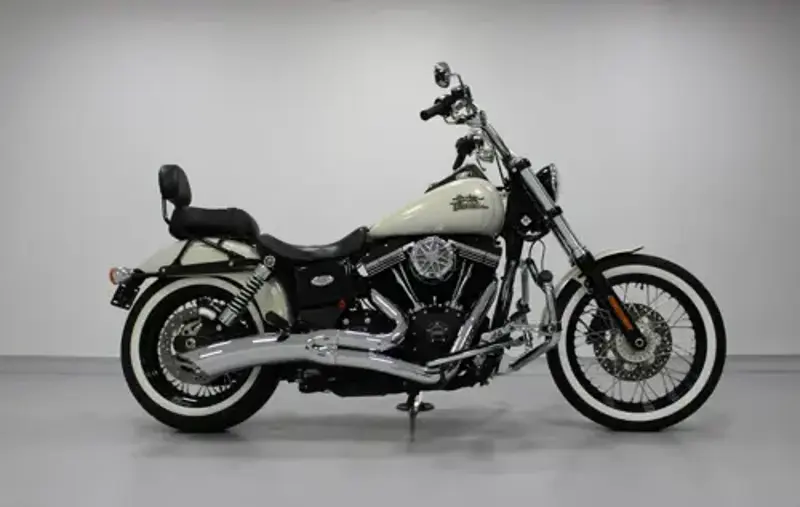

Full 2015 Harley-Davidson Dyna Street Bob Specifications
Year
2015
Make Model
Harley Davidson Dyna Street Bob
Seat Height
Laden 648 mm / 25.5 in. Unladen 678 mm / 26.7 in.
Wheelbase
1630 mm / 64.2 in
Length
2395 mm / 94.3 in
Fuel Capacity
17 8 Litres / 4.7 US gal
Maximum Load / GVWR
492.2 kg / 1085 lbs
Oil Capacity
2.8 Litres / 3.0 qts
Wet Weight
304.0 kg / 670 lbs
Displacement
1690 cc / 103.1 cu in
Engine Detail
Four stroke, V-Twin, Twin Cam 103° with integrated oil cooler
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Cooling System
Air cooled
Exhaust
Chrome, staggered, shorty exhaust with dual tapered mufflers
Fuel Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Single-fire, non-wasted, map-controlled spark ignition
Starter
Electric
Final Drive
Belt
Gear Ratios
1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Primary Drive
Chain, 34/46 ratio
Transmission / Drive
6 Speed
Frame Type
Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Suspension - Front
49 mm with polished aluminum fork triple clamp and dual-rate springs,
Suspension - Rear
Coil over shock ,
Rake
29°
Trail
120 mm / 4.7 in
Brakes - Front
Single 300mm disc 4 piston caliper
Brakes - Rear
Single 292mm disc 2 piston caliper
Tyres - Front
100/90-19 57H
Tyres - Rear
160/70-17 73V
Wheels - Front
Black Steel Laced
Wheels - Rear
Black Steel Laced
