Key Specifications
Torque
96.00 Nm (9.8 kgf-m or 70.8 ft.lbs) @ 5750 Revolutions
Weight
259.9 kg / 573.0 lbs
Fuel Capacity
7.90 litres / 2.09 gallons
Advertisement

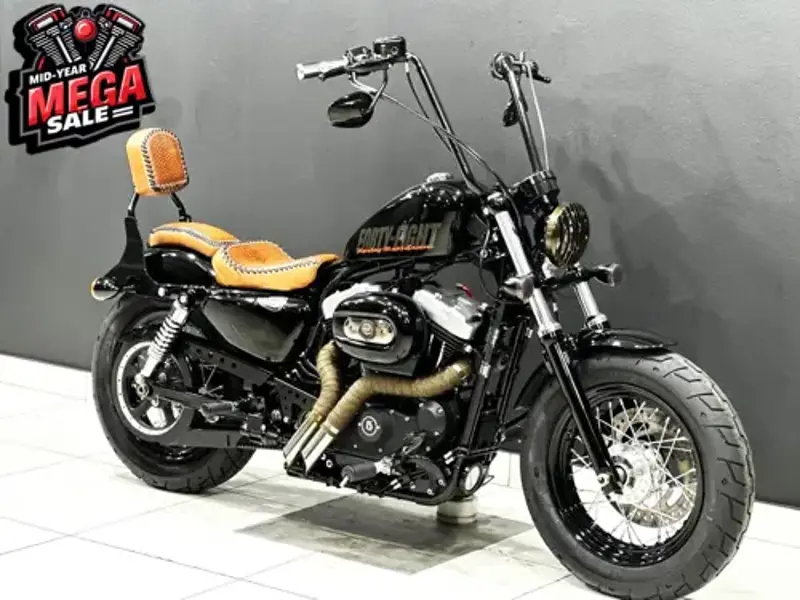

Full 2015 Harley-Davidson Sportster Forty-Eight Specifications
Colours
Hard Candy Big Red Flake, Hard Candy Cancun Blue Flake, Vivid Black, Amber Whiskey, Charcoal Pearl
Ground Clearance (in.)
3.9 inches
Ground Clearance (mm)
99 mm
Seat Height
660 mm / 26.0 in.
Wheelbase
1,519 mm / 59.8 in.
Length
2,250 mm / 88.6 in.
Oil Capacity (l)
2.60 litres
Oil Capacity (Quarts)
0.17 quarts
Dry Weight
250.8 kg / 553.0 lbs
Fuel Capacity
7.90 litres / 2.09 gallons
Wet Weight
259.9 kg / 573.0 lbs
Bore x Stroke (in,)
3.5 x 3.8 inches
Bore x Stroke (mm)
88.9 x 96.8 mm
CO2
113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Engine Type
V2, four-stroke
Engine Detail
Air-cooled, Evolution®
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio
9.7:1
Engine Lubrication
Dry sump
Exhaust
Chrome, staggered shorty exhaust with dual slash-cut mufflers
Fuel Consumption
4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Starter
Electric
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Primary Drive
57/38 ratio
Instrumentation
4-inch Speedometer mounted low and integrated into handlebar clamp electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, LED indicator lights
Lighting system
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
Brakes - Front
Single disc. Dual-piston. Optional ABS.
Brakes - Rear
Single disc. Single-piston. Optional ABS.
Rims
Black, Laced Steel
Tyres - Front
150/80-16
Tyres - Rear
150/80-B16
