Key Specifications
Torque
60.34 Nm (6.2 kgf-m or 44.5 ft.lbs) @ 4000 Revolutions
Weight
221.8 kg / 489.0 lbs
Fuel Capacity
13.25 litres / 3.50 gallons
Advertisement

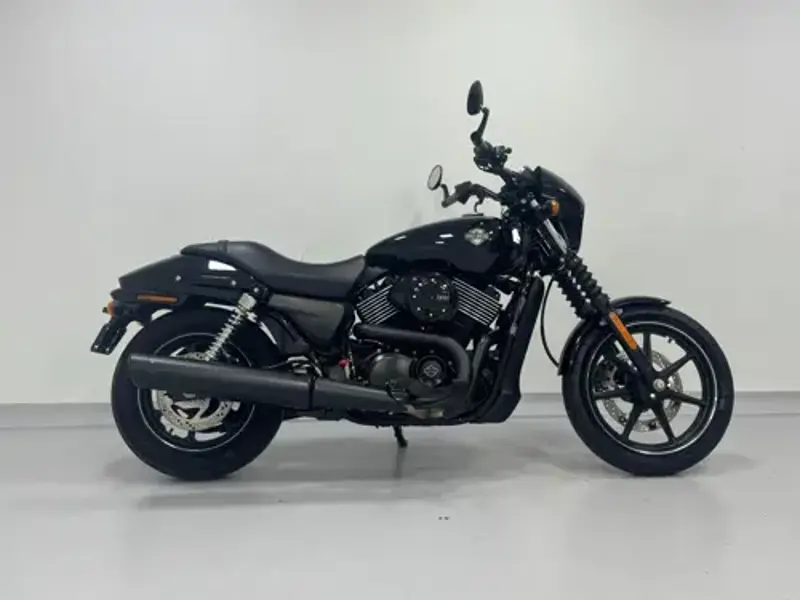

Full 2015 Harley-Davidson Street 750 Specifications
Colours
Mysterious Red Sunglo, Vivid Black, Black Denim
Seat Height
653 mm / 25.7 in.
Wheelbase
1,534 mm / 60.4 in.
Length
2,225 mm / 87.6 in.
Oil Capacity (l)
3.10 litres
Oil Capacity (Quarts)
0.20 quarts
Dry Weight
206.4 kg / 455.0 lbs
Fuel Capacity
13.25 litres / 3.50 gallons
Wet Weight
221.8 kg / 489.0 lbs
Bore x Stroke (in,)
3.4 x 2.6 inches
Bore x Stroke (mm)
85.1 x 66.0 mm
CO2
109.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Engine Type
V2, four-stroke
Engine Detail
Liquid-cooled, Revolution X? V-Twin
Fuel System
Injection. Mikuni Single Port Fuel Injection, 38 mm bore
Compression Ratio
11.0:1
Exhaust
Black Two- into-one exhaust
Fuel Consumption
4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Starter
Electric
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Primary Drive
Gear, 36/68 ratio primary drive
Rake
32.0°
Trail
114 mm / 4.5 in.
Instrumentation
3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
Lighting system
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
Brakes - Front
Single disc
Brakes - Rear
Single disc
Rims
Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Tyres - Front
100/80-R17
Tyres - Rear
140/75-R15
