Key Specifications
Engine
Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Torque
96 Nm / 9.8 kgf-m / 70.8 ft/lbs @ 3750 rpm
Fuel Capacity
17 Litres / US 4.5 gal
Advertisement

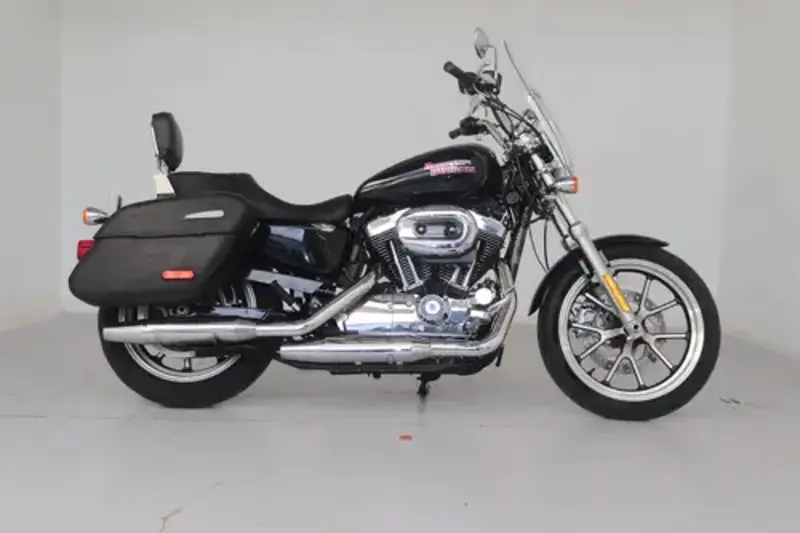

Full 2015 Harley-Davidson XL 1200T Superlow Specifications
Year
2015
Make Model
Harley Davidson XL 1200T Superlow
Seat Height
Laden 663.7 mm / 26.1 in Unladen 705.0 mm / 27.8 in
Wheelbase
1500 / 59.0 in
Ground Clearance
95 mm / 3.7 in
Length
2210 mm / 87.0 in
Dry Weight
263 kg / 580 lb.s
Fuel Capacity
17 Litres / US 4.5 gal
Oil Capacity
2.6 Litres / 2.7 US qrts
Wet Weight
274 kg / 604 lb.s
Displacement
1202 cc / 73.4 cub in.
Engine Detail
Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Bore x Stroke
88.9 x 96.8 mm
Compression Ratio
10.0:1
Cooling System
Air cooled
Exhaust
Closed loop exhaust system
Fuel Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Digital CDI
Starter
Electric
Final Drive
Belt
Gear Ratios
1st 9.004 / 2nd 6.432 / 3rd 4.783 / 4th 3.965 / 5th 3.400:1
Primary Drive
Chain, 38/57 ratio
Transmission / Drive
5 Speed
Frame Type
Mild steel, tubular frame; circular sections; cast junctions Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Suspension - Front
39 mm Forks
Suspension - Rear
Coil-over, dual-adjustable preload
Lean Angle
26°
Rake
31.1°
Trail
145 mm / 5.7 in
Brakes - Front
Single 292 mm disc, 2 piston caliper
Brakes - Rear
Single 292mm disc, 1 piston caliper
Tyres - Front
120/70 ZR-18 59W
Tyres - Rear
150/70 ZR-17 69W
Wheels - Front
Black/Silver, split 5-spoke cast aluminum
Wheels - Rear
Black/Silver, split 5-spoke cast aluminum
