Key Specifications
Torque
43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 6500 Revolutions">RPM
Fuel Capacity
4.62 US gallons
Advertisement

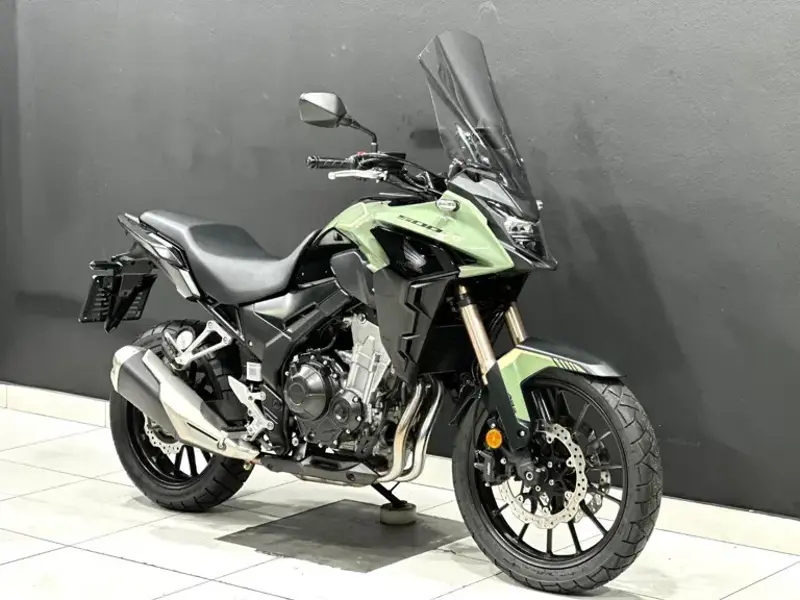

Full 2023 Honda CB 500X Specifications
Comments
Model ID: CB500XA. Windscreen.
Colours
Pearl Organic Green
Warranty
One year. Transferable. Unlimited-mileage.
Width (mm)
826 mm
Width (in.)
32.5 inches
Wheelbase (mm)
1443 mm
Wheelbase (in.)
56.8 inches
Ground Clearance (in.)
7.1 inches
Ground Clearance (mm)
180 mm
Height (in.)
53.5 inches
Height (mm)
1358 mm
Storage
Seat Heigth -Alternate (mm)
Seat Heigth -Alternate (in.)
Seat Height (mm)
833 mm
Seat Height (in.)
32.8 inches
Length (in.)
84.8 inches
Length (mm)
2155 mm
Dry Weight (kg)
Dry Weight (lbs.)
Wet Weight (lbs.)
438.7 pounds
Wet Weight (kg)
199.0 kg
Fuel Capacity (gal.)
4.62 US gallons
Fuel Capacity (l)
17.50 litres
Weight balance - Rear
Weight balance - Front
Oil Capacity (Quarts)
3.38 US quarts
Oil Capacity (l)
3.20 litres
Coolant Capacity
Stroke
Fuel Reserve (l)
Fuel Reserve (gal.)
Bore x Stroke (in,)
2.6 x 2.6 inches
Bore x Stroke (mm)
67.0 x 66.8 mm
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Twin, four-stroke
CO2
83.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
471.0 cc
Displacement (ci)
28.74 cubic inches
Engine Detail
Fuel System
Injection. PGM-FI with 34mm throttle bodies
Compression Ratio
10.7:1
Emissions
Euro 5. Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.
Engine Lubrication
Exhaust
Fuel Consumption
3.60 litres/100 km (27.8 km/l or 65.34 mpg)
Idle Speed
Ignition
Computer-controlled digital transistorized with electronic advance
Oil Filtration
Spark Plug
Starter
Electric
Valve System
4
Chain Size
520
Clutch
Wet multiplate
Final Drive
Chain (final drive)
Gearbox
6-speed
Number of Chain Links
112
Primary Drive
520 O-ring-sealed chain; 15T/41T
Sprocket
Sprocket
15/41 (front/rear)
Fork Tube Size (in.)
Fork Tube Size (mm)
Wheel Travel - Rear (mm)
135 mm
Wheel Travel - Rear (in.)
5.3 inches
Wheel Travel - Front (mm)
150 mm
Wheel Travel - Front (mm)
Wheel Travel - Front (in.)
5.9 inches
Wheel Travel - Front (in.)
Trail (mm)
108 mm
Trail (in.)
4.3 inches
Frame Type
Diamond, steel.
Suspension - Front
41mm telescopic fork
Suspension - Rear
Pro-Link® single shock with nine-position spring preload adjustability
Rake
27.5°
Seat
Instrumentation
LCD Meter with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator
Lighting system
LED lights
Brakes - Front Diameter (in.)
Brakes - Front Diameter (mm)
Brakes - Rear Diameter (in.)
Brakes - Rear Diameter (mm)
Brakes - Front
Double disc. ABS. Wave disc. 4-piston calipers.
Brakes - Rear
Single disc. ABS. Wave disc.
Brake Fluid Type
Rims
Multi-spoke cast aluminium
Tyre Pressure - Front
Tyre Pressure - Rear
Tyres - Front
Tyres - Front
110/80-19
Tyres - Rear
Tyres - Rear
