Full Specifications
General
Year
2013
Make Model

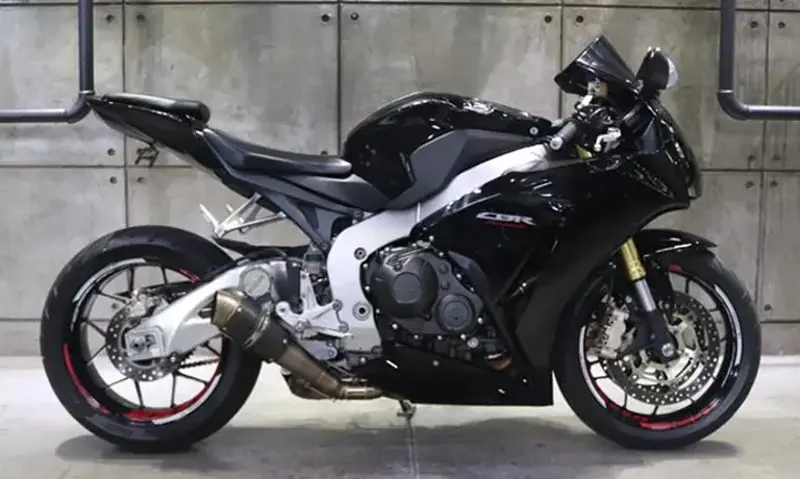

Honda CBR 1000RR Fireblade
Dimensions
Seat Height
820 mm / 32.3 in
Wheelbase
1407 mm / 55.4 in
Height
1135 mm / 46.5 in
Length
685 mm / 26.9 in
Turning Circle
3.2 m
Width
685 mm / 26.9 in
Weights & Capacities
Dry Weight
173 kg / 381.3 lbs
Fuel Capacity
17.7 Liters / 4.7 gal
Wet Weight
195 kg / 430 lbs (209 kg / 461.7 lbs C-ABS)
Performance
Top Speed
287.1 km/h / 178.3 mph
Max Power
175.6 hp / 131.0 kW @ 12000 rpm
Max Torque
115 Nm / 11.73 kg-m @ 8500 rpm
Standing Start ¼ Mile
10.3 sec
Engine
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
76 x 55.1 mm
Compression Ratio
12.3:1
Cooling System
Liquid cooling
Engine Oil Specification
Synthetic, 10W/40
Fuel Induction
PGM-DSFI electronic fuel injection 46mm Throttle Bore
Fuel Reserve
4 Litres
Ignition
Computer-controlled digital transistorised with electronic advance
Lubrication
Wet sump
Spark Plug
NGK, IMR9C-9HES
Starter
Electric
Drivetrain
Clutch
Wet, multiplate with diaphragm spring
Final Drive
#530 O-ring - sealed chain
Gear Ratios
1st 2.286 (32/14) / 2nd 1.778 (32/18) / 3rd 1.500 (33/22) / 4th 1.333 (32/24) / 5th 1.214 (34/28) / 6th1.138 (33/29)
Transmission / Drive
6 Speed
Chassis
Frame Type
Diamond; aluminium composite twin-spar
Suspension - Front
43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment,
Suspension - Rear
Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment,
Rake
23.3°
Trail
96.2 mm / 3.8 in
Wheel Travel - Front
120 mm / 4.3 in
Wheel Travel - Rear
135 mm / 5.4 in
Wheels & Brakes
Brakes - Front
2x 320mm discs 4 piston calipers, Combined ABS and sintered metal pads
Brakes - Rear
Single 220mm disc, Combined ABS and sintered metal pads
Tyres - Front
120/70ZR-17
Tyres - Rear
190/50ZR-17
Wheels - Front
17 x MT3.50
Wheels - Rear
17 x MT6.00
