Key Specifications
Engine
Four stroke , Parallel twin, SOHC, 4 valves per cylinder
Power
40.3 kW / 54 hp @ 6250 rpm
Torque
68 Nm / 50.8 lb-ft@ 4750 rpm
Fuel Capacity
14.1 Litres / 3.7 US gal
Advertisement

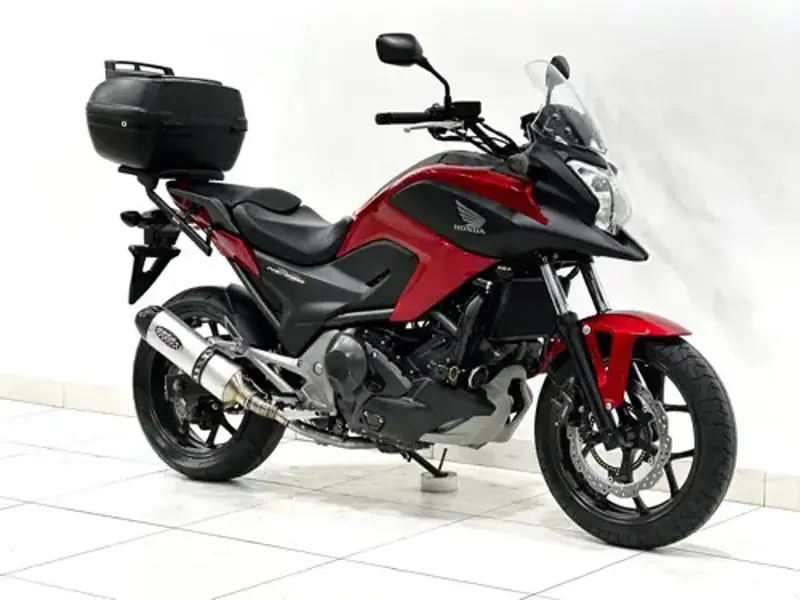

Full 2015 Honda NC 750X / DCT Specifications
Year
2014-15
Make Model
Honda NC 750X / DCT
Seat Height
790 mm (Europe) - 775 mm (Japan)
Wheelbase
1540 mm / 60.6 in
Ground Clearance
165 mm / 6.5 in
Height
1285 mm / 50.6 in
Length
2210 mm / 87.0 in
Width
830 mm / 32.7 in
Fuel Capacity
14.1 Litres / 3.7 US gal
Wet Weight
218 kg / 480.6 in
Displacement
745 cc / 45.4 cu-in
Engine Detail
Four stroke , Parallel twin, SOHC, 4 valves per cylinder
Bore x Stroke
77 x 80mm
Compression Ratio
10.7:1
Cooling System
Liquid-cooled
Fuel Induction
PGM-FI electronic fuel injection
Ignition
Computer-controlled digital transistorised with electronic advance
Starter
Electric
Clutch
Wet multiplate hydraulic 2-clutch
Final Drive
Chain
Final Drive Ratio
2.687 (DCT 2.437)
Gear Ratios
1 2.812 (DCT 2.666) 2 1.894 (DCT 1.904) 3 1.454 (DCT 1.454) 4 1.200 (DCT 1.200) 5 1.033 (DCT 1.033) 6 0.837 (DCT 0.837)
Transmission / Drive
6 Speed Manual
Transmission / Drive
6-Speed Dual Clutch Transmission
Frame Type
Rigid tube steel diamond
Suspension - Front
41 mm telescopic forks
Suspension - Rear
Single monoshock damper
Rake
27˚
Trail
110 mm / 4.3 IN
Wheel Travel - Front
153 mm / 6.0 in
Wheel Travel - Rear
150 mm / 5.9 in
Brakes - Front
Single 320 mm hydraulic disc 3 piston calipers and sintered metal pads
Brakes - Rear
Single 240 mm hydraulic disc 1 piston caliper and sintered metal pads
Tyres - Front
120/70-ZR17
Tyres - Rear
160/60-ZR17
