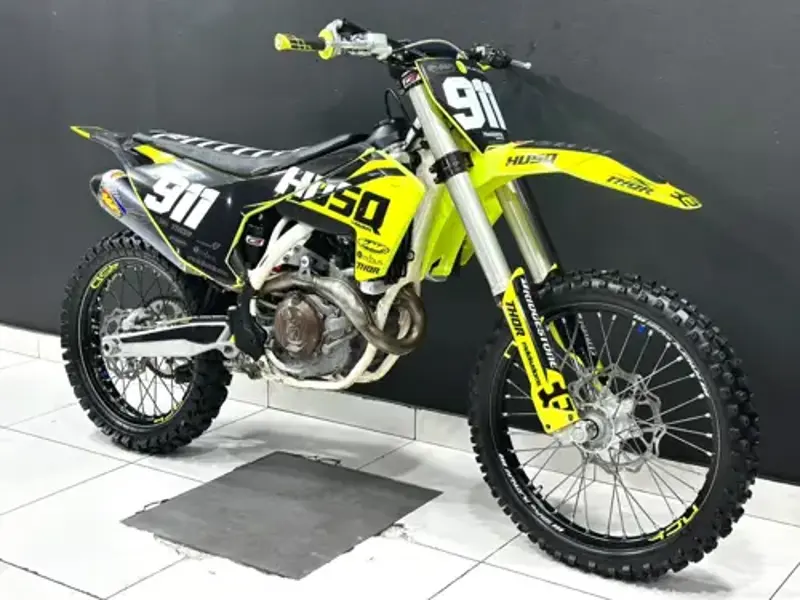

2016 Husqvarna FC450 Overview
The 2016 Husqvarna FC450 is a cross / motocross motorcycle built around 449.30 cc of displacement. Under the tank sits a Single cylinder, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation. The bore and stroke measures 95 x 63.4 mm. From a practical standpoint, the 2016 FC450 tips the scales at 102.4 kg, carries a 7-litre fuel tank, offers a seat height of 960 mm and spans a 1,485 mm wheelbase. Scroll down for the complete 2016 Husqvarna FC450 spec sheet covering every technical detail from suspension travel to tyre sizes.
2016 FC450 - Pros & Cons
Strengths
-
✓
Factory engineering: The 2016 Husqvarna FC450 represents Husqvarna's engineering at the time, with a specification built around real-world usability.
Considerations
-
📏
Tall seat height: The 960 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
Owner Experiences & Common Issues
Valve clearance checks
Double Overhead Cams/Twin Cam (DOHC) engines should have valve clearances checked at the manufacturer's specified interval. Owners report that clearances can tighten over time on higher-mileage bikes, leading to slight ticking from the top end. Catching it early keeps the job simple and avoids more costly remediation.
FC450 - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2016 Husqvarna FC450, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained FC450 should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any FC450. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Valve clearance service
Check that valve clearances have been adjusted at the correct intervals on any used FC450. This is a job many owners skip because the bike does not immediately feel wrong - but tight clearances accelerate valve seat wear. Ask for proof it has been done.
2016 Husqvarna FC450 - Frequently Asked Questions
What engine does the 2016 Husqvarna FC450 have?
The 2016 Husqvarna FC450 uses a Single cylinder, four-stroke engine with 449.30 cc of displacement.
How much does the 2016 Husqvarna FC450 weigh?
The 2016 Husqvarna FC450 weighs 102.4 kg. This is the manufacturer's dry figure.
What is the fuel tank capacity of the 2016 Husqvarna FC450?
The 2016 Husqvarna FC450 has a 7-litre fuel tank.
Is the 2016 Husqvarna FC450 suitable for shorter riders?
The 2016 Husqvarna FC450 has a seat height of 960 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2016 Husqvarna FC450 have?
The 2016 Husqvarna FC450 uses Single disc. Four-pot brake caliper at the front and Single disc. One-pot brake caliper, floating disc at the rear.
What tyre sizes does the 2016 Husqvarna FC450 use?
The 2016 Husqvarna FC450 runs 90/90-21 front and 140/90-18 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What suspension does the 2016 Husqvarna FC450 have?
The 2016 Husqvarna FC450 uses WP USD ? 48 mm 4CS closed cartridge up front and WP shock absorber with linkage at the rear.
Husqvarna FC450 Spec Evolution
The Husqvarna FC450 was produced across 8 model years (2014-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2014 |
2016 |
2017 |
2018 |
2019 |
2021 |
2022 |
2023 |
| Dry Weight |
107.6 kg / 237.2 lbs |
102.4 kg / 225.8 lbs |
101.2 kg / 223.1 lbs |
101.2 kg / 223.1 lbs |
101 kg / 222.7 lbs |
101 kg / 222.7 lbs |
101 kg / 222.7 lbs |
102.8 kg / 226.6 lbs |
| Seat Height |
992 mm / 39.1 in. |
960 mm / 37.8 in. |
960 mm / 37.8 in. |
960 mm / 37.8 in. |
950 mm / 37.4 in. |
940 mm / 37.0 in. |
940 mm / 37.0 in. |
939 mm / 37.0 in. |
| Fuel Capacity |
7.50 litres / 1.98 gallons |
7.00 litres / 1.85 gallons |
7.00 litres / 1.85 gallons |
7.00 litres / 1.85 gallons |
7.00 litres / 1.85 US gallons |
7.00 litres / 1.85 US gallons |
7.00 litres / 1.85 US gallons |
7.20 litres / 1.90 US gallons |
| Ground Clearance (mm) |
371 mm |
370 mm |
370 mm |
370 mm |
370 mm |
370 mm |
370 mm |
336 mm |
| Ground Clearance (in.) |
14.6 inches |
14.6 inches |
14.6 inches |
14.6 inches |
14.6 inches |
14.6 inches |
14.6 inches |
13.2 inches |
| Fuel Control |
DOHC |
Double Overhead Cams/Twin Cam (DOHC) |
Single Overhead Cams (SOHC) |
Single Overhead Cams (SOHC) |
Single Overhead Cams (SOHC) |
Single Overhead Cams (SOHC) |
Single Overhead Cams (SOHC) |
Single Overhead Cams (SOHC) |
| Displacement (ci) |
27.42 cubic inches |
27.42 cubic inches |
27.42 cubic inches |
27.42 cubic inches |
27.45 cubic inches |
27.45 cubic inches |
27.45 cubic inches |
27.45 cubic inches |
| Displacement (cc) |
449.30 cc |
449.30 cc |
449.30 cc |
449.30 cc |
449.9 cc |
449.9 cc |
449.9 cc |
449.9 cc |
Key Specifications
Engine
Single cylinder, four-stroke
Weight
102.4 kg / 225.8 lbs
Fuel Capacity
7.00 litres / 1.85 gallons
Advertisement
Full 2016 Husqvarna FC450 Specifications
Colours
Blue/yellow/white
Warranty
2 Years
Ground Clearance (in.)
14.6 inches
Ground Clearance (mm)
370 mm
Seat Height
960 mm / 37.8 in.
Wheelbase
1,485 mm / 58.5 in.
Dry Weight
102.4 kg / 225.8 lbs
Fuel Capacity
7.00 litres / 1.85 gallons
Bore x Stroke (in,)
3.7 x 2.5 inches
Bore x Stroke (mm)
95.0 x 63.4 mm
Displacement (cc)
449.30 cc
Displacement (ci)
27.42 cubic inches
Engine Type
Single cylinder, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Ignition
Keihin EMS
Starter
Electric
Clutch
Wet, multi-disc clutch, Magura hydraulics
Final Drive
Chain
Gearbox
5-speed
Primary Drive
520 X-Ring chain
Frame Type
25CrMo4 steel central-tube
Suspension - Front
WP USD ? 48 mm 4CS closed cartridge
Suspension - Rear
WP shock absorber with linkage
Rake
26.5°
Wheel Travel - Front
300 mm / 11.8 in.
Wheel Travel - Rear
300 mm / 11.8 in.
Brakes - Front Diameter (in.)
10.2 inches
Brakes - Front Diameter (mm)
260 mm
Brakes - Rear Diameter (in.)
7.9 inches
Brakes - Rear Diameter (mm)
200 mm
Brakes - Front
Single disc. Four-pot brake caliper
Brakes - Rear
Single disc. One-pot brake caliper, floating disc
Tyres - Front
90/90-21
Tyres - Rear
140/90-18
